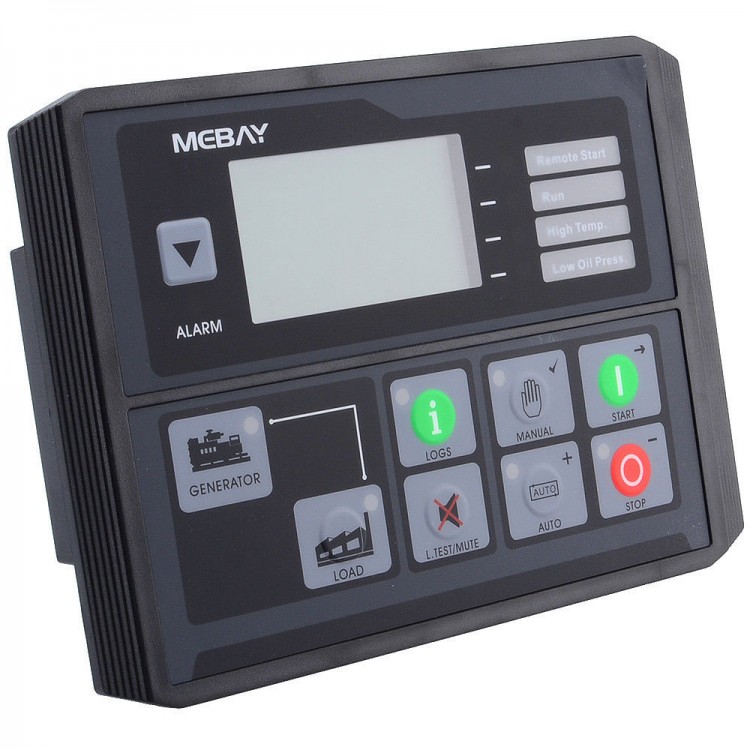

 Genset Controller DC4XD MK3 Series

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.
The controller has a 3 inch large screen point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Features:

There are four Models under DC4xD MK3 series.
DC40D MK3: used for single machine automation. Start/Stop through remote start signal.
DC42D MK3:Based on DC40D, it adds Mains monitoring and AMF (Mains/Generator automatic switching control ) , especially suitable for the automation system composed by mains and genset.
DC40DR MK3: Based on DC40D, it adds Rs485 port and CAN port.
DC42DR MK3: Based on DC42D, it adds Rs485 port and CAN port.

Main Features:

    32 units Micro-procession technology is used.
    3 inches 128*64 LCD display with backlight, option language interface(Chinese/English), user’s language set if necessary.
    Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
    Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen
    Gather and display various engine and generator’s parameters. Adapt to 3P4W,1P2W,2P3W (120V/240V,50/60HZ)
    Sensor can be self-defined by front face button or PC software.
    With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
    CAN communication port, J1939 protocol inside.
    Input/output function, status can be shown directly.
    More categories of surface setting.
    Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
    Countdown function, which can set the maintenance time or date.
    Records function: relative faults shall be recorded in real time.
    Totally 6 relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 20 functions, besides, there are 4 groups as non-contact terminals.
    5 relays can be set as switch value input, and each can be set as max 10 functions.
    3 sensor simulation input connectors, 5 input types is configurable and various kinds of units can be set.
    Standard water-proof rubber gasket. The waterproof can reach IP54
    Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.

Parameters Display

    Engine RPM
    Engine oil pressure
    Engine water temperature
    Engine oil temperature
    Engine cylinder temperature
    Engine fuel level
    Engine battery voltage
    charging voltage
    Mains Frequency (only for DC42D/DC42DR)
    Mains phase voltage L-N(only for DC42D/DC42DR)
    Mains phase voltage L-L(only for DC42D/DC42DR)
    Generator 3 Phase voltage L-N
    Generator 3 Phase voltage L-L
    Generator 3 phase current A
    Generator Frequency Hz
    Generator Power Factor COSφ
    Generator active power KW
    Generator apparent power KVA
    Generator reactive power KVar
    Current consumption Kwh
    Total consumption Kwh
    Total Crank times
    Current running time
    Total running time
    Maintenance notice
    Current date / time


Protection:

    over speed
    under speed
    Low oil pressure
    High water temperature
    High Oil temperature
    High Cylinder Temperature
    Low fuel level
    Low oil level
    External emergency alarm
    RPM Lost
    Sensor Open
    Over Frequency
    Under Frequency
    Over voltage
    under voltage
    over current
    Non-balance of current
    Over power
    Lack of Phase
    Maintenance expire ECU
    ECU alarm failure
    ECU communication Failure
    Low water level alarm
    Emergency Stop
    Crank failure
    Over battery voltage
    Under Battery voltage
    Charging failure
    Stop Failure

Options

Parameters

Working voltage

DC8V----36V Continuous

Power consumption

Standby：24V：MAX 1W

Working：24V：MAX 5W

AC Voltage Input

1P2W 50VAC-276VAC(ph-N)

2P3W 50VAC-276VAC(ph-N)

3P4W 50VAC-276VAC(ph-N)

Rotate speed sensor Frequency

50-9000Hz

MAX Accumulating Time

99999.9Hours（Min Store time:6min）

Fuel Relay Output

5Amp DC+VE Supply voltage

Start Relay Output

5Amp DC+VE Supply voltage

Programmable Relay output 1

5Amp DC+VE Supply voltage

Programmable Relay output 2

5AMP Non-contact-Normal open--Normal close output

Programmable Relay output 3

5AMP Non-contact Normal Open output

Programmable Relay output 4

5AMP Non-contact normal open output

Excitation output

Max 1AMP DC+VE supply voltage

Switch value input

Available if connecting with Battery -

Working condition

-20-65℃

Storage condition

-40-85℃

Protection Level

IP54：when waterproof rubber gasket is added between controller and its panel

Overall dimension

189mm*134mm

Panel cutout

160mm*120mm

Weight

0.68Kg

Package include:
- 1 x DC40D Generator Control Module
- 1 x User manual in English
-  4 x Screw
