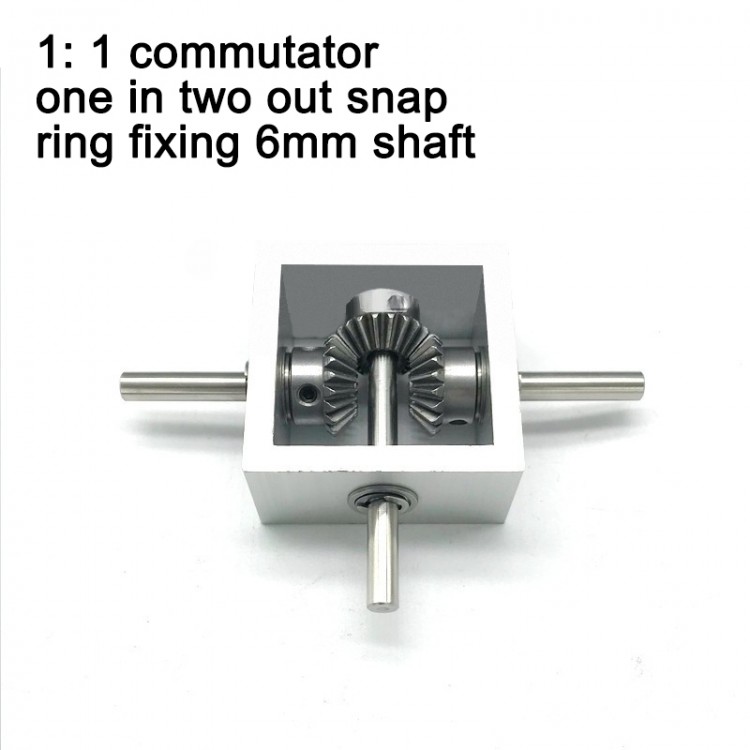

• 90-Degree Bevel Gearbox 1:1 Bevel Gear Module with 6MM Shaft One IN Two OUT Circlip Fixed

90-Degree Bevel Gearbox 1:1 Bevel Gear Module with 6MM Shaft One IN Two OUT Circlip Fixed

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.50
  • Price in reward points: 285 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.93 $27.36 $26.51 $25.37 Contact US
Quantity:

90-Degree Bevel Gearbox 1:1 Bevel Gear Module with 6MM Shaft One IN Two OUT Circlip Fixed

Read before Purchasing:

- Due to Aluminum alloy processing, punching and cutting may produce scratches that do not affect use. Please make sure that you don't mind before purchasing.
- This product has no fixed mounting holes, you need to punch holes and fix it by yourselves, and there is no cover on the top and bottom.
- It is a simple model and cannot be used for high-speed operation. It should be used in places where accuracy is not high.

Bevel Gear Parameters:
- Modulus: 1
- Number of teeth: 20
- Inner hole: 6mm
- Outer diameter: 21 mm
- Step outer diameter: 16 mm
- Tooth length: 7 mm
- Overall length: 13.2 mm
- Fixing screw hole: M4*2 fixing screw hole
- Material: S45C carbon steel
- Frame material: aluminum alloy
- Installation center distance: 18mm
- Net weight: 0.17kg

Package Included:
- 1 x Bevel Gear
