Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $303.05 | $296.86 | $287.58 | $275.21 | Contact US |
900D Optical Fiber Tester OTDR Optical Time Domain Reflectometer 800NM-1700NM 500M-60KM With OPM VFL
Features:
- 9 functions: OTDR, event mapping, optical power meter, LED light, stable light source, network cable sequence test, VLF red light source, RJ45 line tracking, network cable length test
- Universal FC/SC interfaces: Can be replaced with different connectors. Simple and clear to operate (with SC and FC connectors, no need to purchase separately)
- 3M short blind zone, 500M~60KM test distance
- Four types of events: Reflective event, non-reflective event, fiber splitter, fiber end (Attention: please not perform live fiber test for this function)
- OPM high-precision optical power meter can identify and measure the frequency of 4 kinds of frequency optical signals. Frequencies are 270Hz, 330Hz, 1KHz, and 2KHz
- Wavelength range is 800nm-1700nm. Power range -50 to +26dBm
Details of Functions:
- VFL visual fault locator
- Stable laser light source with five working modes: CW, 270Hz, 330Hz, 1KHz, and 2KHz
- RJ45 pairing function. Hidden design RJ45 remote
- RJ45 wire track/length measurement: After the wire tracking function is activated, it is used to hunt the remote cable under test. When you hear a continuous DiDiDiDi sound, it is the cable being searched
- LED light for illumination at night
- Internal 4000ma lithium battery, ordinary USB interface
Technical Parameters:
- Product model: 900D
- Test wavelength: 1310nm/1550nm±20nm
- Fiber type: G.652 single-mode fiber
- Dynamic range: 24dB/22dB
- Event dead zone: 3m
- Attenuation dead zone: 8m
- Measuring range: 500m~60km
- Pulse width: 3ns~10us
- Ranging accuracy: ±(1m + sampling interval + 0.005% x test distance)
- Linearity: ±0.2dB/dB
- Number of sampling points: 16k~128k
- Sampling resolution: 0.05m~8m
- Reflection accuracy: ±3dB
- Data storage: Internal: ≥600 pieces; External: expandable TF card (not included)
- Laser safety class: Class Ⅱ
- File format: SOR standard file format
- Optical connector: FC/UPC (interchangeable SC, ST)
OPM (Optical Power Meter):
- Wavelength range: 800nm~1700nm
- Optical connector: universal connector FC/SC/ST
- Measuring range: -50dBm to +26dBm
- Uncertainty: ±5%
- Frequency identification: CW/270/330/1k/2kHz
- Calibration wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
Light Source:
- Laser type: FP-LD
- Output wavelength: 1310nm/1550nm±20nm
- Output power: ≥-5dBm
- Output mode: CW/270/330/1k/2kHz
- Stability: CW, ±0.5dB/15min (tested after 15min of preheating after booting)
- Optical connector: FC/UPC (interchangeable SC, ST)
VFL (Visual Fault Locator):
- Working wavelength: 650nm±20nm
- Output power: ≥10mW
- Working mode: CW/1Hz/2Hz
- Optical connector: universal connector FC/SC/ST
Machine Parameters:
- Display: 3.5-inch color LCD screen
- Data interface: Micro USB
- Expandable external storage: TF card (not included)
- Power supply mode: polymer lithium battery: 3.7V, 4000mA; power adapter: 5VDC, 2A
- Battery life: standby> 20 hours; measurement> 12 hours
- Working temperature: -10℃ to +50℃
- Storage temperature: -40℃to +70℃
- Relative humidity: 0~95% non-condensing

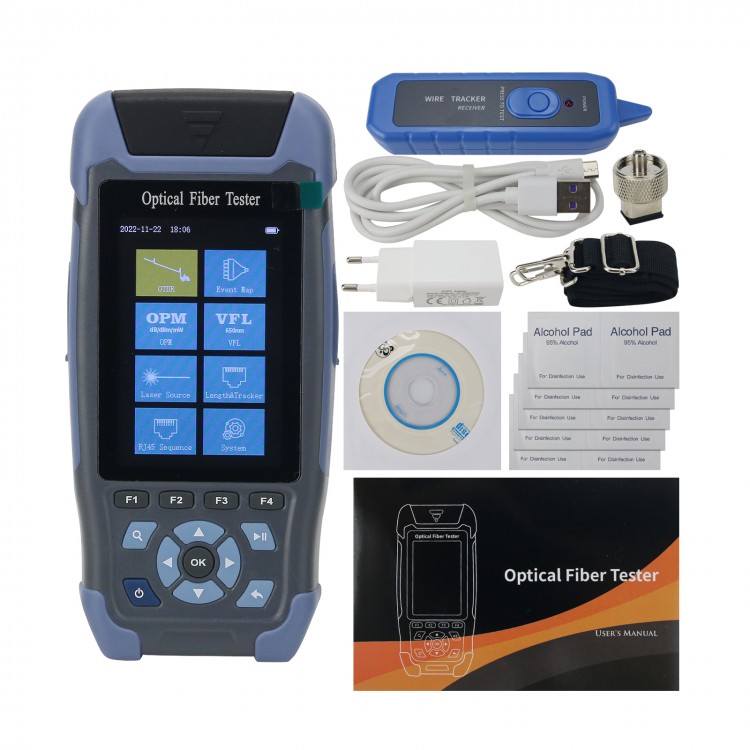

Package Included:
- 1 x Set of OTDR Optical Fiber Tester
