Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $173.37 | $169.83 | $164.53 | $157.45 | Contact US |

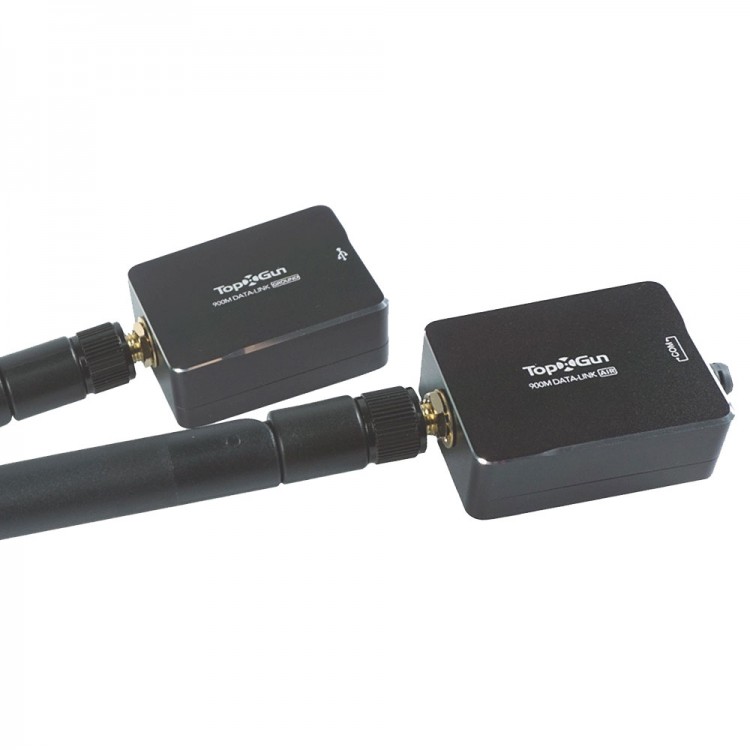

900MHz Air Ground Module Transmitter Receiver Data-Link Wireless Digital Radio for Multicopter FPV
Description:
900MHz Air, connect to COM port on the TopXGun flight control
900M-Ground, connect to the computer by USB cable
Specification:
- Communication distance: 2.0KM-2.5KM
- Transmitting power: 250mw
- Power consumption: 5V 100mA
- Seriel data transmission rate: 115200bps
- Antenna interface: SMA
- Operating temperature: -40~85 deg C
900M-Air:
- Hight: 16.6mm
- Width: 42mm
- Depth: 32mm
- Weight: 57.3g
900M-Ground module:
- Height: 16.6mm
- Width: 42mm
- Depth: 32mm
- Weight: 51.5g
- Input voltage: 4.5V-5.5V
- Transmission current: 200mA@5.0V
- Receiving current: 30mA@5.0V
Package included:
- 1 x 900M-Air module
- 1 x 900M-Ground module
