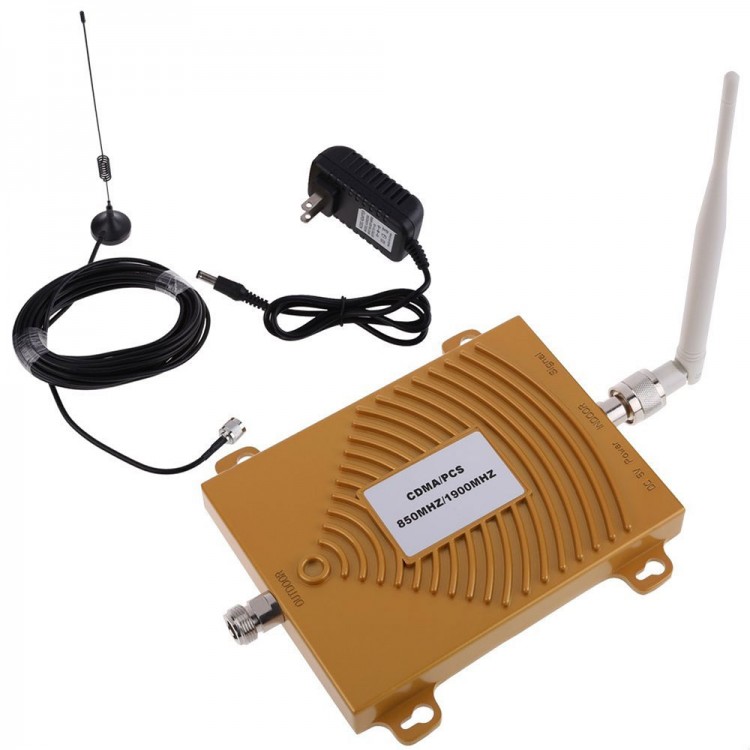

CDMA PCS 850/1900MHz Dual Band Cell Phone Signal Booster Amplifier Repeater Set
CDMA PCS 850/1900MHz Dual Band Cell Phone Signal Booster Amplifier Repeater Kit
Description:
- A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals.
- The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.
- A mobile phone repeater is ideal for house, home, office use.
Features:
- High gain, easy installation and operation.
- Full-duplex, single-port design, build-in power supply.
- Use ALC technology, adjust extent automatically
- LED Light Working & Signal Condition Indicators
- Big linear power, control inter-modulation & scatteration stably
- Dependability stand by GB6993-86 standard
- Compatibility of electromagnetism according with ETS300 609-4
- CE and RoHs Approved
| Item | Specification | ||
| Up Link | Down Link | ||
| Frequency | 824~849MHz | 869~894MHz | |
| 1850~1910MHz | 1930~1990MHz | ||
| Power | -70~-40 dBm / FA(1.23MHz) | ||
| Gain | 55dB | 60dB | |
| Max Output Power | +17dBm / Total power | +17dBm / Total power | |
| Impedance | 50Ω | ||
| Seclusion | >70dB | ||
| Power Supply | AC 110/220V(used AC/DC Adapter 5Vdc) | ||
| Compact Design | Indoor Use | ||
| Item Diemension | 190x150x 21mm | ||
Technique Supporting
- If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
- If can not call out, please adjust the direction of outdoor antenna.
- If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not in a same horizontal line.
Installation note:
- Please make sure distance above 10M between indoor and outdoor antenna, it’s better divides one from another by a wall.
- Please try to choose a good signal place to set up the outdoor antenna.
- Please sure that there are good signal 4-5 bars on your outdoor, or it will not work on your room.
- It could only strengthen cell phone signal, it could not produce cell phone signal,if there is no cell phone signal at all in your area, there is no need to use it.
Package Included
- 1 x Amplifier main device
- 1 x Adapter (US Plug)
- 1 x Outdoor antenna set (10M)
- 1 x Indoor antenna
- 1 x English user manual
