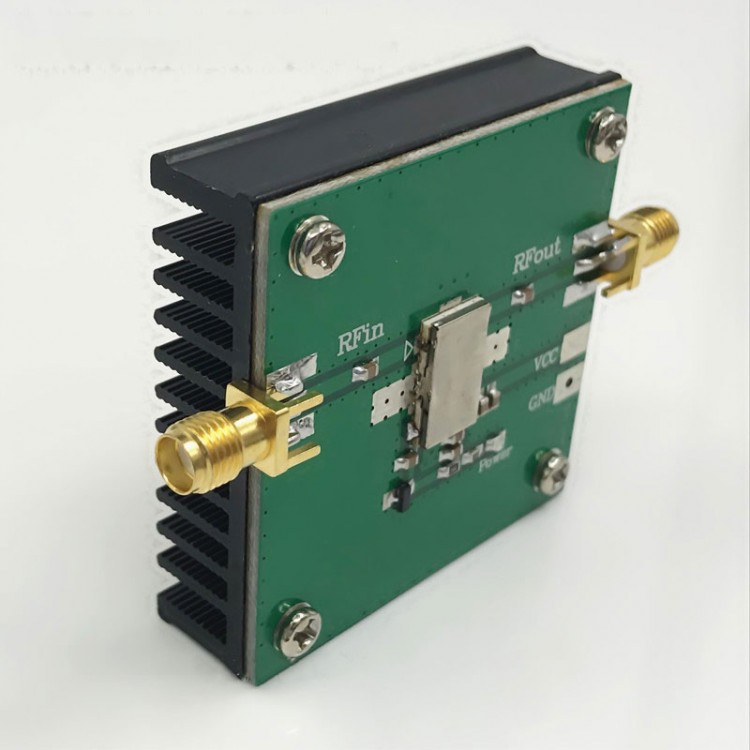

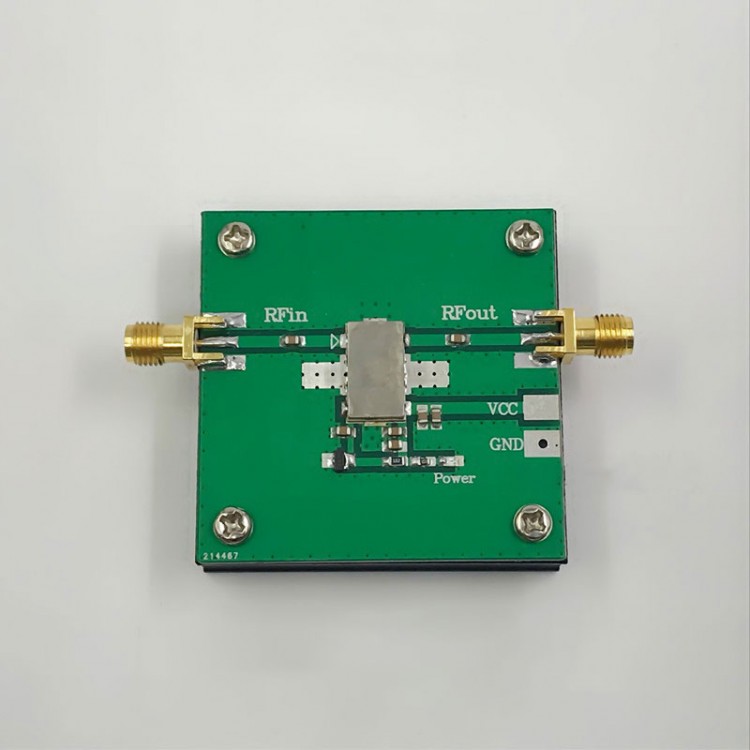

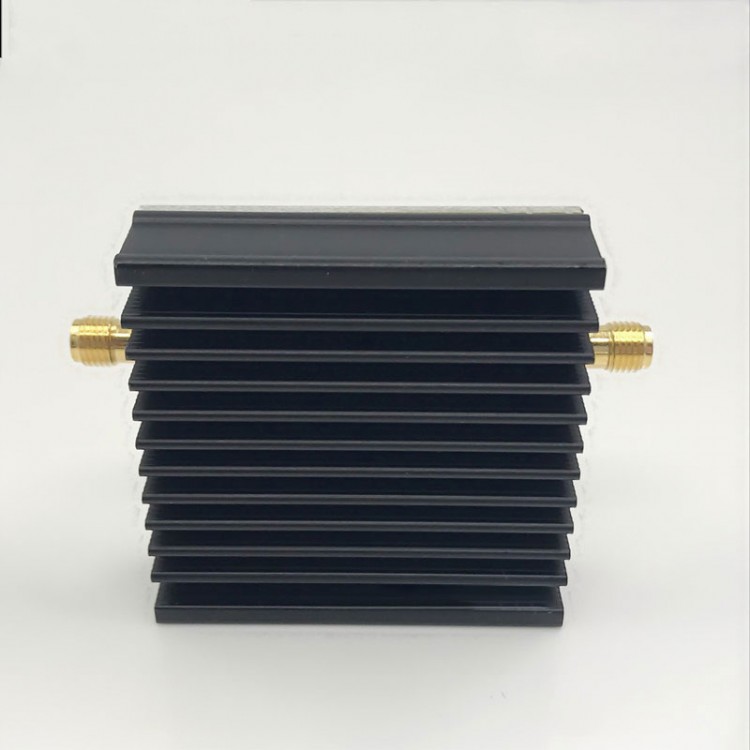

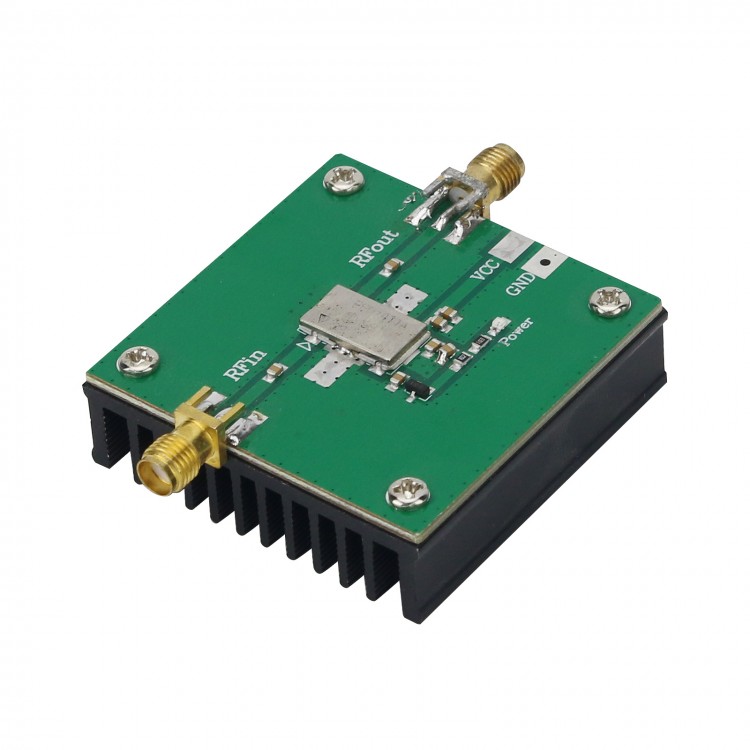

915MHz RF Power Amplifier Module SMA Female Connector 30dB Gain Low Noise Amplifier Board
Specification:
- Operating frequency: 890-960MHz
- Power Gain: >30dB
- Maximum Output Power: +34dBm (2.5W at 4.2V, 1.3A)
+37dBm (5.0W at 5V, 1.8A)
- Harmonic Suppression: 48dBc
- Working Current: 1.3A (4.2V, Recommended Operating Voltage)
- Supply Voltage: 4.2V DC
- System Impedance: 50Ω
- RF Interface: SMA Female
- Size: Approx. 50 x 50 mm (Not including the bulge size)
- Product Weight: 55g
Note:
- It is prohibited to transmit for a long time under no-load or serous loaded impedance mismatch.
- Do not increase the working voltage. Although it can increase the power, the power consumption of the product increases and the reliability deteriorates.
- Pay attention to anti-static measures. There is a common grounding point between the equipment. When using, connect the RF interface first, and then power on.
Package Included:
- 1 x Power Amplifier
