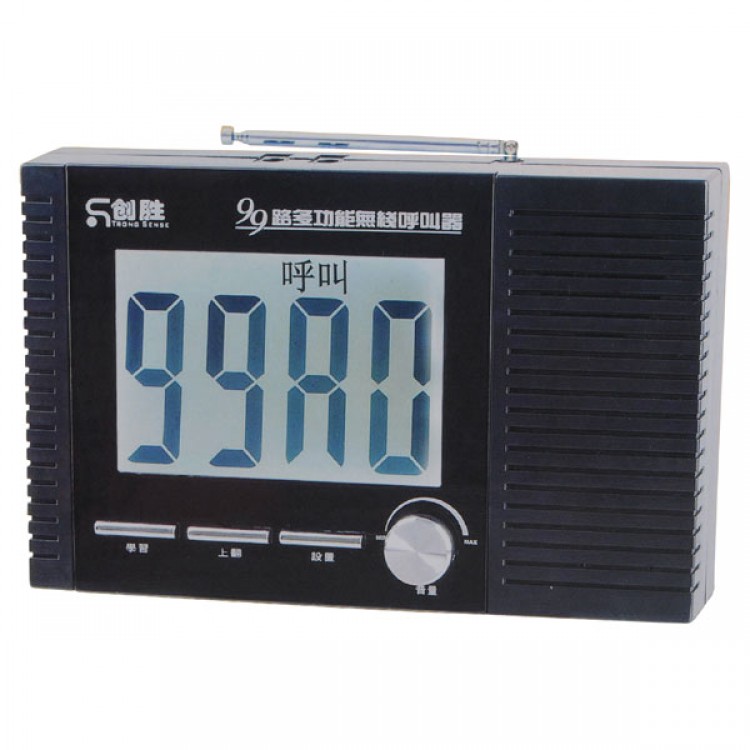

99 Channel Voice Wireless Calling System Receiver
Descriptions:
- Technical parameter
- LED display
- Time display
- Working voltage: DC12V
- Working frequency: 433.92MHz
- Quiescent current: 10mA
- Sensitivity: >-108dBm
- Encoded mode: studying code
- Modulation Method: Amplitude modulation (OOK)
- Working temperature: -10°C~+50°C
- Size: 200*123*35mm
- with voice prmopt
- Weight:860g
Installation & using
- 1/ Receiver --- Put the wireless calling receiver (server) on the service desk and connect to the power. The walling calling receiver is hung up on the wall or ceiling where easy to read.
- 2/ Watch receiver --- waiter (or waitress) wears the wrist watch receiver which can vibration when receives signal from customer.
- 3/ Transmitting caller --- Put the caller on each table. The caller is powered by batteries. Also can stick the caller on the wall where the customer can get it easily.
- 4/ Repeater --- If the service place is too big to receive the signal, please add the repeater on the way transmitting.
- 5/ Programing --- The transmitting caller and receiving server are paired by learning code. End user can do it by themselves. The number of caller can be defined to the table number.
- 6/ Menu card --- Menu or advertisment can be put in the card.
- For more instruction, please refer to the user manual
