9Axis CNC Controller Kit 100KHz Stepper Motor Controller Breakout Board + Handwheel+USB Cable+CD

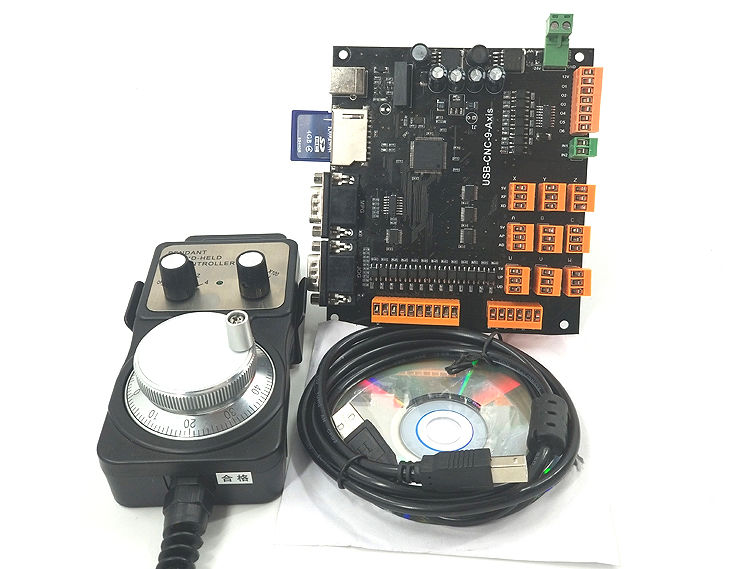

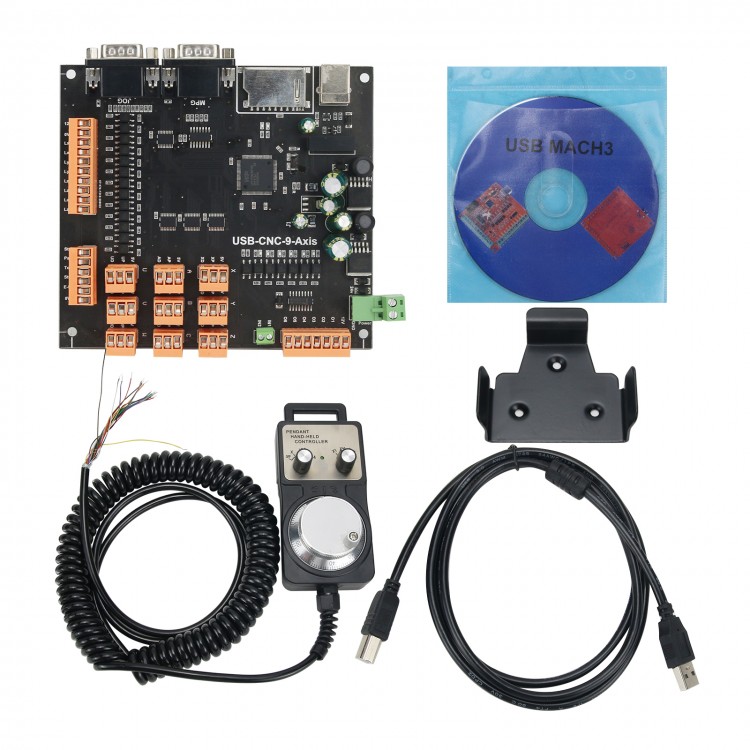

Package Included:
- 1 x USB CNC 9 Axis
- 1 x Handwheel
- 1 x USB Cable
- 1 x CD
Specifications:
- Motor Type: 9-axis controller for stepper and servo motors
- Motor type: Stepper Motor
- Model Number: usb cnc 9 axis
- Voltage: 24V
- Power Supply: DC

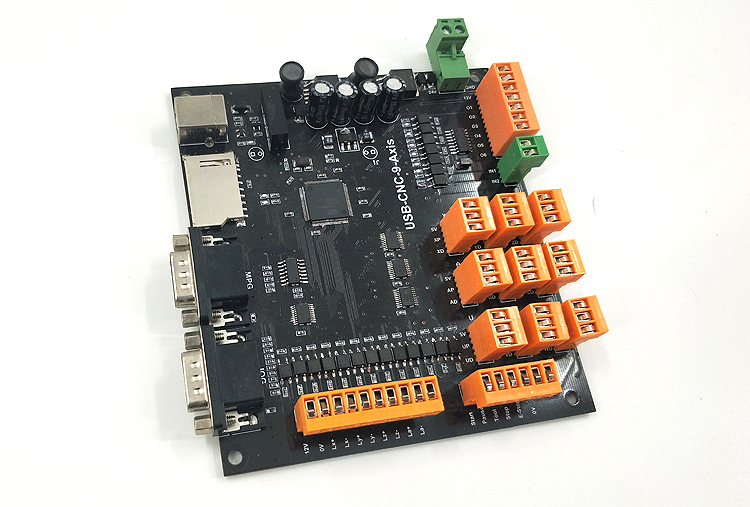

Mk2 9-Axis USB CNC Controller Features:
- 9-Axis controller for stepper and servo motors
- USB connection
- 100 kHz maximum step frequency
- 12 μs minimum pulse width, 50% duty cycle at higher frequencies
- 7 digital outputs on board
- jogging keyboard support
- 8 limit switches with shift feature
- 5 inputs
- MPG pendant support
- Spindle encoder and index signal support for spindle synchronization
- SD card support for running g-code without computer
- control external devices with I2C and UART protocol
- Homing procedure
- Tool change procedure
- Tool length sensor support
- Sensor for capturing and measuring
- digitizing probe support
- Transformation matrix
- Soft limits
- Slave axes
- Backlash compensation
- API
Note:
- The controller should be powered with an external power supply.
- Mk2 9-Axis controller hardware requires 24V DC supply.
- Power supply should be at least 200mA.

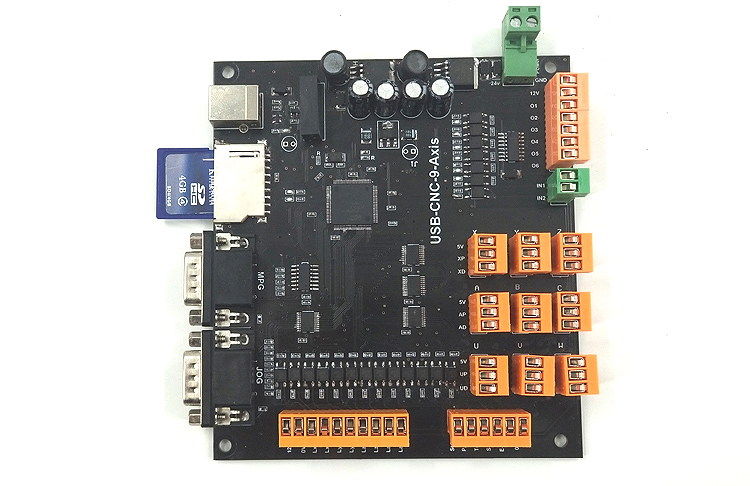

- Please note that SD card in the pictures is not included. Thank you!
Basic connection diagram:
