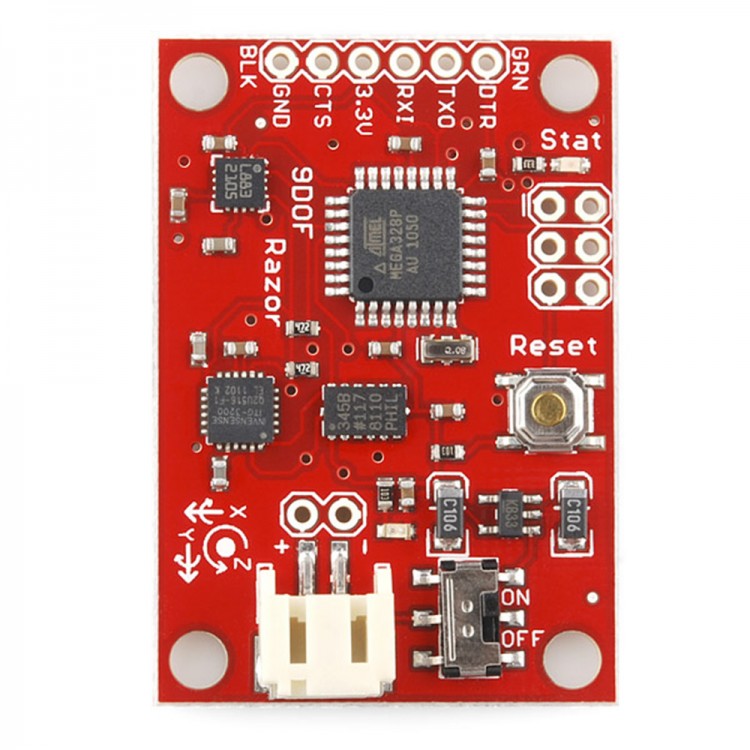

9DOF 3V-5V Sensor IMU AHRS ITG3200 ITG3205 ADXL345 HMC5883L Module for DIY Arduino
Description:
- 9 Degrees of Freedom - Razor IMU - AHRS Compatib
- The 9DOF IMU uses three sensors ITG3200/3205 (MEMS three axis gyro), ADXL345 (three axis accelerometer), and HMC5883L (three axis magnetometer) provides nine axis inertial measurement for you. The output of all sensors were processed and through the serial interface output by an on-board ATMEGA328
. This allows 9DOF IMU to be used as a powerful control mechanism, unmanned aircraft, unmanned vehicles and image stabilization system.
Specification:
- 9DOF module (three axis gyro + three shaft acceleration + three axis magnetic field)
- Chip Atmega328+ITG3200/ITG3205+ADXL345+HMC5883L
- Power supply: 3-5V
- Output port: serial port, can be connected with Bluetooth, XBee communication module for communication;
- Provide Arduino algorithm reference source code
- Size: 49.53 x 27.94 mm
Testing video: Click here.
Package included:
- 1 x Sensor Module
