9imod 50KG 270° Digital Servo 14V HV Brushless Servo Metal Gear BLS-HV50MG for RC Car Truck Boat

9imod 50KG 270° Digital Servo 14V HV Brushless Servo Metal Gear BLS-HV50MG for RC Car Truck Boat

Features:
* 10.0V~15V high voltage: High-performance and high-voltage brushless servo (The 14V High voltage servo needs to be supplied with extra power)
* Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle, excellent linearity, and precision control
* Widely used digital servo:The steering servo (Optional control angle 180°/270°/360°) compatible with 1/5,1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models
* Metal gear brushless servo: Equipped with stainless steel gears and full CNC aluminium shell, featuring less noise, light weight, and dual ball bearings

Specifications:
* Brand: 9imod
* Model: BLS-HV50MG
* Optional control angle: 180°/270°/360°
* Dead band width: 1usec
* Gear material: Metal Gear
* Case material: Aluminum Case
* Control System: PWM Control (1500usec in the central point)
* Operation Voltage Range: 10.0V~15V
* Operation Temperature Range: -20C° to +60C°
* Circle: ＞100 million times without load
* Operation Travel: 60°±1
* Limit angle: 180°±1 / 270°± 1 / 360°±1
* Direction: Re-clockwise/ Pulse Travel 500→2500μsec
* Diver type: MOSFET Drive
* Motor Type: Brushless motor
* Potentiometer Type: Direct Drive
* Amplifier Type: Digital Control
* Dimensions: 40 x 20 x 48.6mm/1.6 x 0.8 x 1.9"
* Standing Torque: 0.12sec/60°, 37kg-cm at 10.0V; 0.09sec/60°, 50kg-cm at 14V
* Idle Current: 300mA at 10.0V; 400mA at 14V
* Running Current: 4000mA at 10.0V; 5500mA at 14V
* Ball Bearing: 2BB
* Connector Wire Length: 300MMJR Plug
* Connector Wire Gauge: 22AWG
* Wire Info (Brown): Negative
* Wire Info (Red): Positive
* Wire Info (Black): Negative
* Wire Info (Yellow): S Sinqle

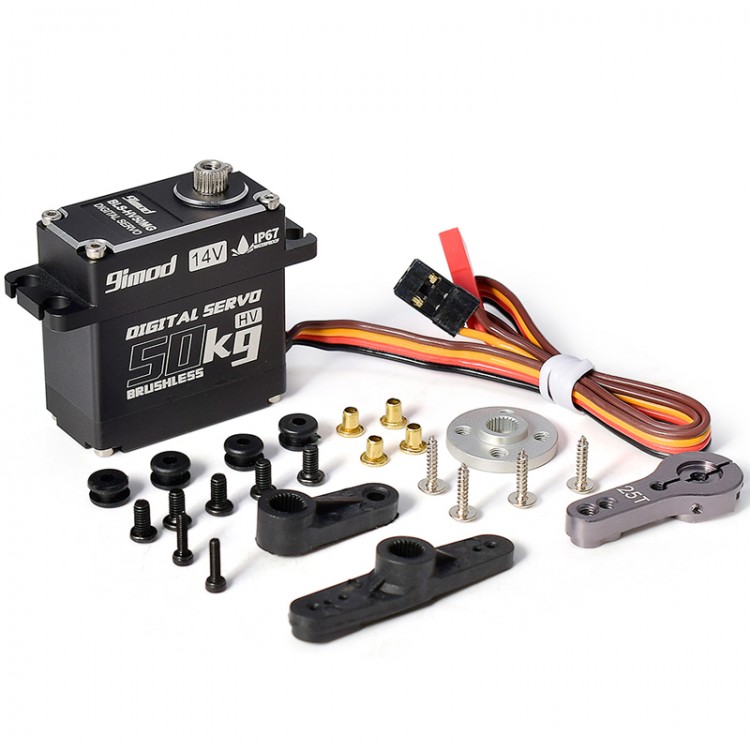

Package Included:
* 1 x Servo
* 1 x Set of Servo Accessories
