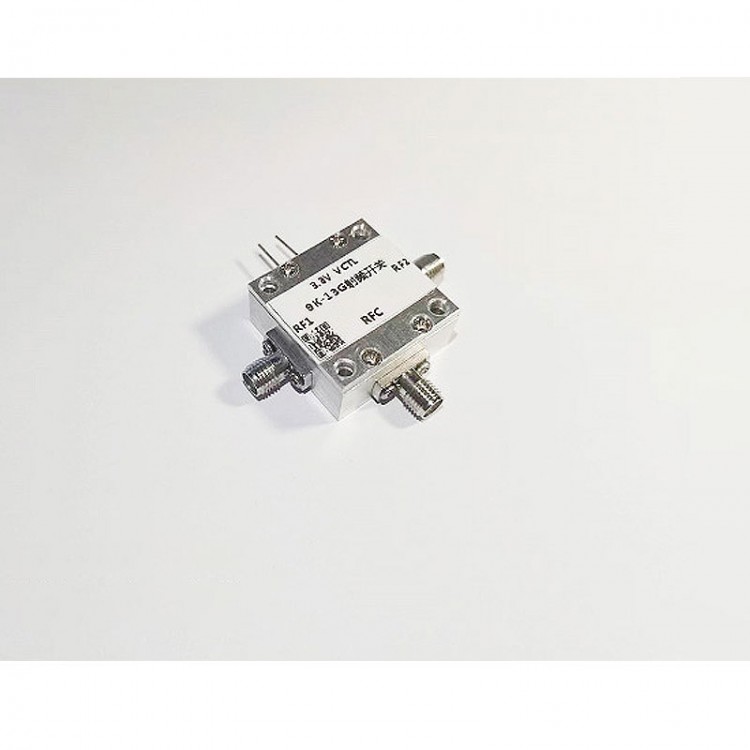

9K-13GHz RF Switch Ultra-Wideband RF SPDT Switch Microwave Switch
Description:
The microwave switch, also known as radio frequency switch, realizes the function of controlling the conversion of the microwave signal channel. This module adopts SPDT mode, broadband operation, frequency coverage 9K-13GHz, covering V, U, L, S, C, X bands. It can be used in typical frequency points: 433M, 486M, 915M, 1575M, 2.4G, 3.4GHz, 5.8G, 10G, 12G; especially in 5.8GHz, it has excellent parameter effects. This module realizes the switching of two signals. Because of its low insertion loss, wide frequency band, high isolation, and small size, it is widely used in communication system equipment. With CNC shell, the module has good electromagnetic shielding performance.
Specifications:
1. Model: QM-SW-13S
2. Working frequency: 9K-13G
3. Working mode: SPDT
4. Typical insertion loss: 1.5dB (typical)
5. Port isolation: ≥ 45dB at 5.8GHz
6. Power capacity: 33dBm
7. Impedance: 50Ω
8. Power supply: +3.3V
9. Input and output interface: SMA (female connector)
10. Module size: 28*28*12mm (without sizes of connectors)
11. With mounting holes
12. Weight: 80g
13. Control interface: through-heart capacitor
14. Control mode: VCTL: H RFC output to RF1; VCTL: L RFC output to RF2. (External voltage control, H: 3.3V, L: 0V or ground)
Attention:
- The input and output of this module are not DC-blocked. If the incoming signal potential is not 0V, DC-blocking processing is required.
Package Included:
- 1 x RF Switch

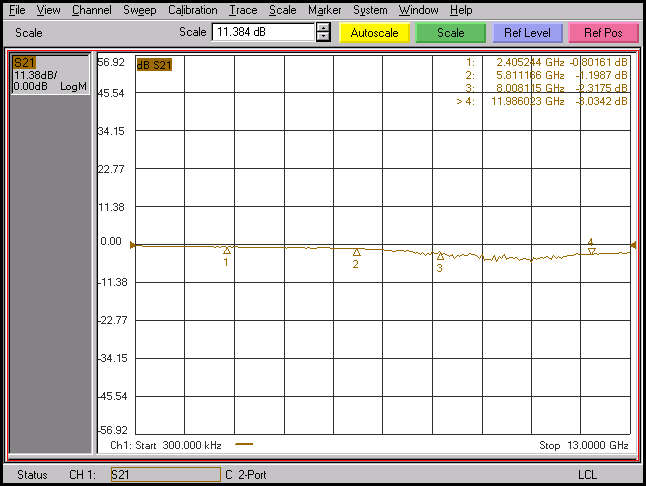

Insertion Loss Test:

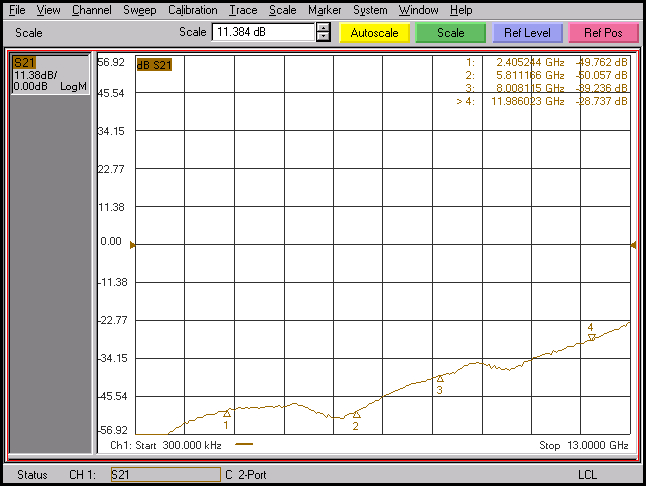

Isolation Test:
