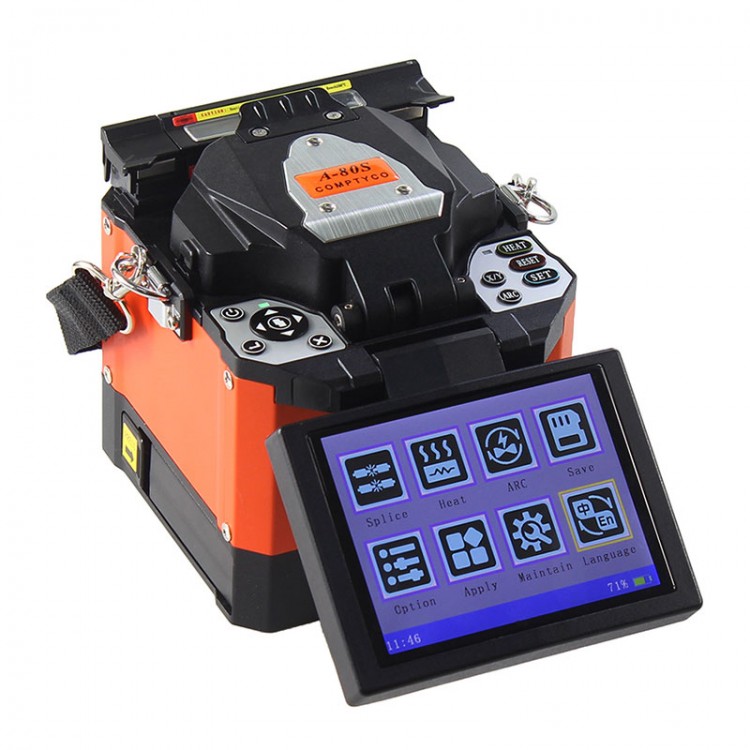

A-80S Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer -Orange

A-80S Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer

 Features:
- The high-precision fusion splicer, with high-speed image processing technology and special precision positioning technology, can complete the whole process of fiber fusion splicing automatically in 9 seconds.
- Characterized by light weight, easy to carry and convenient to operate, fast splicing speed and low loses, it is especially suitable for optical fiber and cable projects, maintenance scientific research and teaching in telecommunications, radio and television, railway, petrochemical, electric power, military and public security and other communications fields.
- This machine is mainly used for the connection of optical fibers, which can be further connected with ordinary optical fiber cables, jumpers and multiple single-mode, multi-mode and dispersion-shifted quartz optical fibers with a cladding diameter of 50um-150um.
- Keep it clean and protect it against strong vibrations and shocks.
- Lighting is convenient for optical fiber installation in the evening.

Specifications:
- Voltage: 100V-240V  50/60Hz
- Applicable Optical Fiber: SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber types
- Splicing Loss: 0.02dB(SM), 0.01dB(MM) 0.04dB(DS/NZDS)
- Return Loss: Over 60dB
- Typical Splicing Duration: 9 seconds
- Typical Heating Duration: 26 seconds (configurable heating time and adjustable heating temperature)
- Optical Fiber Alignment: Precise alignment, fiber core alignment, cladding alignment
- Optical Fiber Diameter: Cladding Diameter 80~150um, coating layer diameter 100~1000um
- Cutting Length: Coating layer below 250um: 8~16mm; coating layer 250~1000um: 16mm
- Optical Fiber Clamp: Multi-function clamp for bare fiber, tail fiber, jumpers, leather line, changing clamp applicable for SC and other connectors for a variety of FTTx optical fiber and cable
- Amplification Factor: 400 times (X axls or Y axls)
- Heat Shrink Bush: 60mm, 40mm and a series of miniature bush
- Display: 5.0 inches TFT color LCD display. Reversible, convenient for bi-directional operation
- External Interface: USB interface, convenient for data download and software upgrade
- Splicing Mode: 17 groups of operation modes
- Heating Mode: 9 groups of operation modes
- Splicing Loss Storage: 5000 latest splicing results are stored in the build-in storage
- Built-in Battery: Supports continuous splicing and heating for not less than 200 times
- Power Supply: The built-in lithium battery 11.8V supplies the power, charging time ≤3.5h; External adapter, input AC100-240V50/60HZ, output DC13.5V/4.81A
- Power Saving: 15% of the power of the lithium battery can be saved in a typical environment.
- Working Environment: Temperature:-10~+50℃, Humidity: <95%RH (no condensation); Working Altitude: 0~5000m, Max. Wind Speed: 15m/s
- Size(L*W*H): About 158*130*156mm/6.2*5.1*6.1in
- Package Weight: 7.1kg(approx.)


Package Includes:
- 1 x Fusion Splicer
- 1 x Fiber Cleaver
- 1 x Fiber Stripper
- 1 x 30MW Fiber Tester
- 1 x Power Adapter
- 2 x Electrodes Stick
- 1 x Cold Cutting Frame
- 1 x Rubber-insulated Wire Stripping Pliers
- 1 x Transit Case with Carrying Strap
- 1 x Seat
- 1 x Length Fixing Stripping Device
- 2 x Hex Wrenches
- 1 x Brush
- 1 x Tweezers
- 1 x Dust Blower Ball
- 1 x Bottle
- 2 x Batteries
