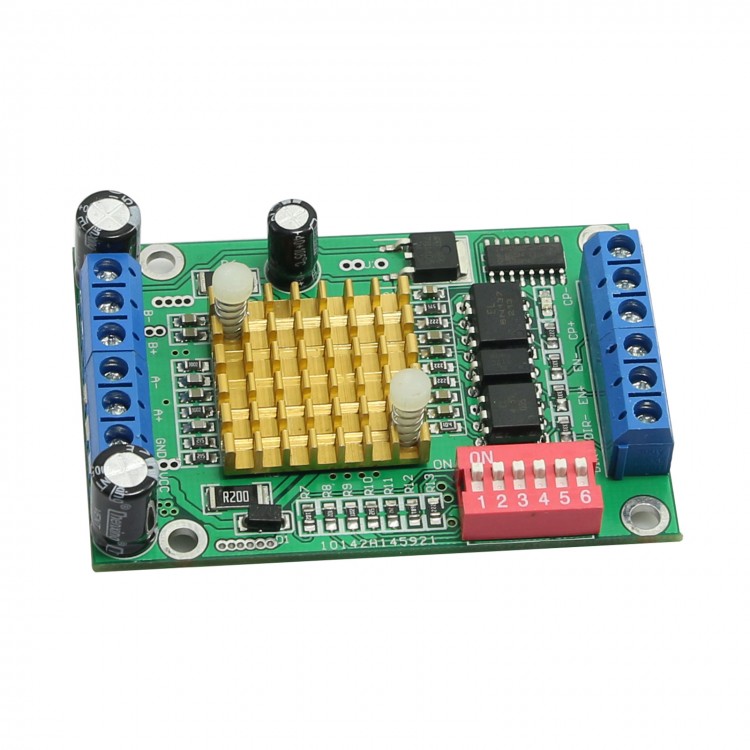

A3977 2A Stepper Motor Controller Driver Board w/ Heat Sink for 42/35/28 Step Motor

Availability: Out Of Stock

Price:$7.98
Price in reward points: 80 Reward Points: 1

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$7.82	$7.66	$7.42	$7.10	Contact US

Product details
Reviews (0)

A3977 2A Stepper Motor Controller Driver Board w/ Heat Sink for 42/35/28 Step Motor

A3977 Features:

- ±2.5 A, 35 V Output Rating

- Low rDS(on) Outputs, 0.45 Î© Source, 0.36 Î© Sink Typical

- Automatic Current Decay Mode Detection/Selection

- Synchronous Rectification for Low Power Dissipation

- Internal UVLO and Thermal Shutdown Circuitry

- Crossover-Current Protection

- Supplied in a choice of two power packages, a 44-pin plastic PLCC with copper batwing tabs (suffix ED), and a thin (<1.2 mm), 28-pin TSSOP with an exposed thermal pad (suffix LP)

Controller Features:

- Work voltage: 8V-32V

- Adopts 6N137 high speed optocoupler

- Adopts A3977 chip, with low voltage off, over heat brake, overcurrent protection

- Auto semi-flow, auto turn into semi-flow mode if no stepper pulse in 0.5s

- Max.rated output: +/-3A, running current 7 grades adjustable

- Suit for size 42 or below, 2A two/four phase four/six wire stepper motors

- Auto turn into current holding status if no stepper pulse in 0.5s, 2 grades adjustable

- Size: 48*80*18mm
