A6 SE APM Opensource UAV Flight Control with Galvanometer Kit and Note3 GPS Pixhawk High Performance Controller for UAV Drones
Description:
- YJUAV A6 SE autopilot is a high-performance and cost-effective open-source flight control product. It is lightweight, compact and easy to install, with rich interfaces and stable performance. It can be used to control intelligent devices such as UAV drones, unmanned vehicles, and unmanned ships.
Specification:
- Processor: STM32H743, main frequency 480MHz
- RAM: 2MB Flash, 1MB SRAM
- FRAM: 32KB
- Opensource firmware support: for Ardupilot 4.4.3 and above version, support UAV drones, fixed-wing, hanging fixed wing, unmanned vehicles, unmanned ships, etc.
- Main power port working voltage: 4.5V - 5.5V
- USB power port working voltage: 4.5V - 5.5V
- Dual power redundancy: main power interface and USB power interface, mutual redundancy backup.
- Power protection: anti-reverse connection protection, short-circuited protection
- Interface protection: static electricity protection
- IMU sensor: ICM-42688-P*2
- Compass sensor: IST8310
- Barometer sensor: DPS310
- PWM: 11 (support 8-channel Dshot)
- UART: 5
- ADC: 5
- I2C: 3
- CAN: 2
- SPI: 1
- USB: 1 (Type-C)
- USB expansion port: 1 (GH1.25*4)
- SD card: 1 (support for MicroSD)
- Main power interface: 1 (analog voltage and current detection); connector type, MOLEX CLIK-Mate 5025850670
- Safety interface: support buzzer and safety switch
- Debug: 1 channel SWD port, 1 channel debugging serial port
- RC input: support for SUSB, PPM, DSM signals
- Servo voltage detection: 0 - 9.9V
- Working temperature: -40℃ to +85℃
- Product size: 58 x 38 x 16m
- Net weight: 38g

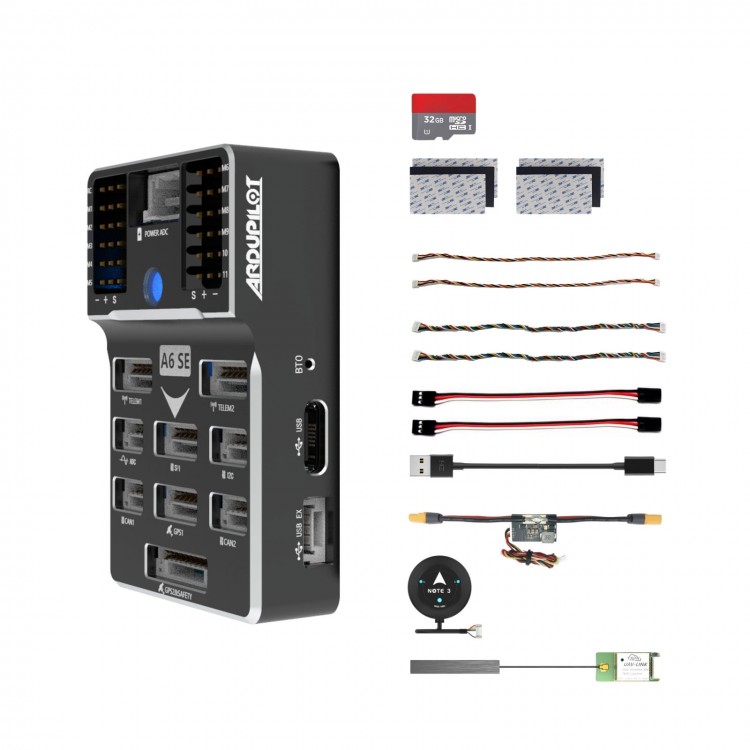

Package Included:
- 1 x A6 SE Flight Control
- 1 x 16G TF Card
- 2 x Shock-absorbing sponge
- 2 x 4Pin Cable (25cm)
- 2 x 6Pin Cable (25cm)
- 2 x PWM Cable (20cm)
- 1 x Type-C Cable (1m)
- 1 x High Voltage Galvanometer Module
- 1 x WiFi Data Transmission Module
- 1 x Note3 GPS Module
