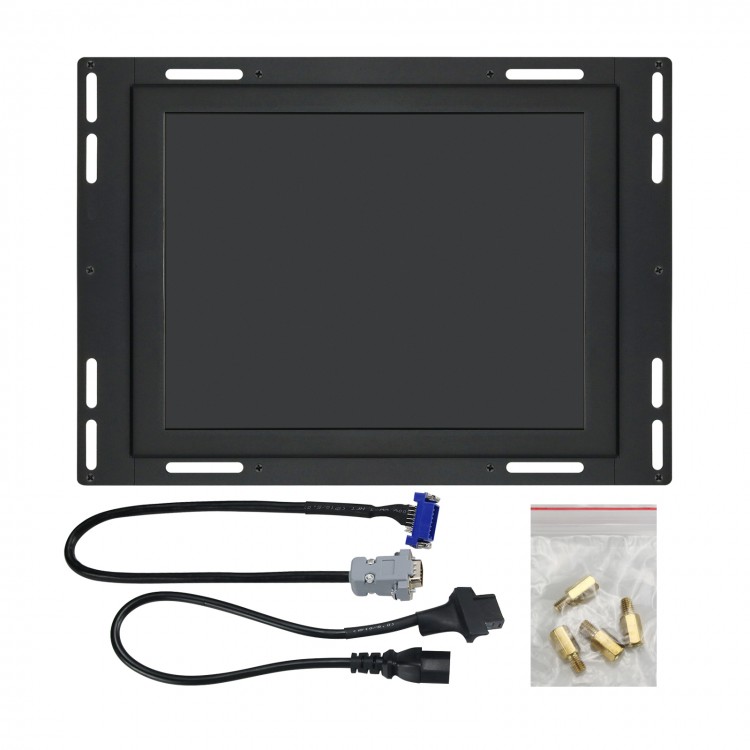

A61L-0001-0074 A61L-0001-0094 A61L-0001-0096 LCD Replacement for FANUC CNC System 14" CRT Monitor
Features:
- LCD monitor replacement for FANUC 14-inch CRT monitor
- Replacement for models including A61L-0001-0074, A61L-0001-0094 & A61L-0001-0096
- Excellent performance and convenient maintenance
- Easy Application: No need to change original wiring
Technical Parameters:
- Model Number: ADR-121-FANUC Monitor
- Screen Size: 246 x 184.4mm (L*W), 12.1 Inches; 4:3 Screen
Display Resolution:
- In MDA Mode: 720*350; 18.432 KHz/60Hz
- In CGA Mode: 640*200; Compatible with multiple frequencies
- In EGA Mode: 640*350; Compatible with multiple frequencies
Input Signal:
- Types of Signal Source: MDA, CGA, EGA, VGA, RGBS, RGBHV Signals
Synchronous Ways:
- HV field separation, HV field mixing Cs
- TTL Digital Level: 2.4 to 5.0V or 0.0 to 0.8V; Analog Level: 0.7-2.5VP-P
- Input Impedance: Automatically adapt to various strong and weak sources.
- Scanning Method: Interlaced/progressive scanning
- Signal Interface: 9-pin (Default), 15-pin (optional)
- Display Color: 262K, monochrome, black and white, colorful
- Contrast: 250:1
- Brightness: 250 cd/m2 (Typ.)
- Working Environment: Temperature: +5℃ to +50℃;Humidity: 20% to 85%
- Storage Environment: Temperature: -20℃ to +70℃; Humidity: 10% to 95%
- Installation Size: Display Frame Size: 317*250*45mm
- Fixing Methods: Built-in Installation, Frame Fixing Method, and Mounting to Extra Base
- Power Adapter: External AC100V/240V to DC12V/5A power supply
- Power: 18W
- Power Interface: National standard suffix interface, DC DC head 5.5*2.1
Package Included:
- 1 x A61L-0001-0094 LCD LCD Monitor
