A8 450-470MHz 4W 16CH UHF Radio Portable Walkie Talkie Handheld Transceiver for Motorola Mag One

A8 450-470MHz 4W 16CH UHF Radio Portable Walkie Talkie Handheld Transceiver for Motorola Mag One

Features:
- Small, Compact and Easy to use
- 16 Channels
- 12.5/25kHz Channel Spacing
- PL/DPL
- 2 programmable quick access buttons
- More than 8 hrs talk time at 5-5-90 duty cycle
- Battery Saver Mode
- High/Low Transmit Power Selection
- Low Battery Indicator
- Priority Scan
- Nuisance Channel Delete
- Repeater/Talk around
- Monitor/Stick Permanent Monitor
- Button Lock
- Busy Channel Lockout
- Volume Set
- Time out timer (10-600 secs)
- Tight/ Normal Squelch Selection

Specifications:
General:
- Frequency Range: 450-470MHz
- Memory Channels: 16
- Channel Spacing: 12.5/25 kHz switchable
- Operating Temperature Range: -30℃ to +60℃ (Radio); -20℃ to +60℃ (with NiMH battery)
- Dimensions (H x W x D): 107 x 58 (bottom) x 37mm/4.2 x 2.3 x 1.5"
- Weight: 350g/0.8 lb
- Average Battery Life at 5-5-90% Duty Cycle: > 8hrs
- Sealing: Passes rain testing per IPX4
- Shock & Vibration: Diecast with impact resistance polycarbonate housing Passes EIA 603B
- Dust & Humidity: Weather resistant housing passes EIA 603B

Transmitter:
- RF output: High power 4W; Low Power 1W
- Spurs and Harmonics: -63dBc (-26Bm at 5W; -27dBm at 4W)
- Frequency Stability: ±2.5ppm
- FM Hum & Noise: 40dB
- Modulation Limiting: ≤ 5Khz (25KHz); ≤ 2.5Khz (12.5kHz）
- Audio Response (from 6dB/oct pre-emphasis, 300-3000Hz): +1/-3dB
- Audio Distortion at 1 kHz tone, 60%rated max dev.: < 5%

Receiver:
- Sensitivity (12dB SINAD): < -117.5dBm (0.3μV)
- Adjacent Channel Selectivity: 65dB (25kHz), 60dB (12.5kHz)
- Intermodulation: 65dB (25kHz), 60dB (12.5kHz)
- Spurious Rejection: 65dB
- Audio Distortion: < 5%
- Hum and Noise: 40dB
- Conducted Emission: < -57dBm
- Audio Output at < 5% Distortion: 500mW

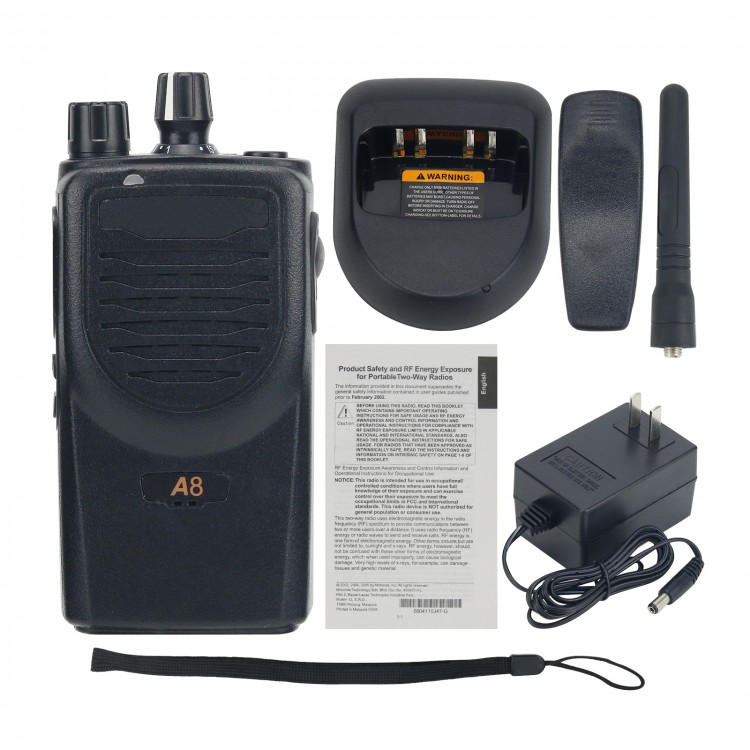

Package Included:
- 1 x Walkie Talkie Body
- 1 x Battery
- 1 x Antenna
- 1 x Charger Dock
- 1 x Belt Clip
- 1 x Hand Strip
- 1 x Power Adapter
- 1 x Set of User Manual
