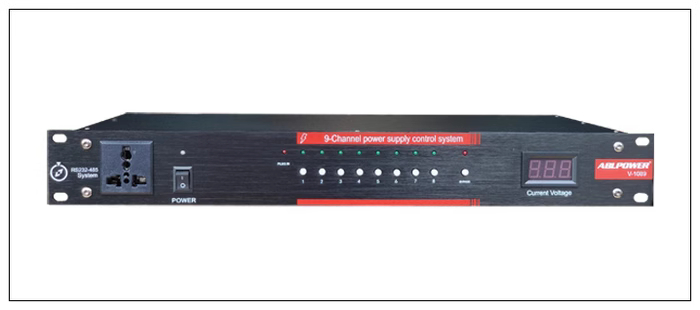

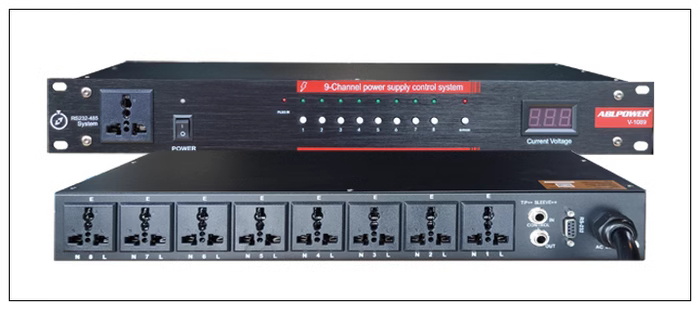

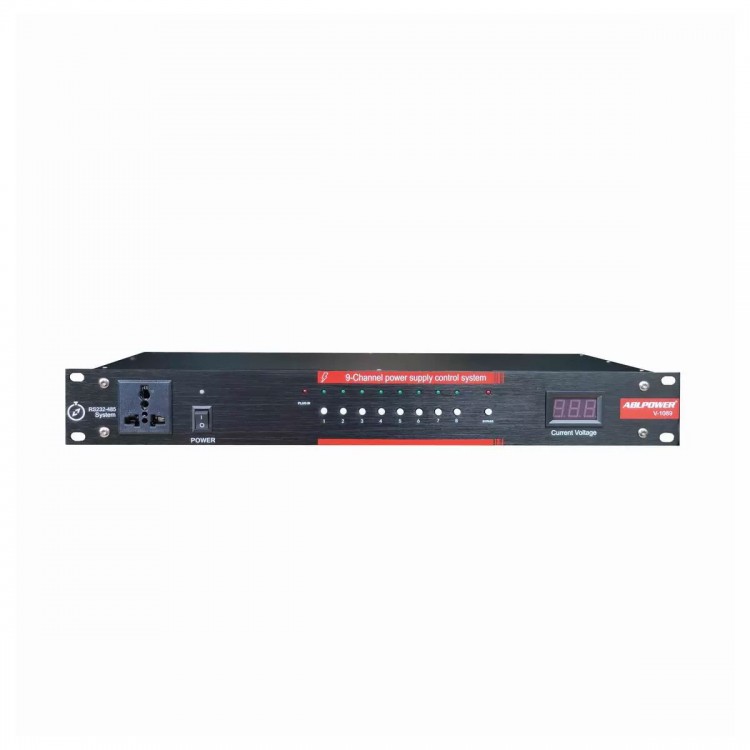

ABL POWER V-1089 Power Sequencer Controller 9-Channel Power Supply Control System w/ RS232 & Screen
Application:
It is used in command and control centers, large multimedia conference halls, multi-function halls, training centers, multimedia classrooms, high-end villas, hotels, smart homes, etc. It can be used with 4-5pcs 1000W-1500W power amplifiers.
Specifications:
- Maximum input current: 60A
- Maximum output current of a single channel: 30A
- Working voltage: 110V/220V, 50-60Hz
- Power per channel: peak up to 3000W (Recommendation: suitable for 3-4pcs 1000W-1500W amplifiers)
- Optional input and output voltage: 110V/220V (AC input voltage = AC output voltage)

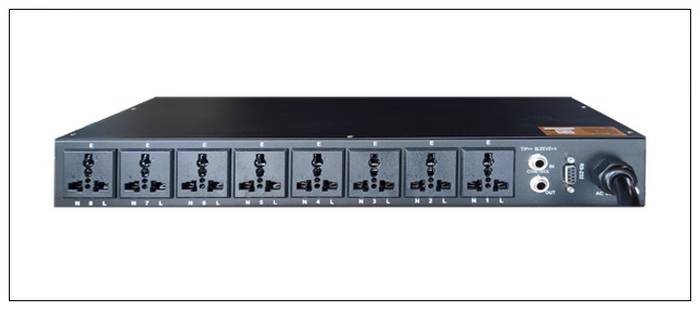

- Output power supply socket: Universal socket, in line with European and American standards. The front panel has a pass-through universal socket and the rear panel has 8 controlled universal sockets
- Socket material: Each socket is made of phosphor copper, which is installed only after passing inspection. Comply with EU environmental standards
- The interval between each switch: 1 second. And each channel has an indicator light
- Relay: Songle relay
- Circuit board circuit process standard: 65% high-purity tin and high-end shunt technology. Strengthened and thickened
- Transformer: A&C original transformer
- Built-in power cable: Built-in cable 2.5 square per way (external cables are not provided)
- Chassis height: 1 U (cabinet mounting standard)
- Switch button: Uni-direction push-button switch

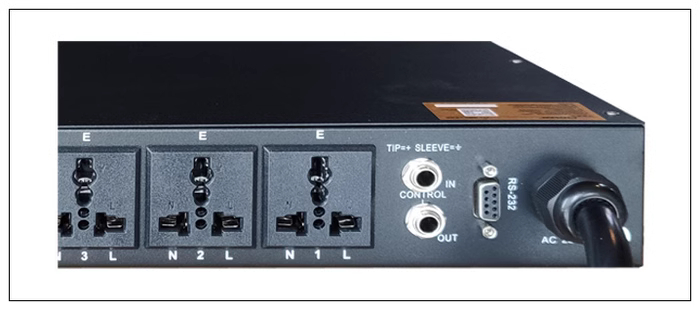

- RS232 interface for central control system: With. The rear panel has a RS232 interface for central control system. RS232 communication interface: DB9FM
- Controlled function: With (after connecting to a central control system, each channel can be controlled separately)
- Voltage display: With
- Remote control function: Without
- Online support: Yes
- Power purification: Filter (capacitor filtering)
- Product size: 48 x 26 x 6cm/18.9 x 10.2 x 2.4" (WxDxH)
- G.W.: 6.3kg/13.9lb
Package Included:
- 1 x Power Sequencer
