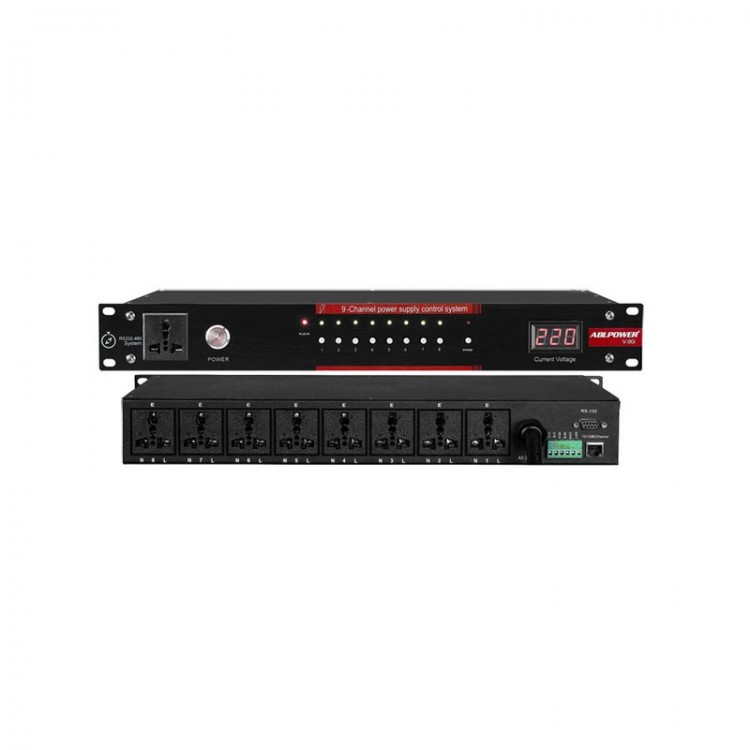

ABL POWER V-90i Power Sequencer Controller 9-Channel Power Supply Control System for LAN & Internet

ABL POWER V-90i Power Sequencer Controller 9-Channel Power Supply Control System for LAN & Internet

Description:
ABL NET Power Sequencer Controller (NPSC) is an industrial-grade embedded networked power sequencer, which is stable and cost-effective. It uses an 8-bit processor with rich storage and management capabilities, providing 8-way relay control to TCP/IP networks for bidirectional smooth physical transmission channels.

It can automatically detect 10M/100m Ethernet, and supports protocols such as ETHERNET, ARP, IP, UDP, TCP and ICMP. Its working modes include TCP Server, TCP Client, UDP Server, UDP Client, MODBUS TCP, MODBUS-RTU and MODBUS-ASCII. It supports cross-gateway, cross-route communication control. The TCP SERVER mode supports 4 TCP links.

The NPSC features low power consumption, fast speed, fast response and high stability. The maximum baud rate of UART communication is as high as 4.6Mbps, and it has TCP Client, UDP, and TCP server working modes. With PC software, i.e. the setting software, users can easily configure the switching mode of the 8-way relay.

Features:
- 100M high-speed network card and 10/100M adaptive Ethernet interface
- It supports AUTO MDI/MDIX. Can be connected with a crossover cable or a straight-through cable
- Settable UART baud rate: from 1200bps to 4.6Mbps
- Working mode: TCP Client, UDP, TCP server, UDP server, MODBUS TCP, MODBUS-RTU and MODBUS-ASCII
- Virtual serial port working mode is supported
- It can cross gateways, switches and routers
- It can work on a LAN or the Internet
- Working port, destination IP address and port can be easily set
- When the network is disconnected, it will automatically disconnect to ensure that the entire network can reliably establish a TCP connection
- Flexible serial port data framing settings to meet various needs

Specifications:
- LAN Ethernet: 10/100Mbps
- Protection: Built-in 5KV electromagnetic isolation
- NPSC: RS232 serial port and RJ45 network port
- Serial port rate: Baud rate can be set from 110bps to 115200 bps
- Network protocol: ETHERNET, ARP, IP, UDP, TCP and ICMP
- Utility software: PC working mode configuration software, TCP/UDP test tool and serial port debugging software
- Configuration: Network and UART
- Optional power supply: AC 110V/220V
- Controlled quantity and capacity: 8-channel 10A controllable and 1-channel pass-through
- Operating temperature: Industrial-grade -25 to 75°C
- Storage environment: -45 to 85°C and 5 to 95%RH
- G.W.: 6.3kg/13.9lb

Package Included:
- 1 x Power Sequencer
