AC 220V Motor Speed Controller 6W/15W/25W/40W/60W/90W/120W/180W/200W/250W

AC 220V Motor Speed Controller 6W/15W/25W/40W/60W/90W/120W/180W/200W/250W

Product details:

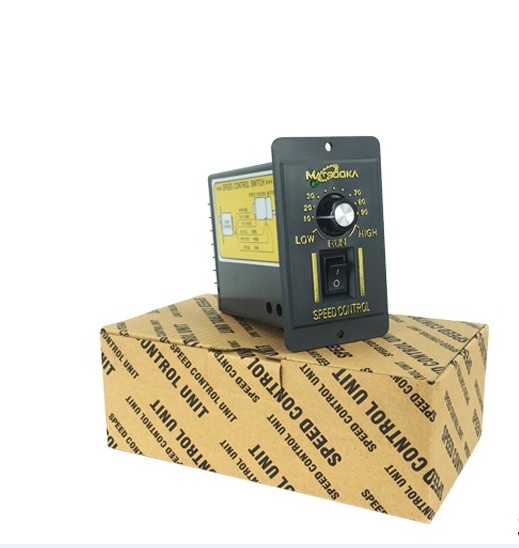

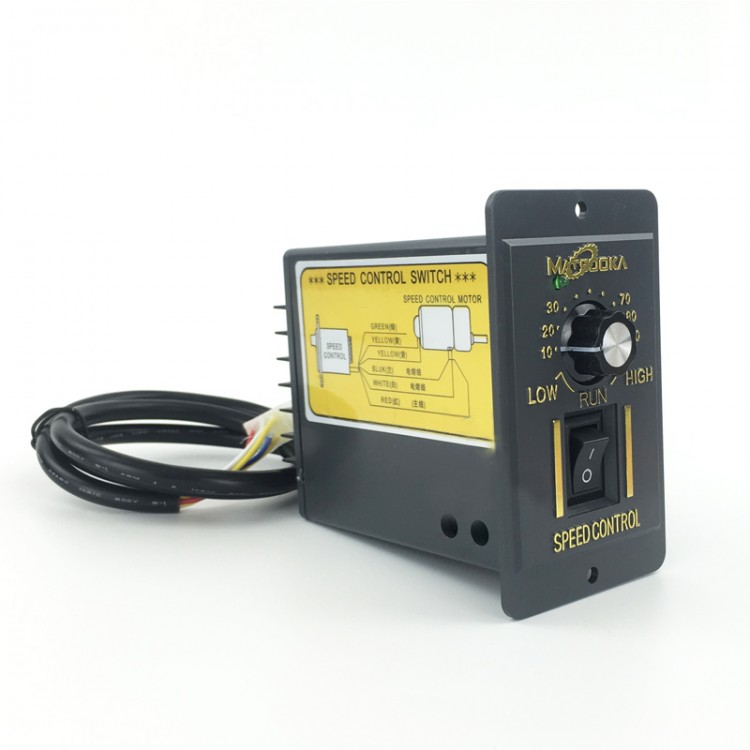

- US-52 220V electrical AC motor speed controller.

- Motor speed controller is widely used in packaging, brushing, food, electronics, the medical instrument, glasses machinery industry to the production stage machinery velocity modulation driver.

- Motor Speed Control can be connected with motor and electric device.

- Adjust the rate of stability and mechanical properties.

- Connect CW and COM for positive rotation; connect COM and CCW for negative rotation

Specifications:

- Item name: Motor Speed Controller

- Model No: US-52

- Color: Black

- Voltage: AC 220V

- Cable length: About 70cm

- Power: 6W/15W/25W/40W/60W/90W/120W/150W/180W/200W/250W, it is optional

- Control mode: Positive / Negative rotation

- Working temperature: -10 ℃ to 50 ℃

- RMP: Adjustable range, 90-1400r/min 50HZ, 90-1700r/min 60HZ

- Relative temperature: <90%

- Weight: 0.3kg

Package Included:

- 1 x Motor Speed Controller

Notices:

1. Please choose the appropriate power before ordering.

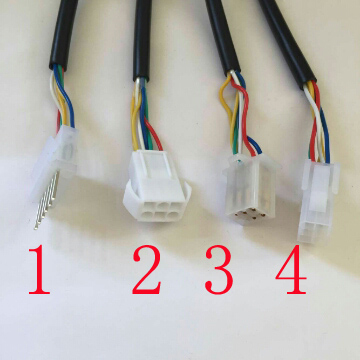

2. Please choose the appropriate plug before ordering as picture showed.

Using instructions:

1. Before using, set the external speed knob to “0” to prevent instantaneous high current damaging the controller.

2. This product uses generator feedback voltage to control cable, there are blue and yellow cables.

3. If the torque or speed doesn't meet your requirements when controller connects with motor, please slightly adjust the potentiometer on U5-2 side.

4. To change the running direction of the motor:

1) Connect COM and CW, then the motor rotates positively.

2) Connect COM and CCW, then motor rotates negatively.

5. The action switch only controls the motor to operate or stop, it is not for power interruption. If it is not used for a long time, please turn off the power.
