AC 220V Servo Motor Driver Kit 750W 3000RPM Servo Motor Kit For CNC Industrial Automation & Control
Three Modes:
Position mode (default) pulse + direction control, speed mode, torque mode. External connection -10~10v control.
Servo Motors:
- Real servo motor, not a closed loop stepper motor
- Rated power: 750W
- Rated torque: 2.39NM to support triple overload
- Rated speed: 3000RPM
- Simple controller (control motor forward and reverse speed regulation)
Features:
- Short circuit protection: prevent accidents
- Overload protection: automatic protection beyond rated power
- Over-temperature protection: independent temperature control by inverter
- Overcurrent protection: to prevent damage to the machine by high current
- Shock protection: anti-shock when the voltage is too high
- Position mode: advanced precision without losing steps
- Speed mode: analog control speed
- Torque mode: analog control torque
- Imported components
- High response, high speed and high precision
- Imported encoder

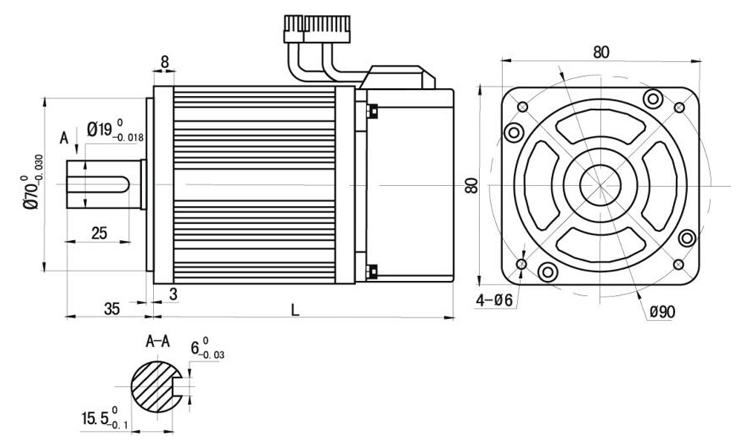

Motor Specifications:
- Motor model: 80AEA 07530
- Current: 3A
- Output torque: 2.4N.m
- Body length: 150mm
- Output shaft diameter: 19mm
- Shaft output mode: single shaft (keyway)
- Outlet mode: aerial plug (power line + encoder)
Package Included:

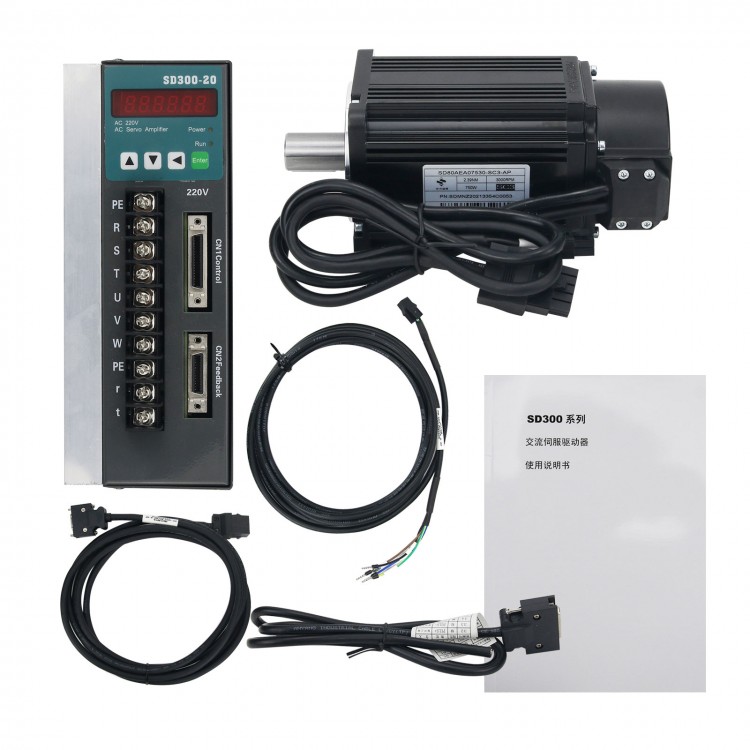

- 1 x Set of Servo Motor Driver
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
