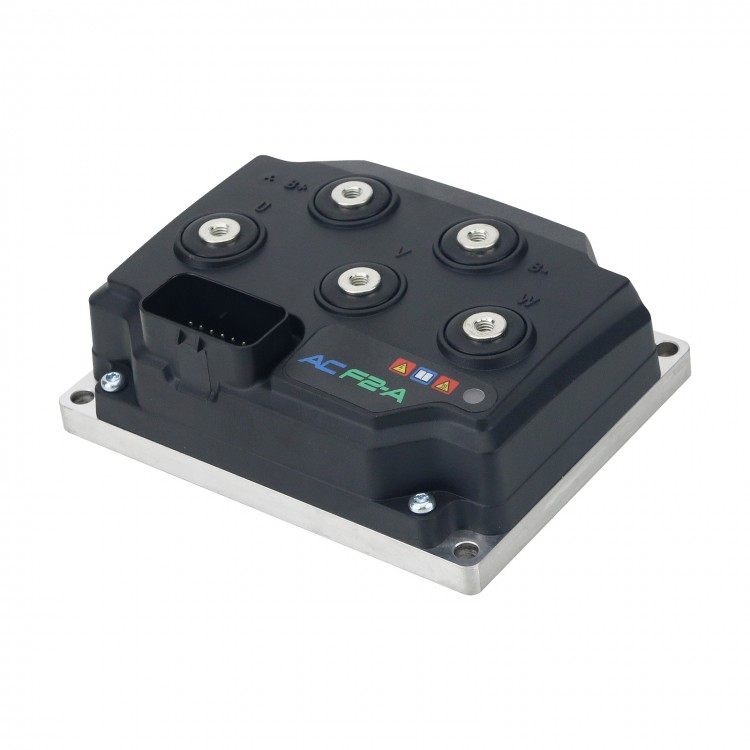

AC F2-A 24-200-001 (200A) Original AC Motor Controller Noblelift Program (24V/Manual DT) for Curtis

AC F2-A 24-200-001 (200A) Original AC Motor Controller Noblelift Program (24V/Manual DT) for Curtis

Description:
The AC F2-A Motor Controller provides accurate speed and torque control of 3-phase AC induction, PMAC and BLDC motors.

AC F2-A is optimized for use as a traction controller on 1.0 ton-2.0 ton Class III pedestrian-operated powered pallet trucks. The controller is also suitable for traction or hydraulic pump control on other types of battery powered vehicles. Vehicle designers can define and control the dynamic performance of vehicles' drivetrains. Model AC F2-A is also a powerful system controller that can operate as a commander device on the CANbus.

Features:
Fit for Purpose
• Field-oriented motor control algorithms maintain optimal performance for 3-phase AC motors under all operating conditions.
• Rugged housing with a small footprint for the power rating.
• Heavy duty M6 bus-bars for motor and battery connectors.
• Sealed, 23-pin seal I/O connector for AMP
• Impervious to most oils, solvents, degreasers and other chemicals often encountered by industrial vehicles.
• IP65 environmental protection as per IEC 60529.
• Exceeds global conformance requirements for functional safety, electrical safety and EMC.
• CE/UKCA marked as a programmable safety device.
• UL583 recognized component.

Motors
• Works with any AC induction, PMAC or BLDC motor.
• Motor automatic-characterization simplifies on-truck pairing with different induction motor types.
• Comprehensive library of AC motor types stored in controller memory.

You Feel It When You Drive It—Maximum Torque, Minimum Losses, Full Control
• Renowned field-oriented control algorithms and advanced PWM switching technology assure maximum torque and system efficiency across the entire torque/speed spectrum.
• Smooth and predictable drive control that only it can deliver.

Get More Out of Your Battery—Regardless of the Technology
• High-efficiency means more of your battery's energy is converted to motor output power.
• Configurable over-voltage and under-voltage protection parameters.
• Wide operating voltage range allows use with cell chemistries such as lithium ion.
• Configurable CANbus and VCL allow easy integration with the Battery Management Systems (BMS) typically found on lithium battery packs.

Powerful Dual Microprocessors
• Dual-micro architecture achieves up to PL=d, category 2 functional safety under EN ISO 13849-1:2015 and EN 1175:2020.
• Blazing processor speeds for precise regulation of voltage, frequency and current.

Customize Your Vehicle with VCL
• The Vehicle Control Language (VCL) enables original AC Motor Controllers for Curtis to operate as system controllers, eliminating the need for costly additional controllers.

Flexible I/O
• All I/O pins are multi-function, and can be configured to provide up to:
  – Seventeen digital Inputs
  – Nine analog Inputs
  – Two potentiometer sources
  – Five output drivers, including proportional valve driver
  – Quadrature encoder input
  – Sine/Cosine sensor input

Comprehensive CAN Capabilities
• Configurable 11 or 29 bit protocol support for CANopen or J1939 use.
• Plug and play support for Curtis CAN displays and CAN tiller heads from leading manufacturers for FREI and REMA.
• Fully CANopen compliant per CiA 301.
• Acts as a "CAN interpreter" that allows third-party CAN devices with differing profiles to work on the same CANbus.

Diagnostics
• Status LED for at-a-glance system troubleshooting.
• Thermal cutback, warning and automatic shutdown protect the motor and controller.
• Error logging, fault history and CAN Emergency Messages.

CAN-based Programming
• Programmable over the CANbus.
• Supports most CAN-based service tools used by major industrial truck manufacturers worldwide.
• Develop, configure, optimize and debug vehicle systems with the original Integrated Toolkit for Curtis.

Package Included:
• 1 x Motor Controller

Note:
• Battery is not included in the package.

Packaging Details:
• G.W.: 1.2kg
