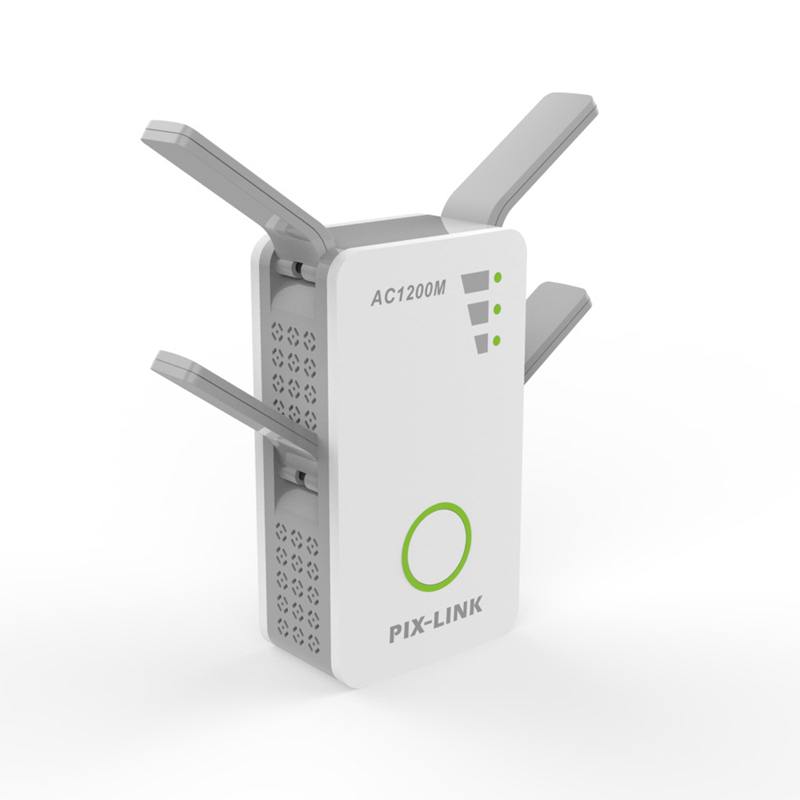

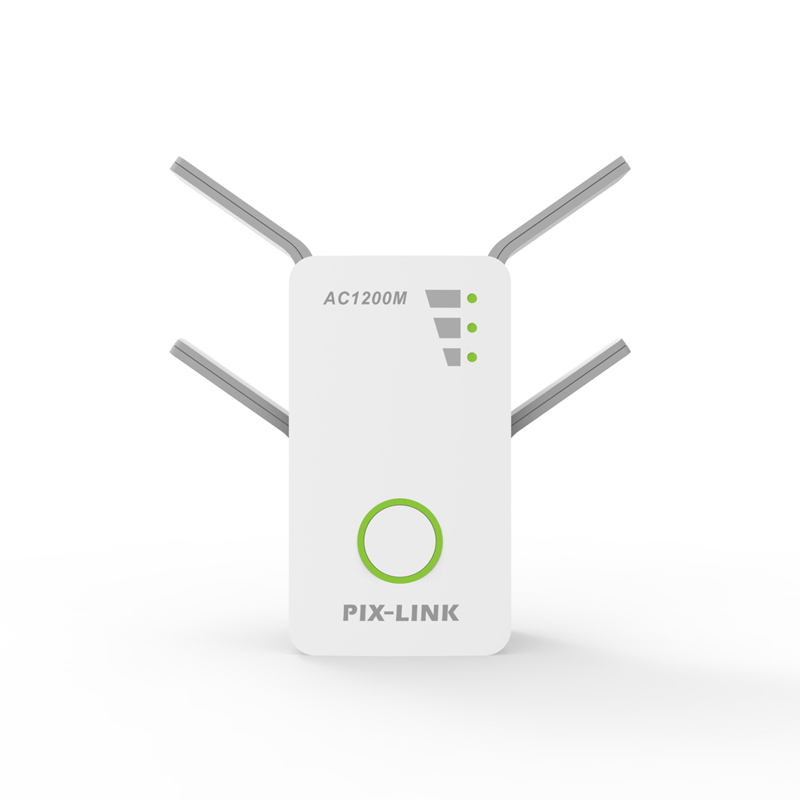

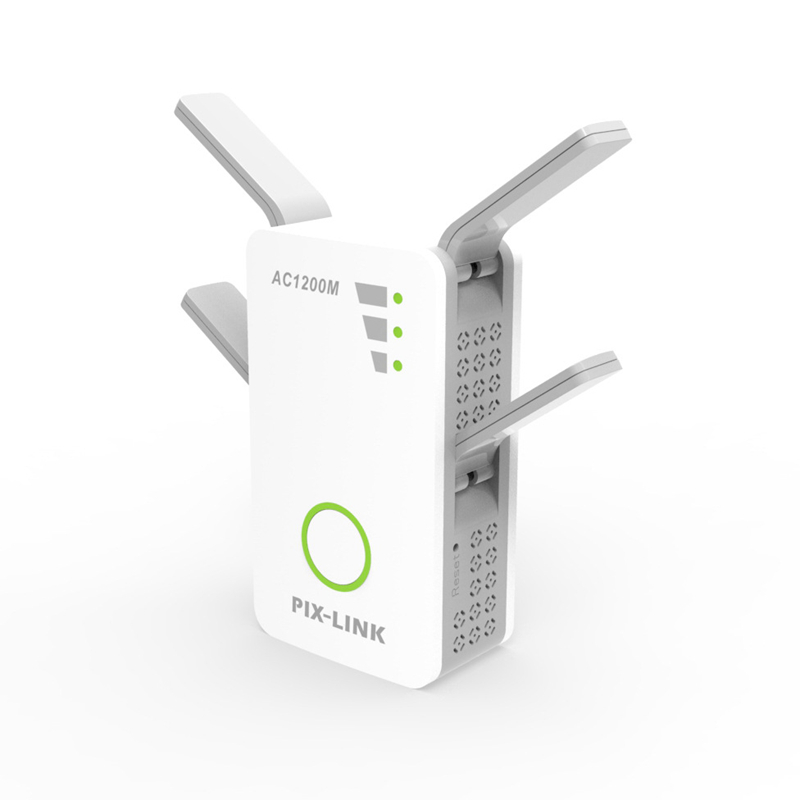

AC1200M Dual Band Wifi Repeater Router Wireless Range Extender Wifi Signal Amplifier For 2.4G & 5G

AC1200M Dual Band Wifi Repeater Router Wireless Range Extender Wifi Signal Amplifier For 2.4G & 5G

Product Details:
- Wireless standard: IEEE802.11AC, compatible with IEEE802.11B / G / N
- 4 external antennas
- Working mode: router / repeater / AP / client
- Frequency: Support both 2.4GHz & 5.0GHz
- Dual frequency repeater is mainly used to provide wifi service in large areas such as factories. For example, it can be applied to communities, streets, etc.. Ordinary enhancers can increase the distance.
- If there are more repeaters or large power repeaters, the scope is further expanded
- Support 2.4G and 5G wireless network connection

Features:
- Four external antennas. Support 2.4GHz / 5GHz dual-band WiFi, extend your wireless signal, let you enjoy wireless network
- Ethernet port (10 / 100Mbps) allows the extender to connect to wired devices as a wireless adapter
- Security Encryption: Use WPS function, press WPS button to realize wireless encryption setting
- Multi-function: Support router, client, repeater, AP, WISP operation modes
- Double-sided heat dissipation design to ensure that the extender cools when working, improve service life and WiFi stability
- Adopt plastic shell, anti-collision, wear-resistant, durable, removable plug design
- Installation and use. Small size and wall-mounted design make it easy to deploy and move flexibly, does not take up more space for you, allows you to manage network settings

Performance Parameters:
- Interface: WAN port, LAN port (1 x 10/100Mbps)
- Input power: AC 100-240V, 50/60Hz
- Signal rate: 2.4GHz: up to 300Mbps; 5GHz: up to 867Mbps (dynamic)
- Coverage area: 100m
- Wireless security: support 64/128 bit WEP, WPA-PSK / WPA2-PSK, 802.1X
- Number of USB ports: not supported
- Standards and protocols: Wi-Fi 802.11a, Wi-Fi 802.11b / g / n
- VPN: yes
- WAN port: 1
- Wi-Fi support frequency: 2.4G and 5G
- Wired transmission rate: 10 / 100Mbps

Hardware Features:
- Plug type: EU, UK, US, AU
- Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Interface: 1 × 10 / 100Mbps LAN port; 1 × 10 / 100Mbps LAN / WAN port
- Button: WPS button, Reset Button
- Antenna: 4 * external
- Dimensions: 122.5 x 77.0 x 40.5 mm (W × D × H)

Wireless Characteristics
- Frequency: 2.4GHz and 5GHz (11AC)
- Signal rate:
* 5GHz: up to 867MbPs;
* 2.4GHz: up to 300 MPBS
- 5GHz:
* 11a6MbPS: -93dBm @ 10%
* 11A54 Mbps: -76dBm @ 10%
* 11AC-HT20MCS8: -69dBm @ 10%
* 11AC-HT40MCS9: -64 dBm @ 10%
* 11AC-HT80MCS9: -61dBm @ 10%
- 2.4GHz:
* 11g 54m: -78dBm @ 10%
* 11N HT20MCS7: -75 dBm @ 10%
* 11N HT40MCS7: -73dBm @ 10%
- Transmitting power: <20dBm (2.4GHz); <18dBm (5GHz)
- Wireless mode: repeater / AP / router
- Wireless security: 64/128/152 bit WEP; WPA-PSK / WPA2-PSK

Package Included:
- 1 x Wireless AC Repeater / AP / Router
- 1 x RJ-45 Ethernet Cable
- 1 x Quick Installation Guide
