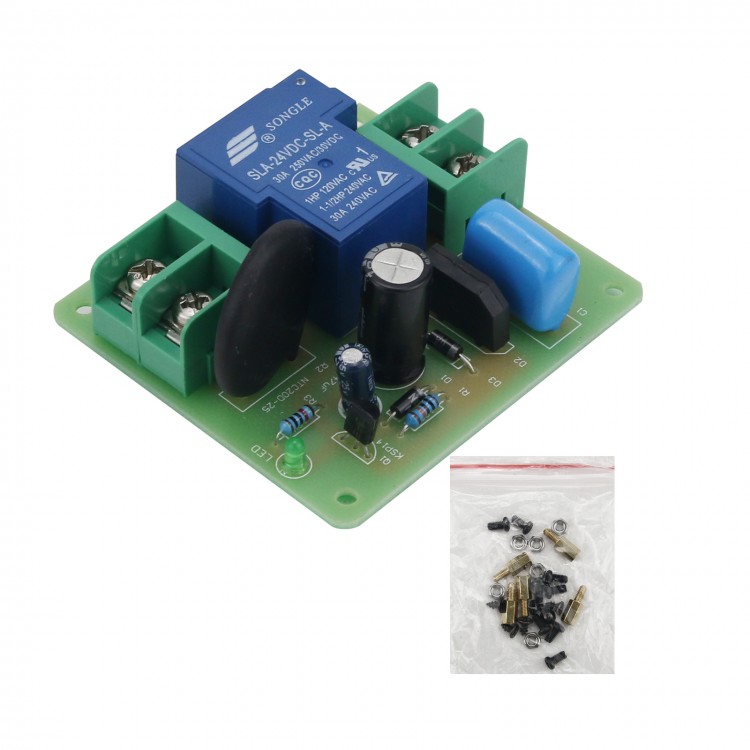

AC150V-280V 100A Amplifier Soft Start Board Power Soft Start Board for Class A Amplifier Finished
Specifications:
- Item Name: High-power Soft Start Board Finished
- Dimensions: 67 x 61 x 30mm (L*W*H)
- Suitable For: High-power or Class A power amplifier input, other machines with large starting current. Recommended power within 4000W.
- Applicable Power Supply: AC150V-280V.
- Tested and ready to use
Features:
- Adopting 100A relay with pure copper pins and large thermistor NTC 20D-20, it effectively protects your machines and prevents excessive starting current.
- Requires no auxiliary power supply.

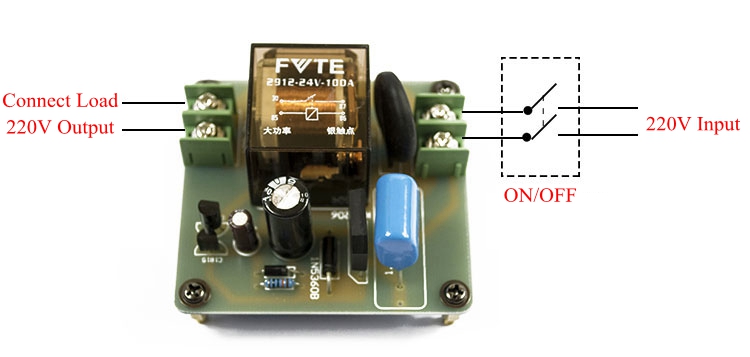

- Convenient to use: There are two terminals. One is connected to your power supply (previously connected to an extra switch), and the other output is connected to your load.
Package Included:
- 1 x Amplifier Soft Start Board
Note:
- Please not dismantle any components on the board. Thank you!
- Please note that this item is not equal to a relay switch.
