Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $18.37 | $17.99 | $17.43 | $16.68 | Contact US |

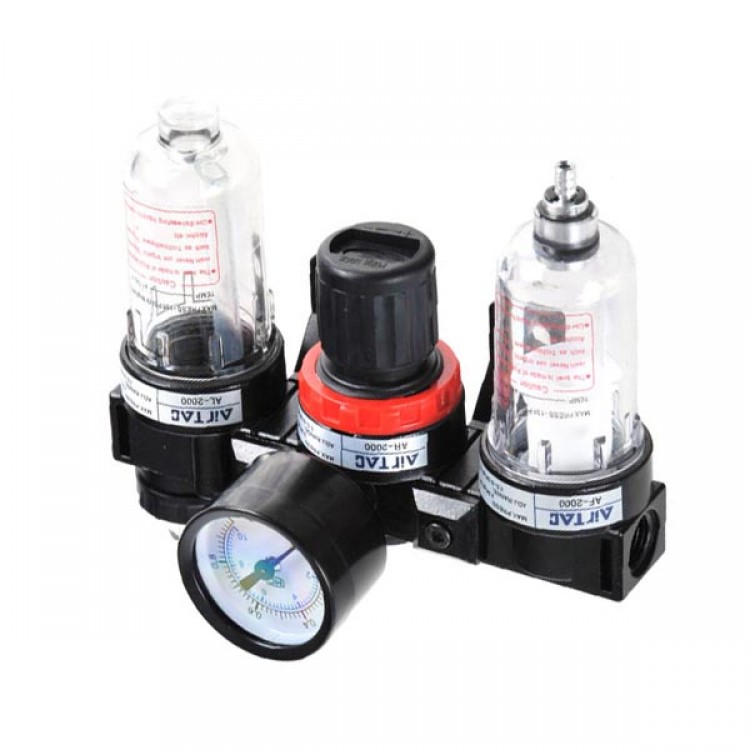

AC2000 Air Source Regulator Lubricator Treatment Unit Pneumatic Lubricator+Filter+Regulator
AC2000
Model | AC2000 | |
Fluid | Air | |
Port size | G1/4'' | |
Filtering grade | 40μ | |
Pressure range | 0.05 ~ 0.85MPa | |
Max. pressure | 0.95MPa | |
Proof pressure | 1.5MPa | |
Operating temperature | 5 ~ 60C | |
Drain bowl capacity | 15 cc | |
Oil bowl capacity | 25 cc | |
Recommended lubricant | ISO VG 32 or Equivalent | |
Weight | 0.7 KG | |
Material | Body | Aluminum die-cast |
Bowl | PE | |
Bowl guard | - | |
Component | Filter | AF2000 |
Regulator | AR2000 |
