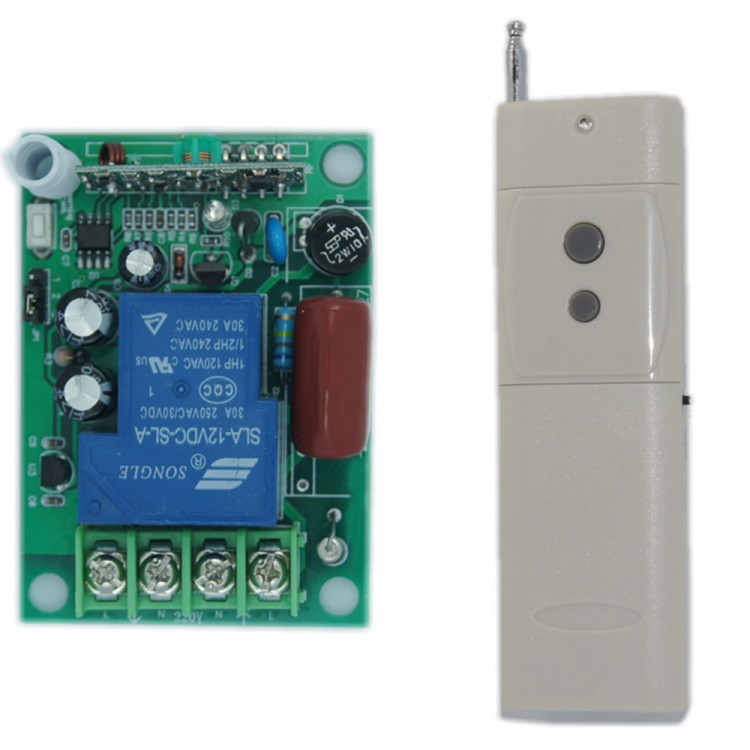

AC220V 1CH Wireless Intelligent Remote Control Switch 315MHZ Transmitter Receiver for DIY Lights Motor

AC220V 1CH Wireless Intelligent Remote Control Switch 315MHZ Transmitter Receiver for DIY Lights Motor

Description:
This product is for remote typrs like switch, pump, motor ,socket, LED, alarm, door, curtain, car , vehicles, MP3, lights ,car and thter security products. It is for DIY. The power supply is 220V. There is a independent relays for signal output. There are open ,closed and common end that have no voltage.It is applied for the following conditions. With 220V output and 220V load.

Specifications:
Transmitter:
- Operating Voltage: DC9V (9V battery)
- Operating Frequency: 315 MHz
- Shock resistance: 4.7M
- Chip: 2262/1527
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 135*43*23mm
- Modulation: ASK
- Encoding: welding/encoding
- Distance: 3000m

Receiver:
- Operating Voltage: AC220V
- Operating Frequency: 315 MHz
- Working: Self-locking, Interlock,inching
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 70*51*20mm(inner board);75*55*28mm(with shell)
- Code mode: Smart learning
- Output: 220V output
- With shell
- Max. load: inductive<=10A,Resistive current<=13A

Package included:
- Remote Control Switch x 1
- Receiver x 1
