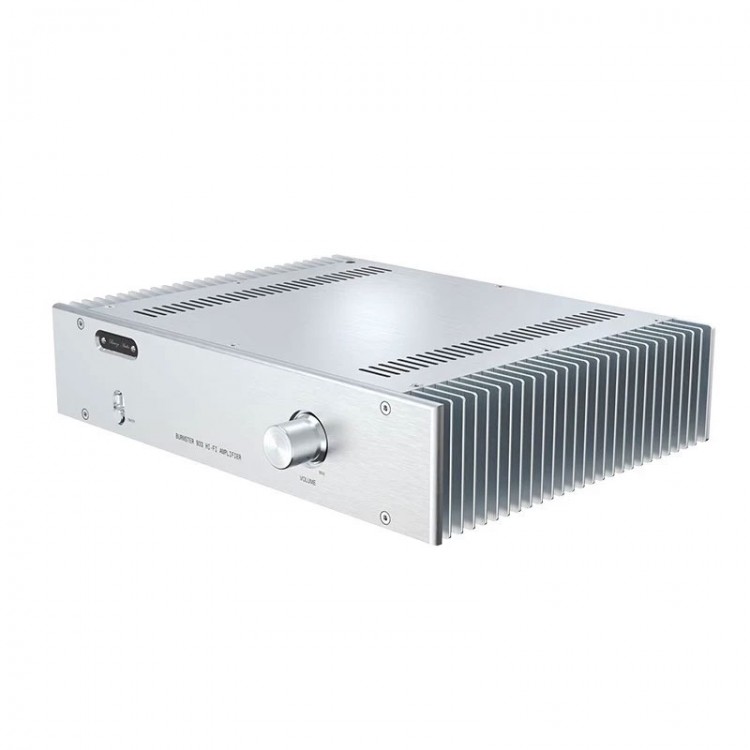

AC220V Standard Dissipation Version Classic HiFi Audio Power Amplifier HIEND Replacement for Burmester 933

AC220V Standard Dissipation Version Classic HiFi Audio Power Amplifier HIEND Replacement for Burmester 933

Features:
- It has low output impedance and high damping coefficient, and even the 933 with an output power of only 120W at 4ohm has considerable low-frequency control power. When paired with the speakers for Dynaudio series, it has excellent performance and gorgeous sound.
- The fully symmetrical dual input adopts current feedback technology, and the main feature of the circuit is that it adopts a complementary push-pull circuit from the input pole to the output pole. The structure is relatively simple, and can easily obtain a conversion rate of hundreds of volts per microsecond, which is quite excellent for driving capacitive loads.
- For SAK original large tube 2SC3264 2SA1295, which has excellent treble clarity and excellent sound quality.
- Enough power reserve, giant A-core non break point transformer, sufficient to meet the demand for high-capacity speakers.
- The gold mounted large filtering capacitor array for NOVER has a total filtering capacity of up to 80000UF, with high-speed and high current discharge characteristics, allowing the entire machine to dive very deep at low frequencies.
- The Japanese ALPS27 large fully sealed potentiometer has a top-notch feel, lifespan, and accuracy.

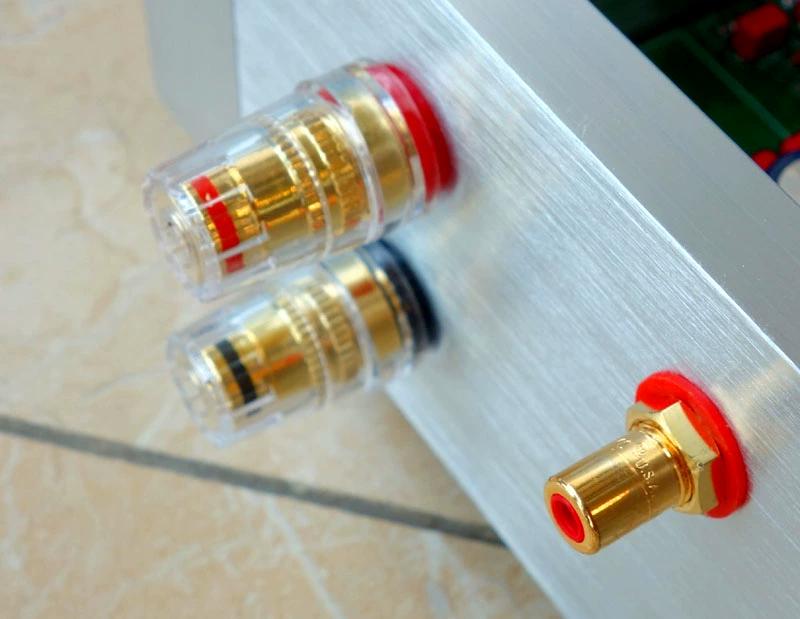

- The CMC816 24K gold-plated RCA input terminal is shiny and antioxidant.

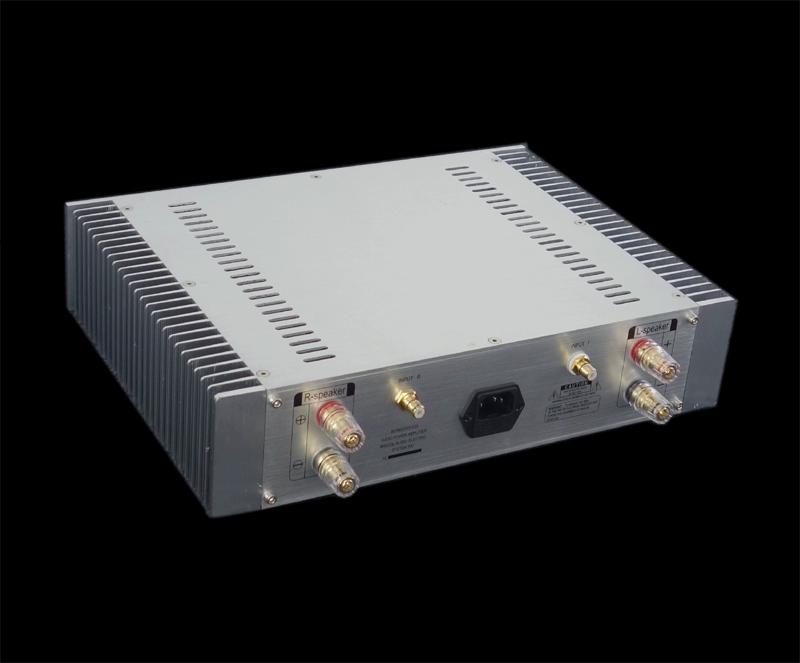

- Large pure copper terminal blocks, used year-round without blackening, with high output current.
- The Japanese 4N oxygen free copper signal cable for CANARE has high transmission purity and pure sound quality.
- A large number of imported fever capacitors are used, ensuring natural sound quality.
- DC protection system: automatically detect the internal wiring condition of the machine, automatically disconnect the circuit from the speaker, ensuring that the speaker is always working in a safe state.
- Anti impact delay system: prevents the speaker from being impacted immediately upon startup and removes the popping sound generated during startup.
- Temperature overheating protection system: When the temperature exceeds the safe range, it can automatically reduce the current and output, protecting the safety of the entire machine.

Specification:
- Frequency range: 10Hz - 40KHz (+/-3dB)
- SNR: 103dB
- Rated power: 120W x 2 at 8ohm; 150W x 2 at 4ohm
- Impedance range: 4 - 8ohm
- THD+N: <0.001%, 1KHz, 1W
- Input interface: RCA
- Voltage: AC220V 50 - 60Hz
- Size: L x H x D = 360 x 80 x 268mm (standard version)
- Weight: 9kg

Package Included:
- 1 x Power Amplifier
- 1 x 220V 3C Power Cable
