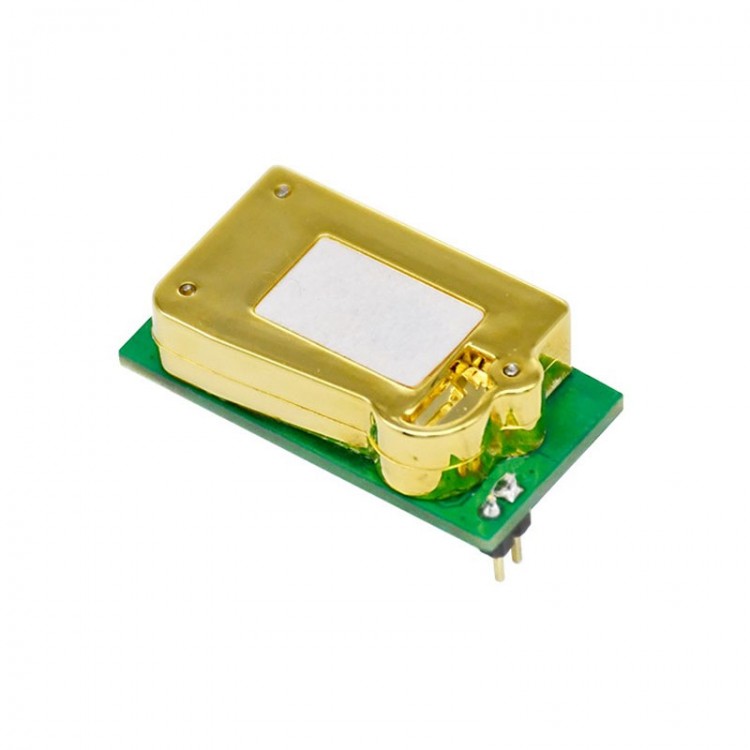

ACD10 Infrared Carbon Dioxide Sensor Module NDIR High Precision for Carbon Dioxide Gas Concentration Detection
Description:

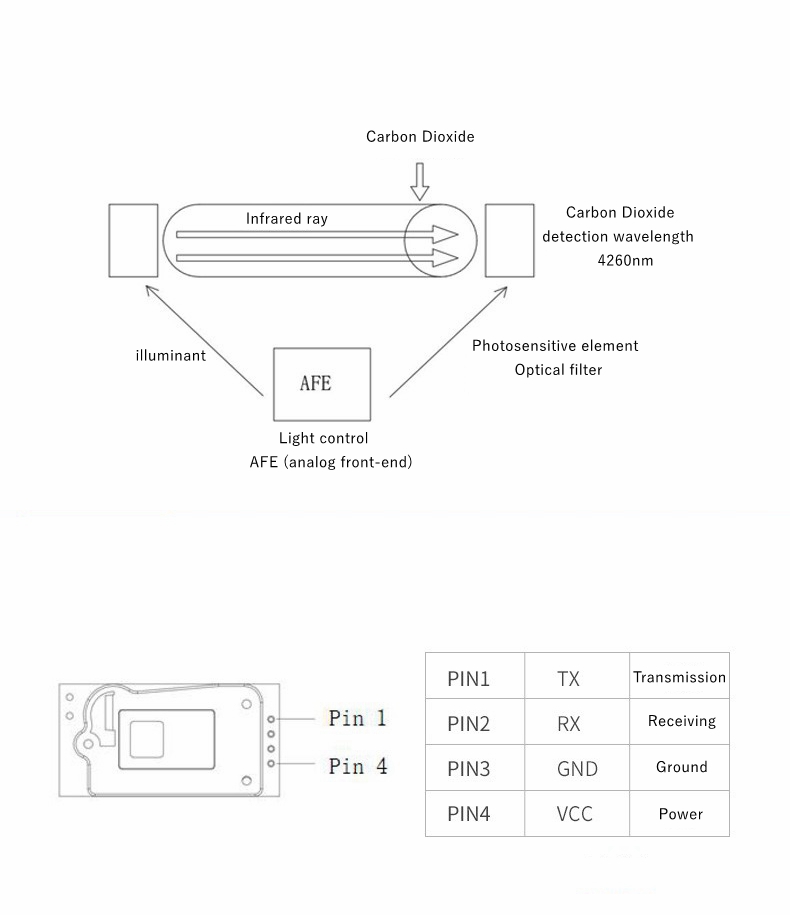

- ACD10 uses the principle of non-dispersive infrared (NDIR) to detect the concentration of carbon dioxide in the air. ACD10 has the advantages of good selectivity, no oxygen dependence, long service life, etc; Built-in temperature compensation; With digital interface output, easy to use. ACD10 is a high-performance sensor made by combining infrared absorption gas detection technology, precision optical circuit design and high-precision signal detection circuit design.
Application:
- ACD10 has a wide range of application and is applicable to air quality monitoring equipment, fresh air system, air purification equipment, heating, ventilation and refrigeration equipment and other equipment.

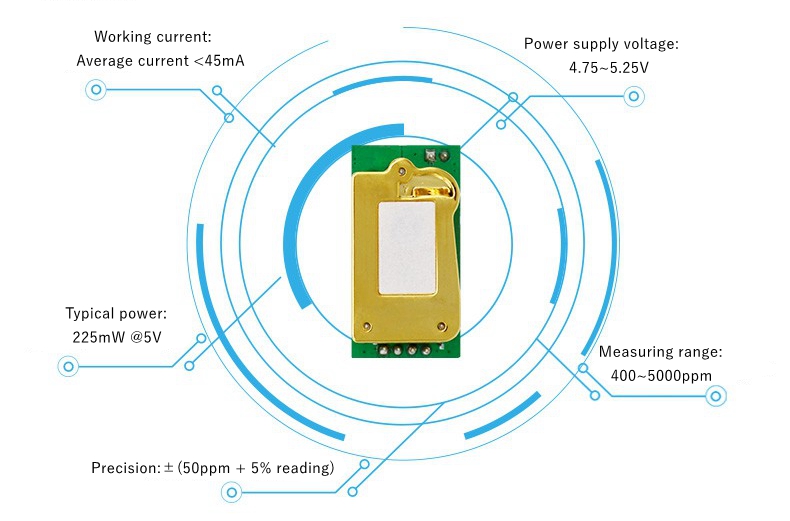

Parameter:
- Model: ACD10
- Working voltage: 4.75~5.25V
- Working current: average current<45mA
- Typical power: 225mW at 5V
- Measuring range: 400~5000ppm
- Precision: ±(50ppm + 5% reading)
- Warm-up time: 120s
- Operating condition: -10℃~+50℃; 0~95%RH (Non-condensing)
- Storage condition: -20℃~+50℃; 0~95%RH (Non-condensing)
Package Included:
- 1 x ACD10 Carbon Dioxide Sensor
