| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $283.65 | $277.86 | $269.18 | $257.60 | Contact US |
RoboMaster Lightweight NW-type Planetary Reduction Gearbox for Robot Driving Wheel with JA020XPO Rubber Seal Bearing
$89.51
RoboMaster Lightweight NW-type Planetary Reduction Gearbox for Robot Driving Wheel with KA020XPO Non Rubber Seal Bearing
$73.96
Robot Car Parts w/ Motors & 3DOF Robot Arm for 3-Mode Smart Cars (Differential + Ackerman + Mecanum)
$52.08

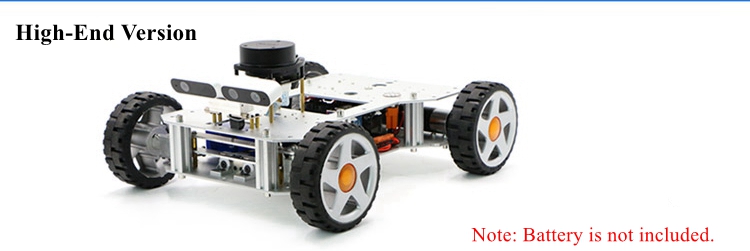

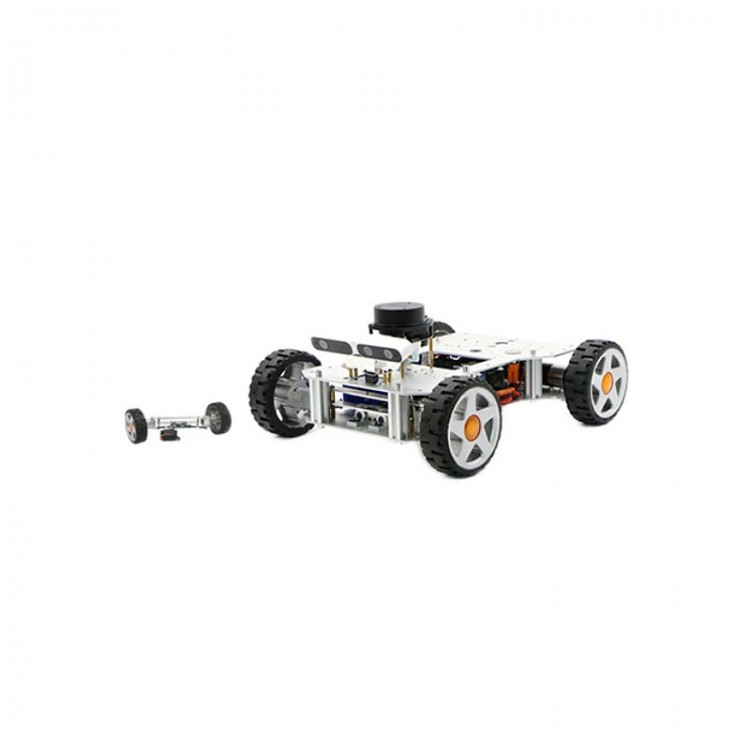

Ackerman Robot Car Smart ROS Car Assembled High-End Version With Front Wheel Steering Mechanism
Product Information (High-End Version):
- Minimum turning radius: 0.77m
- Servo: HWZ020 digital servo 20kg torque
- Driven wheel/driving wheel: 125mm solid rubber wheels
- Suspension system: Coaxial pendulum suspension, adapts to uneven ground
Servo Parameters (High-End Version):
- Servo: HWZ020 servo
- Maximum angle: 180°
- Voltage: 4.8-7.4V
- Torque: 20kg.cm
- Reaction speed: 0.14sec/60°
- Servo type: digital servo
- Gear: metal gear
- Working dead zone: 3us
- N.W.: 59.6g
Packing List:
- 1 x Set of Robotic Car
Note:
- It is assembled.
- Battery pictured is not included.
