Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $31.07 | $30.43 | $29.48 | $28.21 | Contact US |

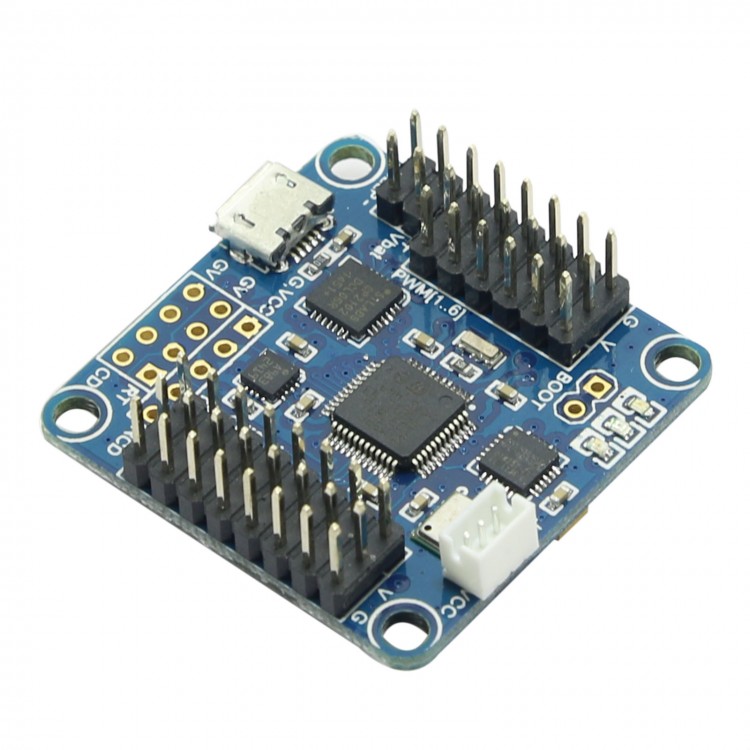

Acro Afro Naze32 NAZER 32 10DOF Opensource Flight Control for QAV Multicopter Competition w/ Compass Barometric Meter
Note: we dont provide technical support for the opensource flight control product !
- Wheelbase between 200-550mm
- Base on Multiwii second development
Features:
Battery voltage monitoring
Built-in FrSky telemetry converter
Modern 32-bit processor (STM32 F103) running at 3.3V/72MHz.
10DOF
Onboard USB for setup and configuration
Extra bright LEDs
Modern GUI for all operating systems, Baseflight Configurator
Specifications:
Height: 36mm
Width: 36mm
Weight: 6 grams (no headers, 8 grams with)
Sensors: MPU6050
Headers: Includes 1x 3x6 90 degree pin headers, 1x 1x2 straight pin headers, 1x 2x3 90 degree pin headers, and 1x 2x5 straight pin headers.
Additional Notes:
If you do not have a CPPM enabled Receiver, you will also need to purchase the RC Breakout Cable.
