Acrylic Shell Kit 1000W DIY Disc Generator Permanent Magnet Core-less Generator Wind Power Hydraulic Generation

Acrylic Shell Kit 1000W DIY Disc Generator Permanent Magnet Core-less Generator Wind Power Hydraulic Generation

Description:
- Disc-type core-less generator, coil: 1.18mm, housing: 10mm thick, shaft diameter: 20mm, stability and strength greatly increased, for everyone's convenience refit provides front and rear double shaft, front shaft diameter 20mm, rear shaft diameter 12mm, coil thickness 10mm, sealed with fiber cloth and epoxy resin, high waterproof strength. The rotor USES 24 rare earth neodymium iron boron strong magnetic, N45.
- Size of magnetic steel: 30mm x 20 x 10mm, thickened magnetic steel, the back of the magnet adopts 3.5mm high permeability pure iron plate.Iron plate baking paint rust - proof and waterproof, maximize the magnetic induction line loop, magnetic field concentration.Improve efficiency. This generator is used in a wide range of free energy fields, wind power, water power, manpower, internal combustion engine, electric vehicle, etc.

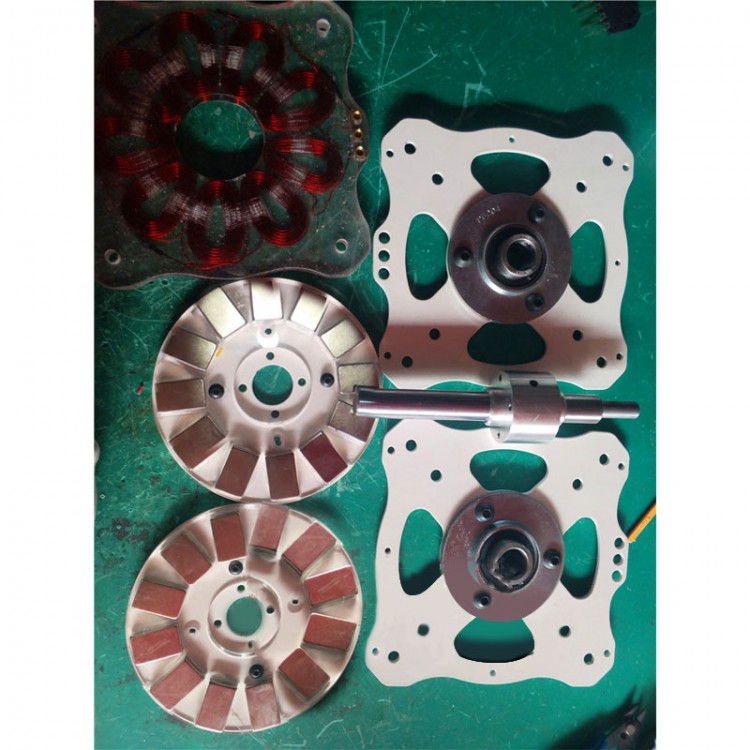

- The disc-type core-less generator is composed of two parts, the rotor and the stator. It is a double-rotor structure, and the stator armature is placed in the middle of the double-grasping rotor to form a double-air gap structure with the stator.As long as the stator design is reasonable and the manufacturing is accurate, the magnetic tension of the rotor on both sides of the rotor can be balanced with each other during operation, so that the bearing is not subject to axial force and the service life of the motor can be extended. The magnetic steel is directly bonded to the rotor. The windings of the motor have no groove and no core structure, which can reduce the electromagnetic torque ripple caused by the tooth groove effect and bring many disadvantages caused by the core. Moreover, because the armature winding has no iron core, the magnetic circuit does not exist the saturation problem, the calorific value reduces, causes the motor mass to reduce, the loss is low, the efficiency increases. Because there is no magnetoresistance problem without iron core, it has the advantages of low start resistance torque, high power density and smooth operation at low speed. Its dynamic performance is very superior, which is very suitable for direct drive wind power generation with low wind speed, and it can realize light wind starting and light wind power generation.It is also well suited to areas where free energy requires high efficiency.

Parameter:
- Size: 185 x185
- Generator shaft: 20mm /12mm
- Generator rotor: 12 pairs of magnetic stages, 150mm
- Generator coil: 9 coils, wire diameter 1.18mm
- Generator power: 1000w
- Generator speed: 120-1500
- Generator voltage: 1-100v
- Generator current: 1-35A

Package Included:
- 1 x Generator Kit
