AD585 Voltage Reference Resistor Reference 10/7.5/5/2.5/1.24V for 3 ½ or 4 ½-digit Multimeters
Read before Purchasing:

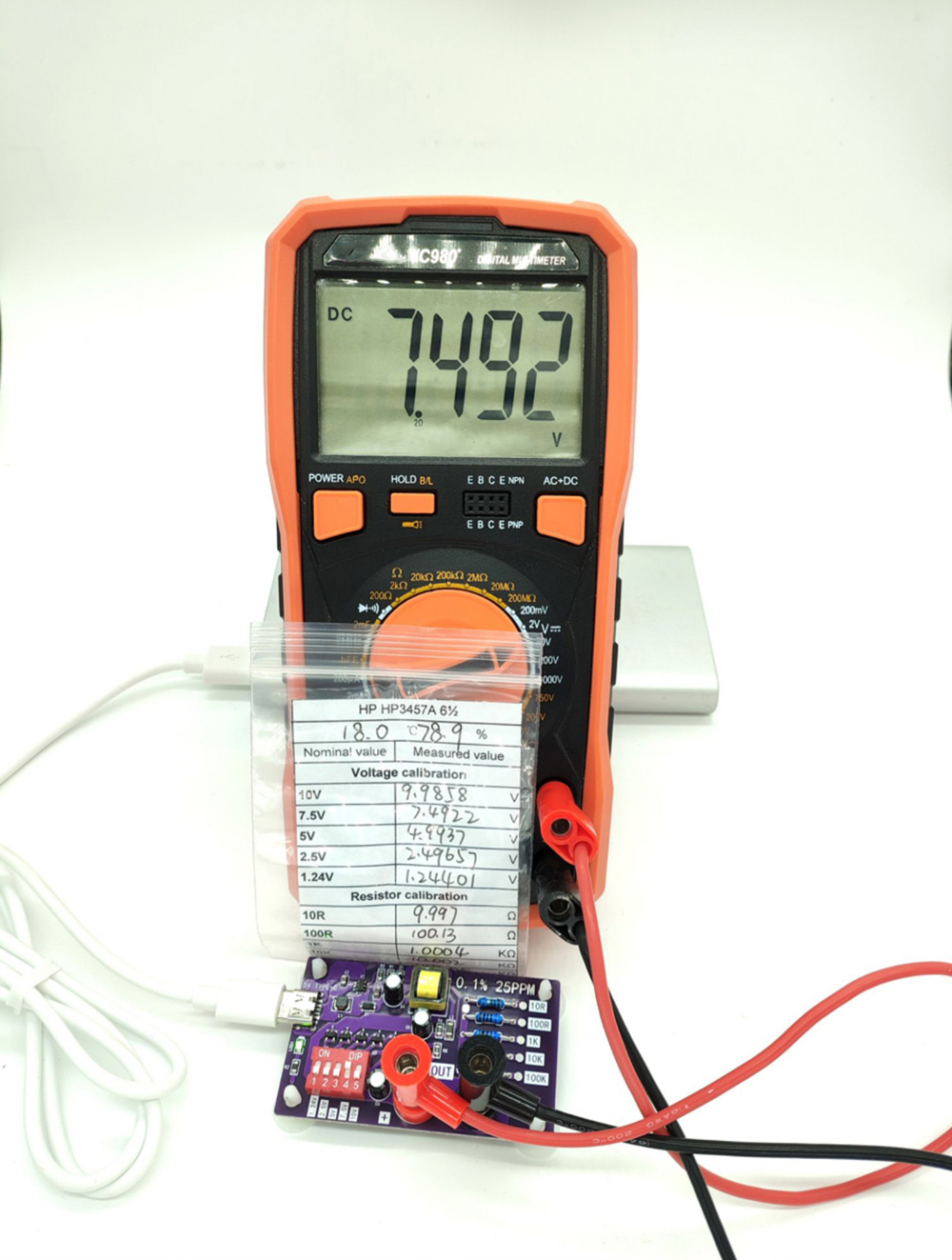

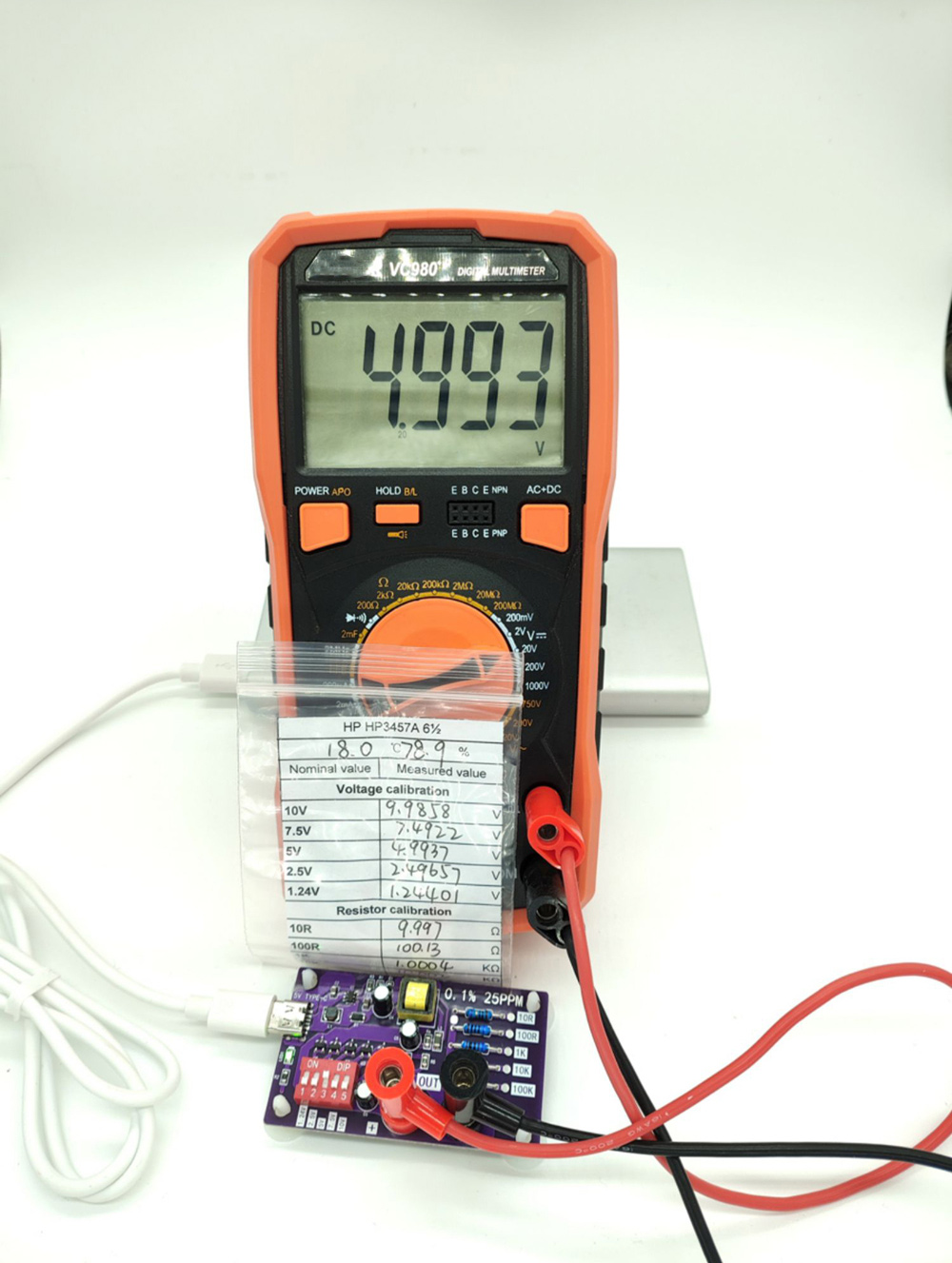

Before delivery, this product is calibrated with an original 6 ½-digit multimeter for HP. The data is in the table. Please rest assured to purchase.
Description:
The AD585 reference module is powered by type-c port 5V. The working current is only about 15mA. Any USB port can be used to supply power.
All voltage levels 10V/7.5V/5V/2.5V/1.24V are not integers. The actual ones are close to these values, because they are calibrated with a high-level multimeter. The reference module makes it easier to check whether your multimeter is accurate and linear.

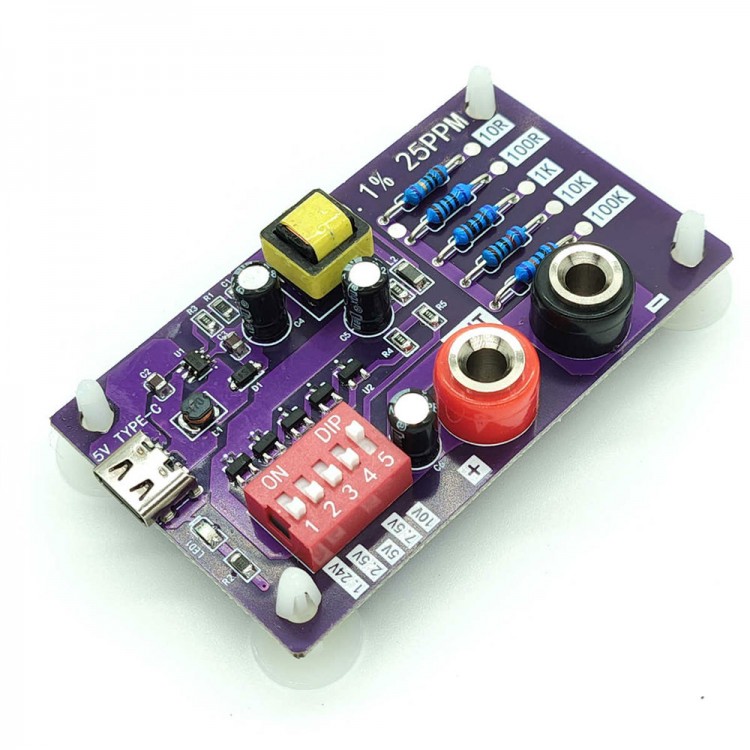

The module provides voltage and resistance reference:
* 5 voltage levels: 10.000/7.500/5.000/2.500/1.24V. These 5 levels are selected by dip switches.
* 5 resistance levels: 10R/100R/1K/10K/100K. 0.1% 25PPM low-temperature-drift resistors with copper pins are used.
Purpose:

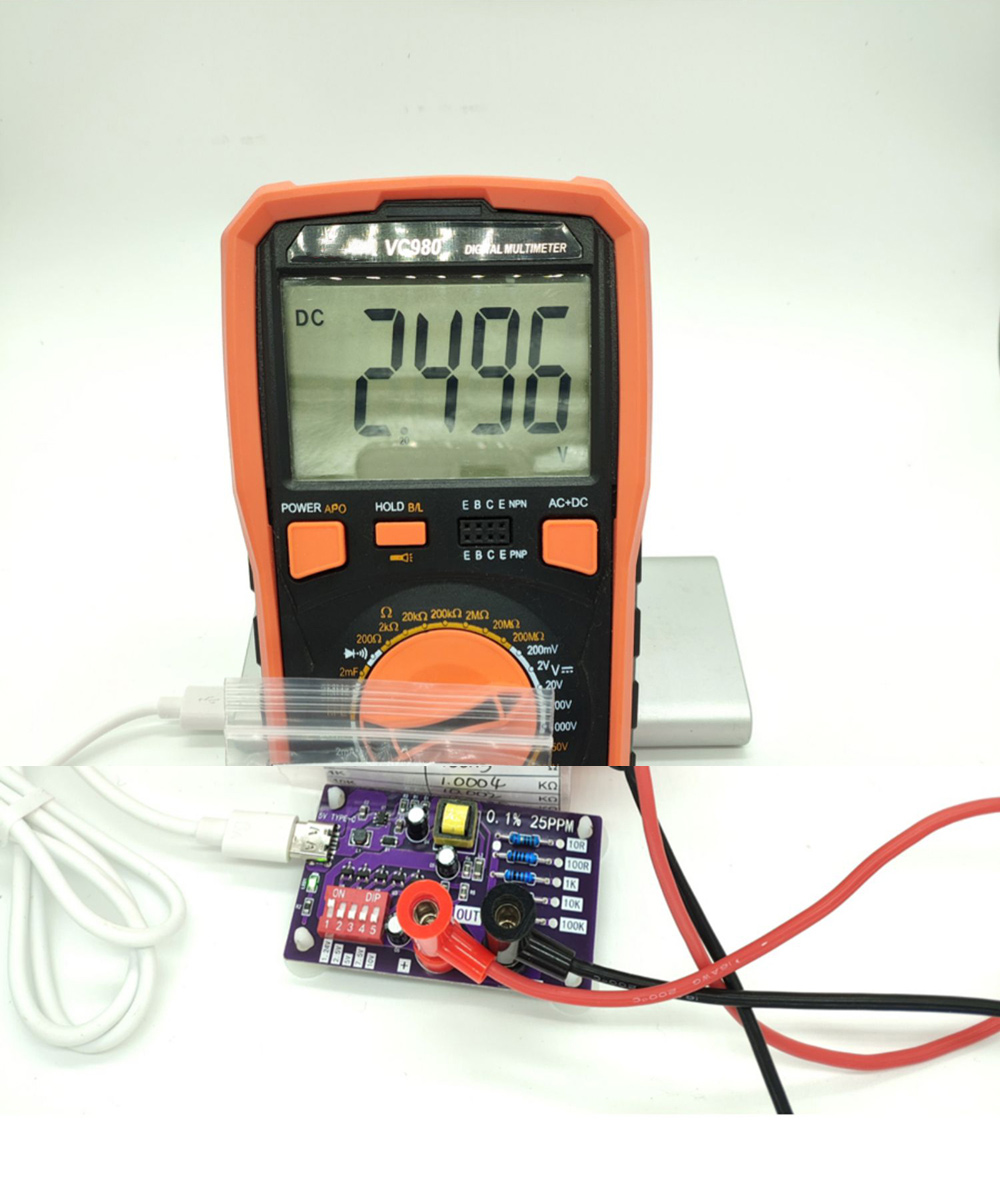

* Check whether your 3 ½-digit or 4 ½-digit handheld multimeter is accurate and whether the linearity is good.
Features:

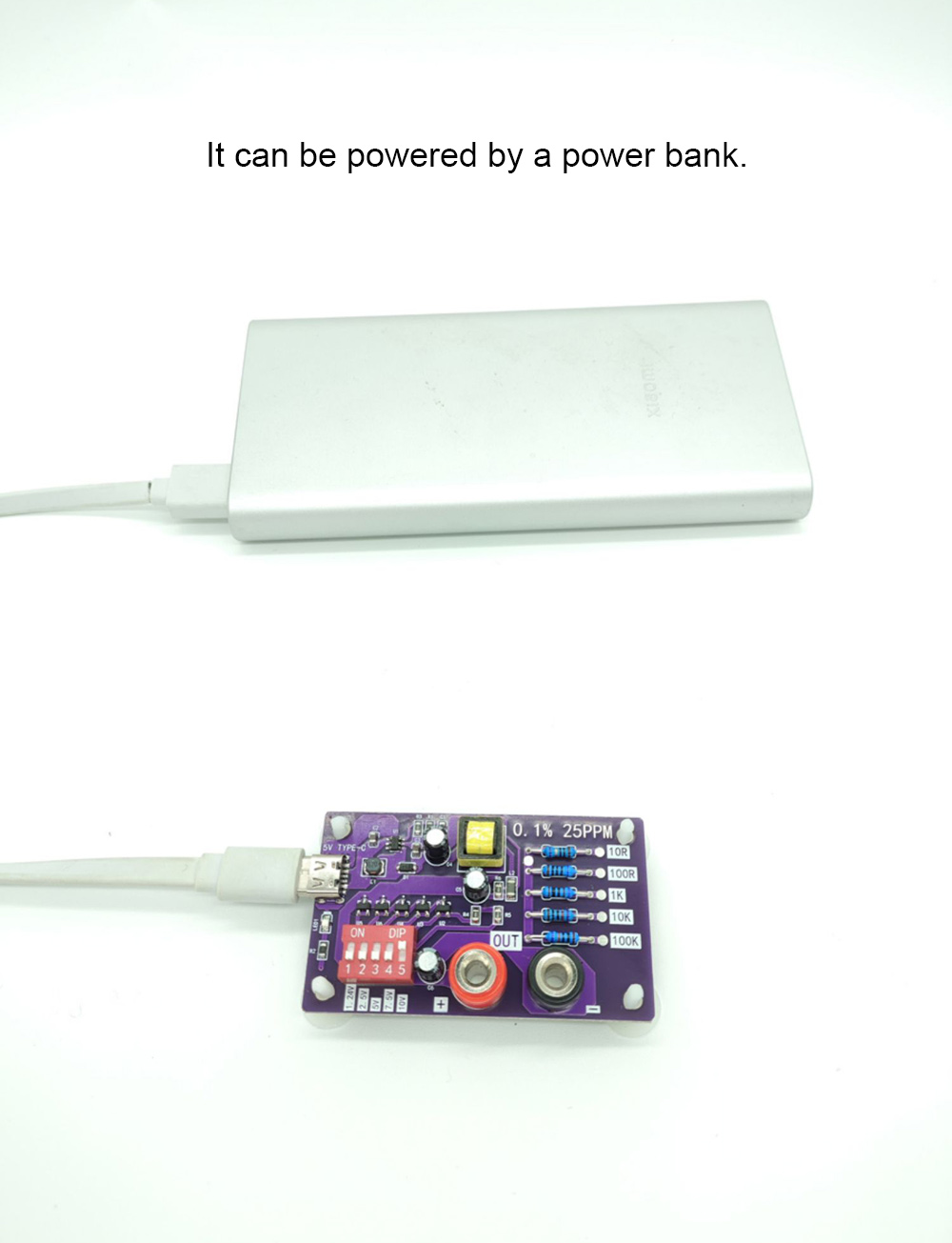

* Can be powered by a power bank
* 5 voltage levels: 1.24V/2.5V/5.0V/7.5V/10V
* Powered by 5V type-c. Mobile phone charger, laptop USB and power bank can be used to supply power
* DIP switches to switch voltage levels
* Using HP3457A for data calibration
Package Included:
* 1 x Set of Voltage Resistor Reference Module
Packaging Details:
* Weight: 0.25kg
Note:
* Storage box is not included.
* Multimeter and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
