AD7606C-16 Data Acquisition Module 16-Bit 1Msps DAQ Supports 8 Single-Ended 4 Differential Channels

Module Introduction:

The AD7606C-16 is an 8-channel, 16-bit synchronous sampling Analog-to-Digital Acquisition System (DAS). Each channel includes input clamp protection, a Programmable Gain Amplifier (PGA), a Low Pass Filter (LPF), and a 16-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). The AD7606C-16 also features a flexible digital filter, a low-drift 2.5V precision reference voltage source, a reference voltage buffer for driving the ADC, and flexible parallel and serial interfaces.

The input clamp protection can withstand up to ±21V of voltage. For applications with lower throughput rates, the AD7606C-16's flexible digital filter can be used to improve noise performance. In hardware mode, the AD7606C-16 is fully compatible with the AD7606 and AD7606B. In software mode, additional advanced features are available, such as configuring the input voltage range, enabling high bandwidth mode, and more.

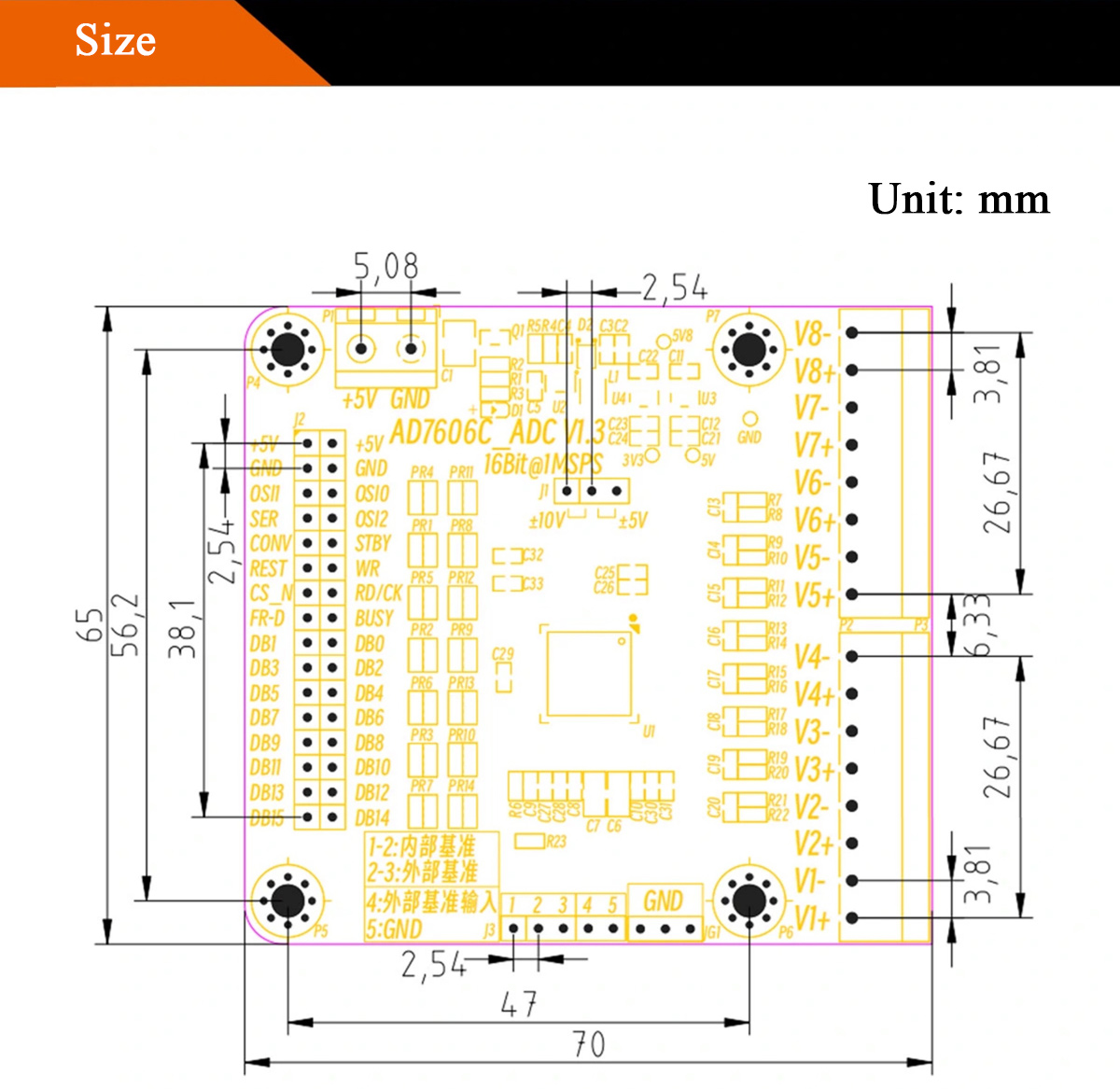

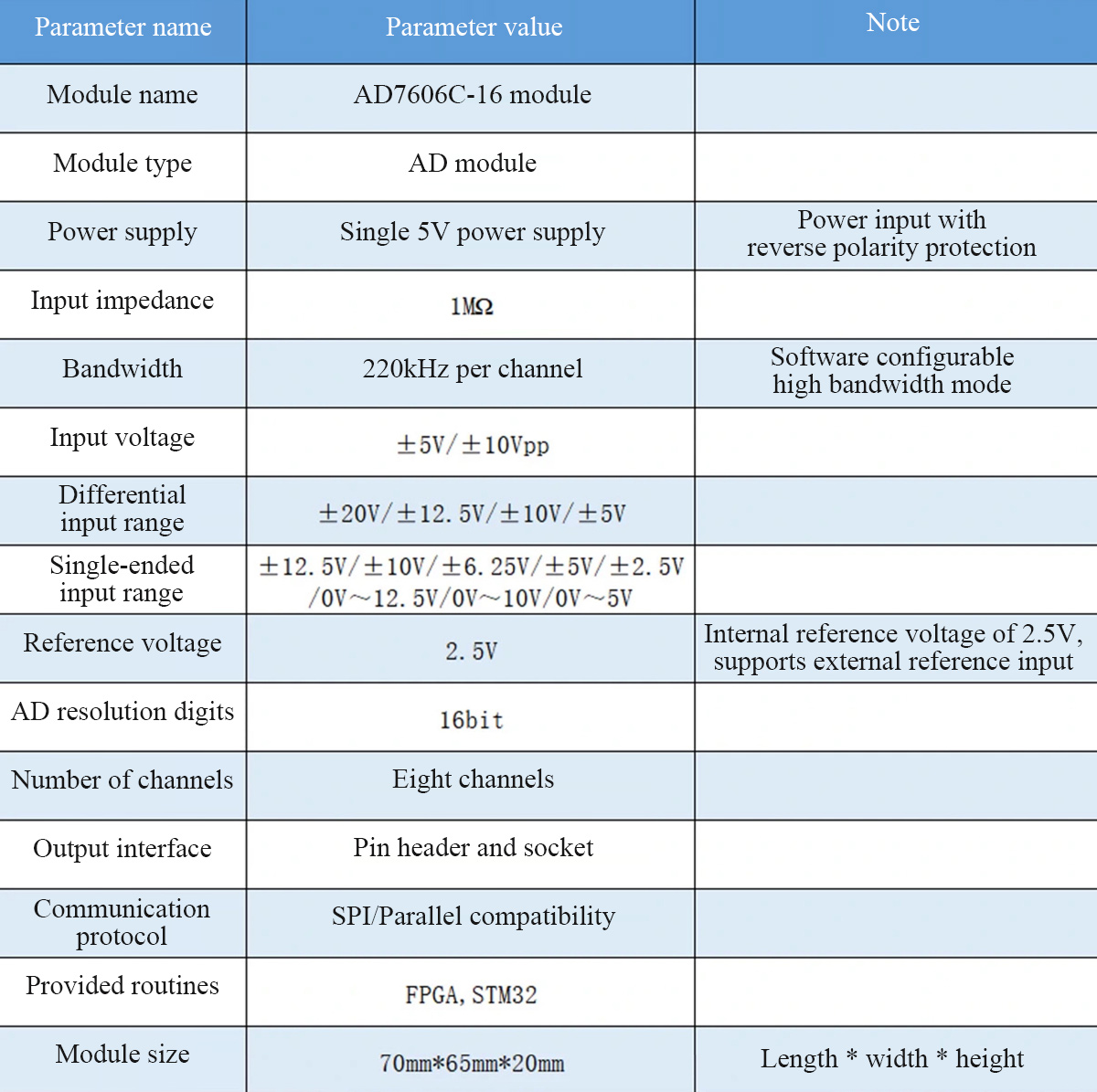

Main Parameters:
- Item Name: Multi-channel high-precision AD module
- Module: AD7606C-16
- Channels: 8 channels single-ended / 4 channels differential
- ADC Resolution: 16 bits
- Sampling Rate: 1 Msps (synchronous)
- Input Range (MAX.): ±12.5V (single-ended bipolar); 0~12.5V (single-ended uni-polar); ±20V (differential bipolar) & Input (1MΩ impedance)
- Analog Input Bandwidth (-3dB): 220kHz in high bandwidth mode; 25kHz in low bandwidth mode (each channel can be software-configured)

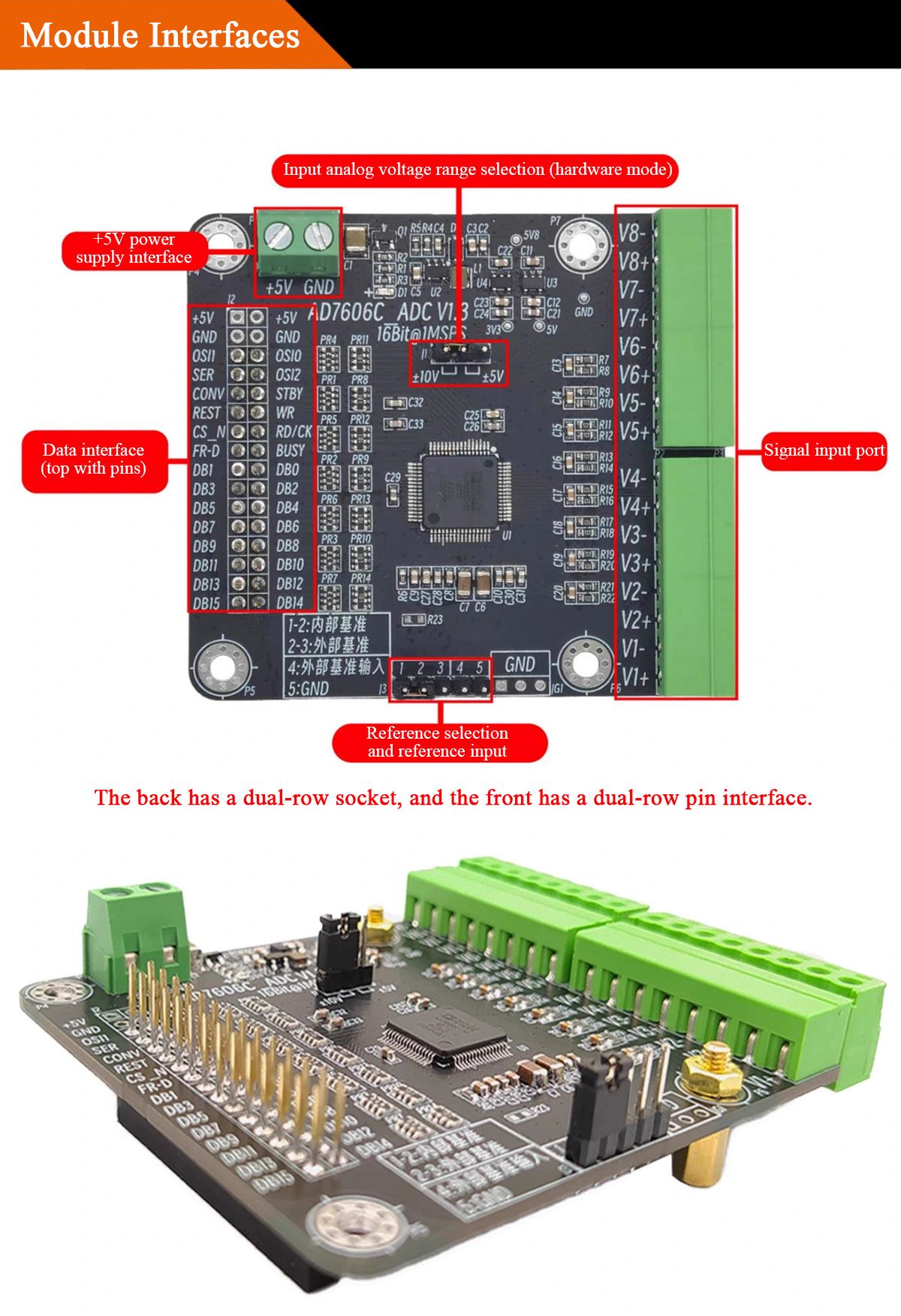

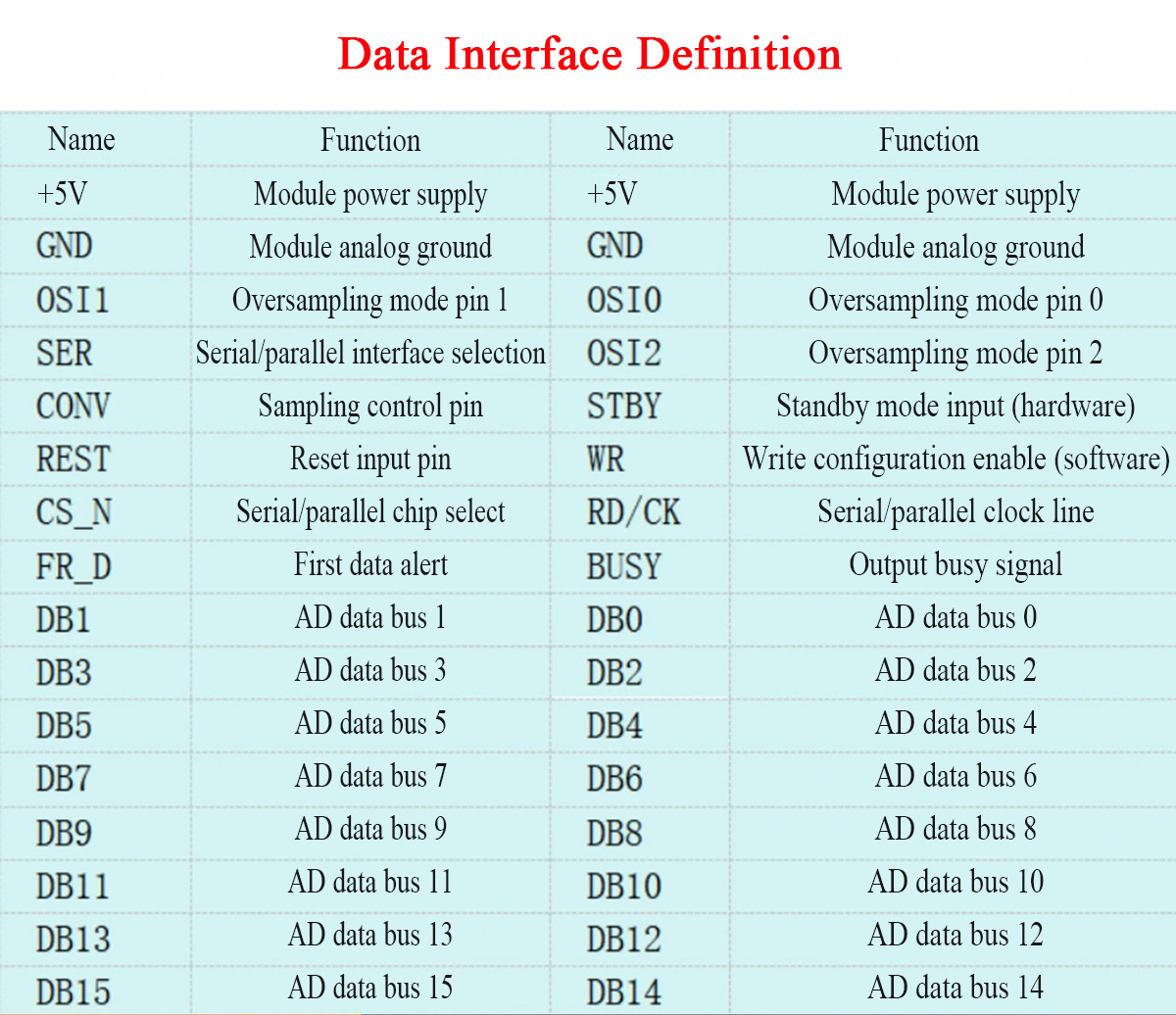

- Data Interface Type: Serial/Parallel Interface
- Note: SPI serial driver is used, with driver examples for microcontrollers and FPGA provided. FPGA drivers can achieve the maximum sampling rate as specified in the chip manual.

Special Notes:

- The AD76xx module series supports both serial and parallel interface drivers. Typically, FPGA parallel driving is required to achieve the maximum sampling rate. The microcontroller driving performance depends on parameters such as clock frequency and IO speed. For example, the F1 series can reach tens of kHz, and the H7 series can reach up to hundreds of kHz (for reference only).
- It supports software mode, allowing configuration of additional parameters like voltage input range.
- The AD7606C-16 has an analog input bandwidth of up to 220kHz and supports true differential input, making it more suitable for high-speed signal acquisition at the hundred kHz level for multi-channel applications.

Package Included:
- 1 x Module

Packaging Details:
- Weight: 0.4kg
