AD7793 K Thermocouple Module Precise Temperature Sample Module PT100 Cold-Junction Compensation

Availability: Out Of Stock

  • Price:$17.95
  • Price in reward points: 180 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.59 $17.23 $16.69 $15.98 Contact US
Quantity:
Buy it now Add cart

You might like

AD7793 Isolated K Type Thermocouple Module Temperature Sample Module PT100 Cold Junction Compensation

AD7793 Isolated K Type Thermocouple Module Temperature Sample Module PT100 Cold Junction Compensation

$31.30

(0)
ZONRI AD7793 Module K Thermocouple Temperature Acquisition Module PT100 Cold Junction Compensation

ZONRI AD7793 Module K Thermocouple Temperature Acquisition Module PT100 Cold Junction Compensation

$38.14

(0)
CJMCU-6675 MAX6675 Thermocouple Type K Thermocouple Module Temperature Sensor Module

CJMCU-6675 MAX6675 Thermocouple Type K Thermocouple Module Temperature Sensor Module

$6.66

(0)
NI USB-9211A Data Acquisition Module Wireless USB Carrier 779436-01 for Thermocouple Measurement

NI USB-9211A Data Acquisition Module Wireless USB Carrier 779436-01 for Thermocouple Measurement

$319.76

(0)
K Type Thermocouple to Voltage to 0-5V 0-10V Linear Transformation Converter Temperature Transmitter Module

K Type Thermocouple to Voltage to 0-5V 0-10V Linear Transformation Converter Temperature Transmitter Module

$14.81

(0)
K Type Thermocouple Sensor + AD597 K-Thermocouple Module For Temperature Measuring Analog Output

K Type Thermocouple Sensor + AD597 K-Thermocouple Module For Temperature Measuring Analog Output

$15.20

(0)
Thermocouple to Voltage K Type to 0 to 5V 10V Linear Conversion Transmitter Module

Thermocouple to Voltage K Type to 0 to 5V 10V Linear Conversion Transmitter Module

$16.82

(0)
CJMCU-597 AD597 K-Type Thermocouple Temperature Measurement Sensor Analog Output Module 3D

CJMCU-597 AD597 K-Type Thermocouple Temperature Measurement Sensor Analog Output Module 3D

$12.81

(0)

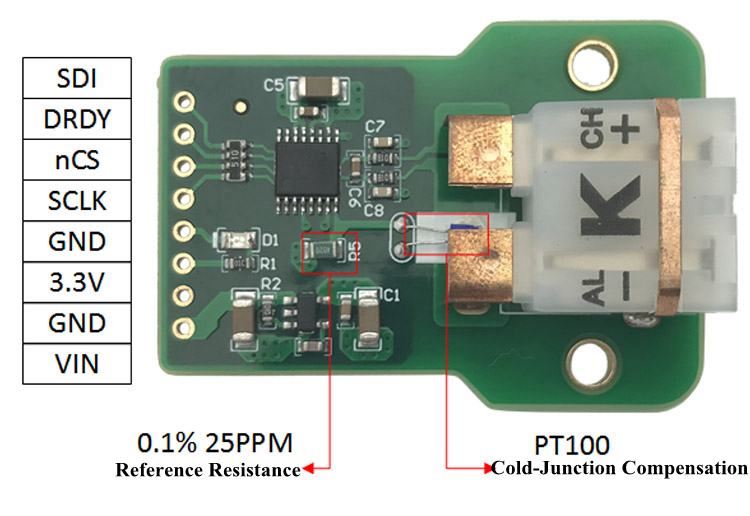

AD7793 K Thermocouple Module Precise Temperature Sample Module PT100 Cold-Junction Compensation

Features:
- Based on AD7793, the temperature measurement system is based on the recommended document of ADI CN0206_cn.
- PT100 is used as cold junction compensation, and 4-layer PCB cross-average temperature wiring.
- SPI interface supports SPI daisy chain multi-channel applications.
- The maximum thermodynamic potential at 32 times gain is 36.5mV, which corresponds to a K thermocouple index table of 850℃.
- Provides analog SPI reference program (STM32F10X).

Package Included:
- 1 x AD7793 K Thermocouple Module
- 1 x 1X8 Pin Header
