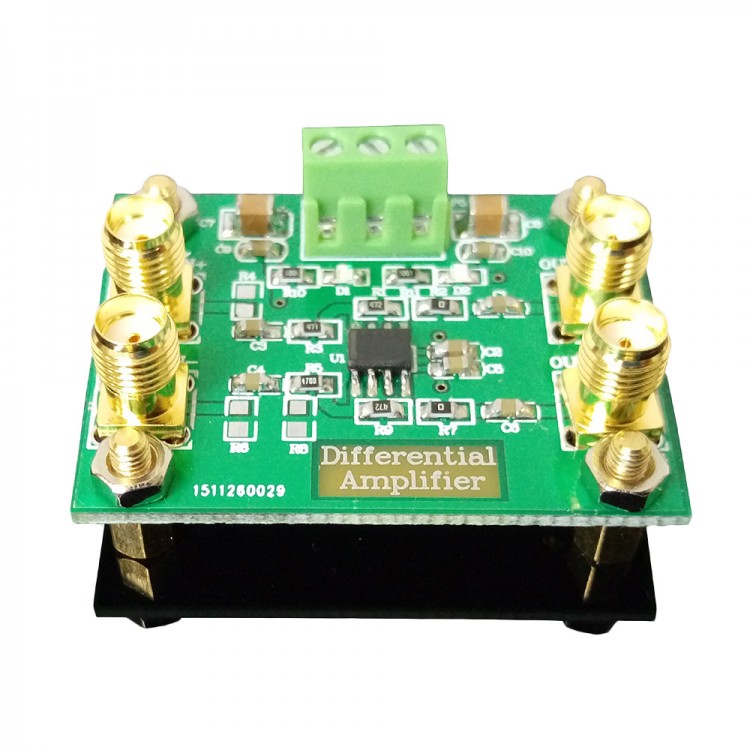

AD8138 Differential Amplifier Module Single End to Difference ADC Drive for AD8130 Module
Specification:
- AD8138 Differential Amplifier Module
- Size: 45*34mm
- Volatge: 5V single power supply, -+5V dual power supply
Features:
- Easy to use, single-end to difference conversion
- Adjustable otuput common mode voltage
- External adjustable gain
- Low THD
-94 dBc SFDR @5MHz
-85 dBc SFDR @20MHz
-3 dBc SFDR @320MHz (G=+1)
- 0.01% quick setup time: 16ns
- Slew rate: 1150V//us
- Rapid over drive recovery:4ns
- Low input voltage noise: 5nV/ Hz
- Offset voltage: 1mV (typical)
- Wide voltage range: 3V~-+5V
- Low power consumption: 90mW (5V)
Package List:
- 1 x AD8138 Differential Amplifier Module
