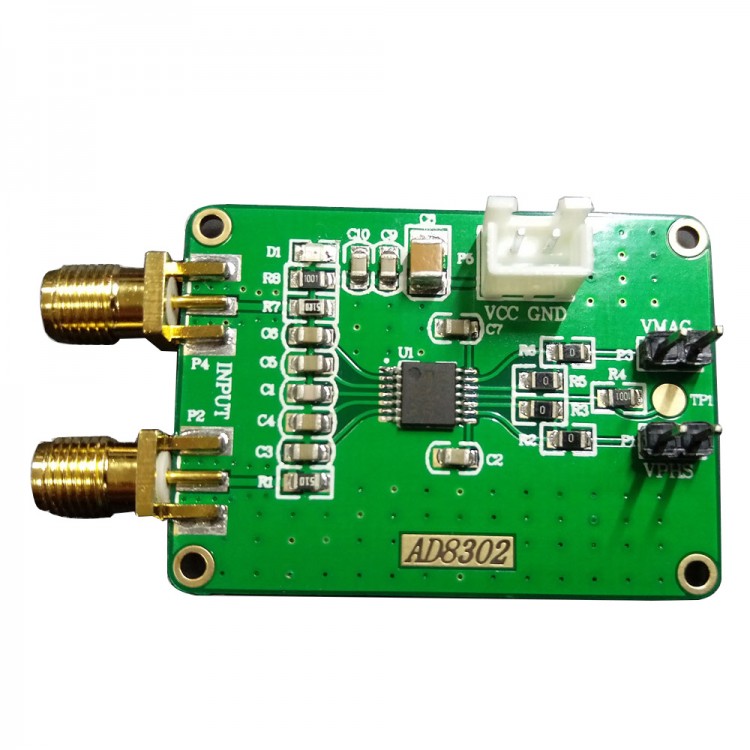

AD8302 Amplitude Phase Detection Module 2.7GHz RF IF 14TSSOP Phase Detector

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.66
  • Price in reward points: 197 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.27 $18.87 $18.28 $17.50 Contact US
Quantity:

AD8302 Amplitude Phase Detection Module 2.7GHz RF IF 14TSSOP Phase Detector

Specification:

- Size: 42*30.5mm
- Power voltage: 5V

Features:
- Measures Gain/Loss and Phase up to 2.7 GHz
- Dual Demodulating Log Amps and Phase Detector
- Input Range –60 dBm to 0 dBm in a 50ohm System
- Accurate Gain Measurement Scaling (30 mV/dB)
- Typical Nonlinearity < 0.5 dB
- Accurate Phase Measurement Scaling (10 mV/Degree)
- Typical Nonlinearity < 1 Degree
- Measurement/Controller/Level Comparator Modes
- Operates from Supply Voltages of 2.7 V - 5.5 V
- Stable 1.8 V Reference Voltage Output
- Small Signal Envelope Bandwidth from DC to 30 MHz
- PCB size:42mm X 30.5mm
- Working voltage:5V

Application:
- RF/IF PA Linearization
- Precise RF Power Control
- Remote System Monitoring and Diagnostics
- Return Loss/VSWR Measurements
- Log Ratio Function for AC Signals

Package List:
- 1 x AD8302 Amplitude Phase Detection Module
