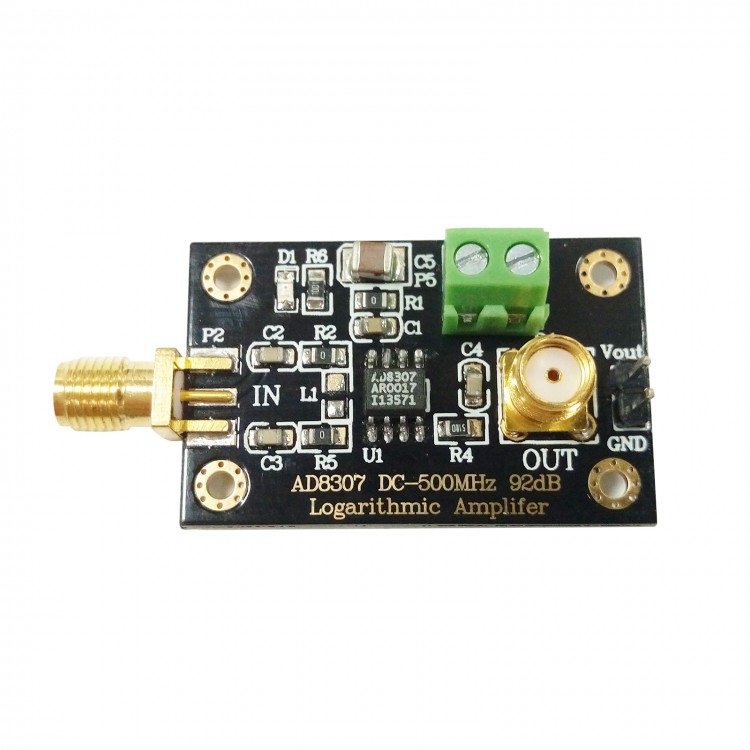

AD8307 RF Power Detector Module Logarithmic Amplifier DC 500MHz Antenna Power Test
Specification:
- AD8307 RF Power Detector Module
- Size: 37*24mm
- Voltage: 2.7-5.5V (Recommend 5V)
- For frequency <500Mhz;dynamic range: 92dB (-75dbM-+17dBm) amp
- Transmitter antenna power Test
Features:
- Dynamic range: -75dBm to -+17dBm
- Using a matching network can be achieved -90dBm
- Single power voltage: Minimum 2.7V, current 7.5mA
- Working frequency: DC up to 500MHz ,linear:-+1db
- Slope: 25mV/db section:-84dBm
- High stability
- Power on: 100ns
- Standby current: 150uA
Application:
- Convert signal level into db
- Transmitter antenna power measurement
- Receiver signal strength indicator (RSSI)
- Low cost radar and sonar signal processing
- Nerwork and spectrum analyzer(up to 120dB)
- To make sure the signal level is as low as 20Hz
- Multimeter true db AC Mode
Package List:
- 1 x AD8307 RF Power Detector Module
