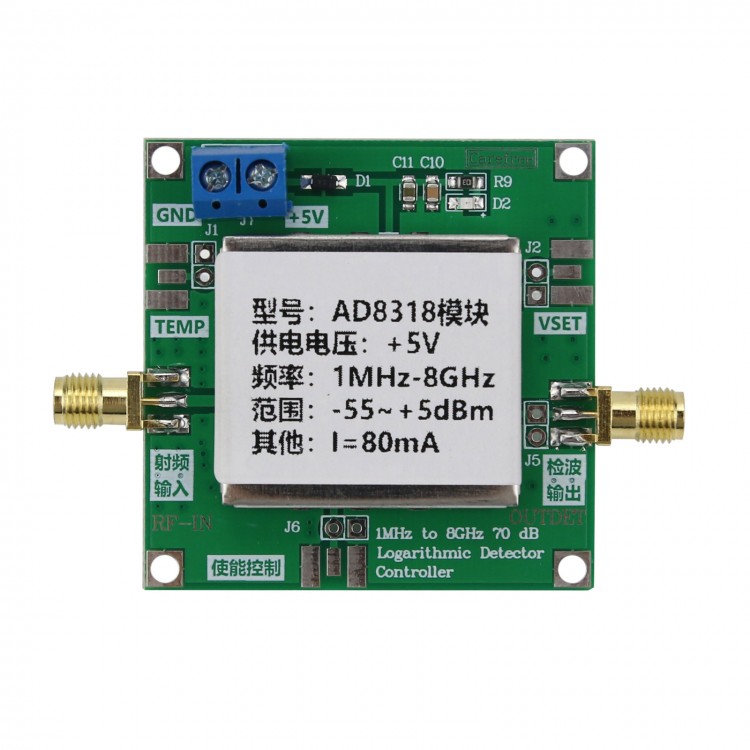

AD8318 Module RF Power Meter RF Power Detector Logarithmic Detector Power Detection 1-8000MHz
Technical Parameters:
1. Power supply voltage: 5V DC (typical current 80mA)
2. Dynamic range of input signal: -65 dBm to +5dBm (linear range -55 to 0 dBm)
3. The module supports changing detection slope, power measurement and controller.
4. Bandwidth: 1MHz to 8GHz (1-8000MHz)
5. With metal shell shield
6. The default delivered detection slope: -50MV/DBM
7. Input impedance: 50 ohm
Package Included:
- 1 x RF Power Meter Module

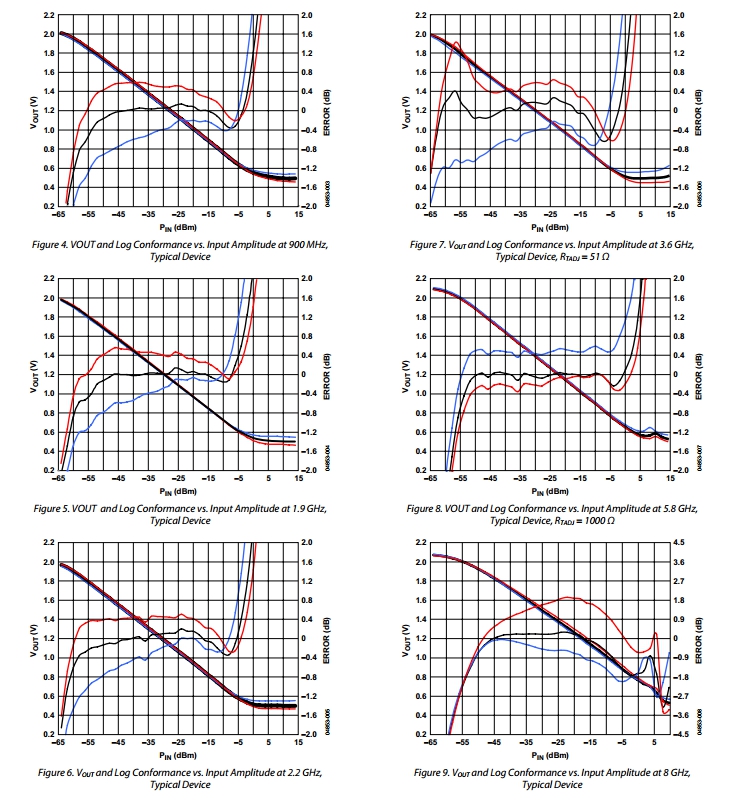

Chip Detection Characteristics:

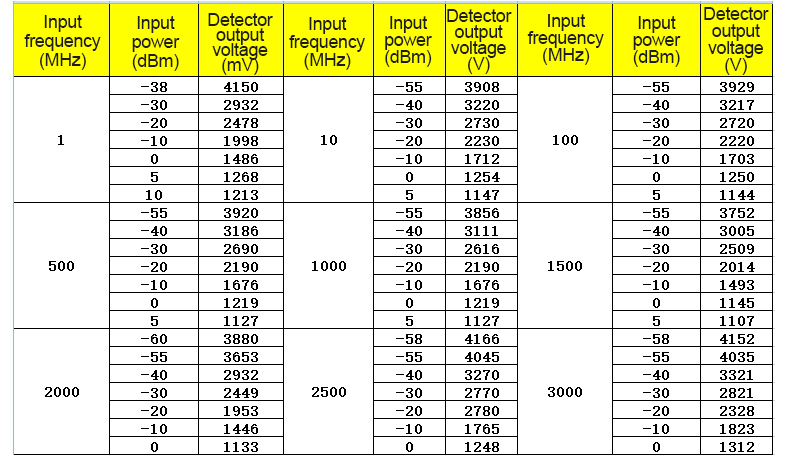

Compare Tested Parameters:
