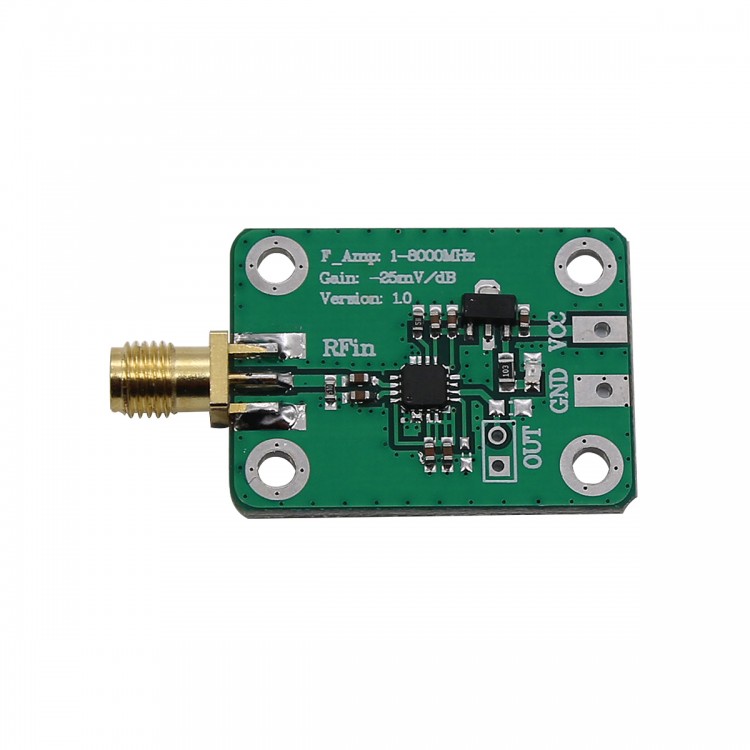

AD8318 RF Logarithmic Detector 1-8000MHz 70dB RSSI Measurement Power Meter
Description:
The RF detector is built with AD8318 chip. It is designed with a power supply voltage regulator circuit, which makes the detection accuracy close to the official data. The operating frequency range is 1-8000MHz, and the RF signal of -65 to 5dBm can be detected. The detected signal strength (in dBm, detected in logarithmic mode) is output in the form of a DC voltage, and such RF signal is converted into a DC voltage output. The amplitude or power of the RF signal corresponds to the output voltage. It can be used for signal strength indication RSSI, spectrum analyzer, gain control and the like.
Technical Parameters:
- Operating Frequency: 1 to 8000MHz
- Dynamic Range: -65dBm to 5dBm
- Detection Slope: -25 mV / dB (Typical Value)
- Detected Output Voltage Range: 0.5 to 2.1V
- Power Supply: 7-15V DC (with power regulator circuit)
- Input Impedance: 50Ω
- RF Interface: Standard SMA Female
- Size: 5*3 cm/1.97*1.18 inch
Package Included:
- 1 x 1-8000MHz AD8318 RF Logarithmic Detector
