AD9248 14bit 65M ADC Module Analog-to-digital Converter w/ Female Socket Interface for Power Supply
Module Introduction:
The AD9248 module uses original high-speed 14-bit ADC for ADI. It is a dual-channel, single-supply, 14-bit analog-to-digital converter with a maximum sampling rate of 65MSPS. It features an on-chip high-performance sample-and-hold amplifier and voltage reference. The module operates with a 5V power supply and has an input impedance of 50Ω. The input voltage range is ±5V (10Vpp), with a bandwidth of 350MHz. This ADC module is widely used in applications such as sensor signal acquisition and high-speed signal collection.

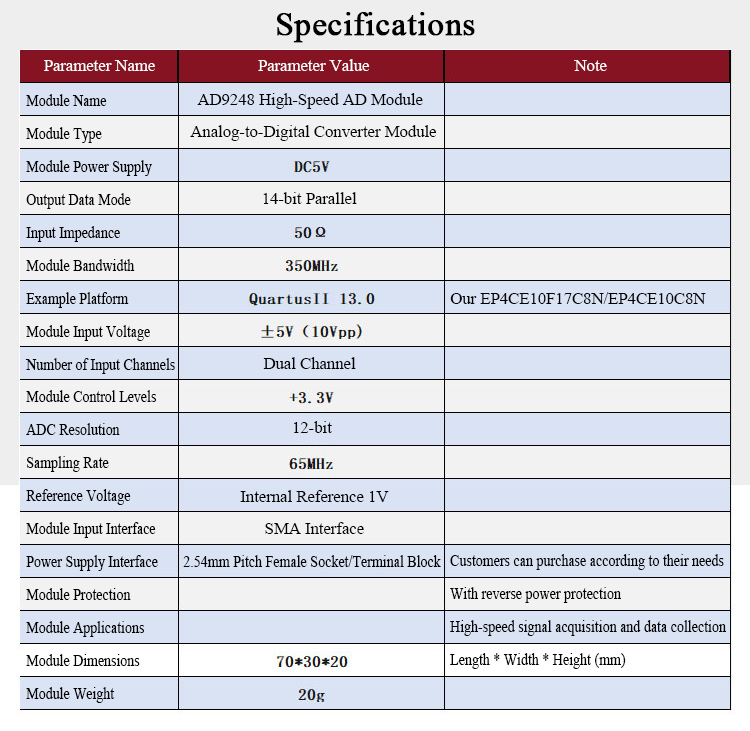

Main Parameters:
- Module Category: High-speed ADC Module
- Module Name: AD9248
- Number of Channels: Dual Channel Single-ended Input
- ADC Resolution: 14-bit
- Sampling Rate: 65Msps
- Input Voltage Range: ±5V (50Ω Impedance)

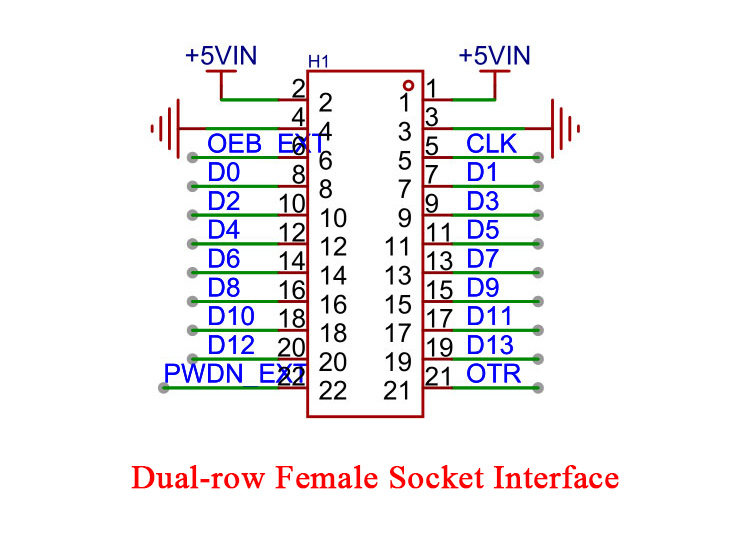

- Data Interface Type: Parallel Interface (Bus Multiplexed Mode)

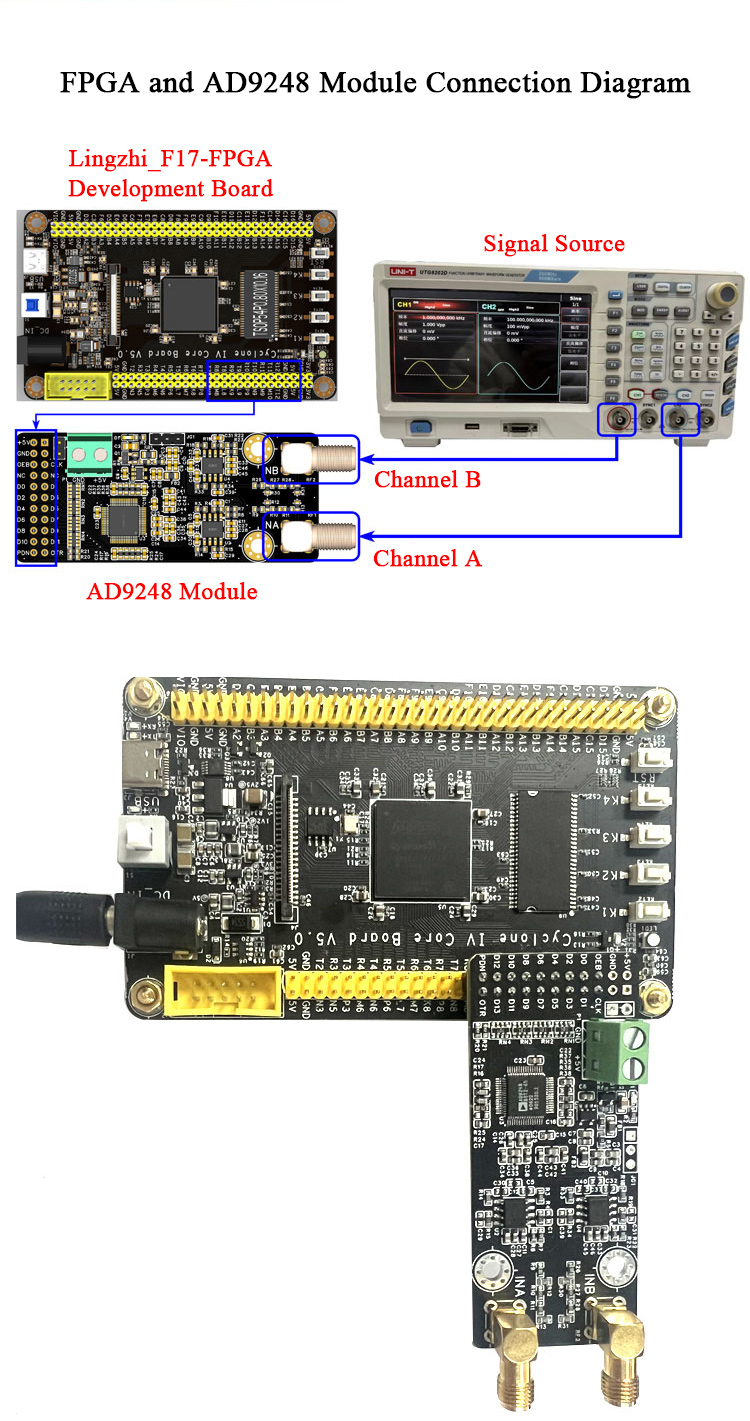

- Note: To achieve the maximum sampling rate specified in the chip manual, use with the appropriate FPGA driver.
Package Included:
- 1 x ADC Module
Packaging Details:
- Weight: 0.25kg
Note:
- The following images are for
reference only. The appearance of the product is subject to the actual
item received. Thank you for your understanding!
