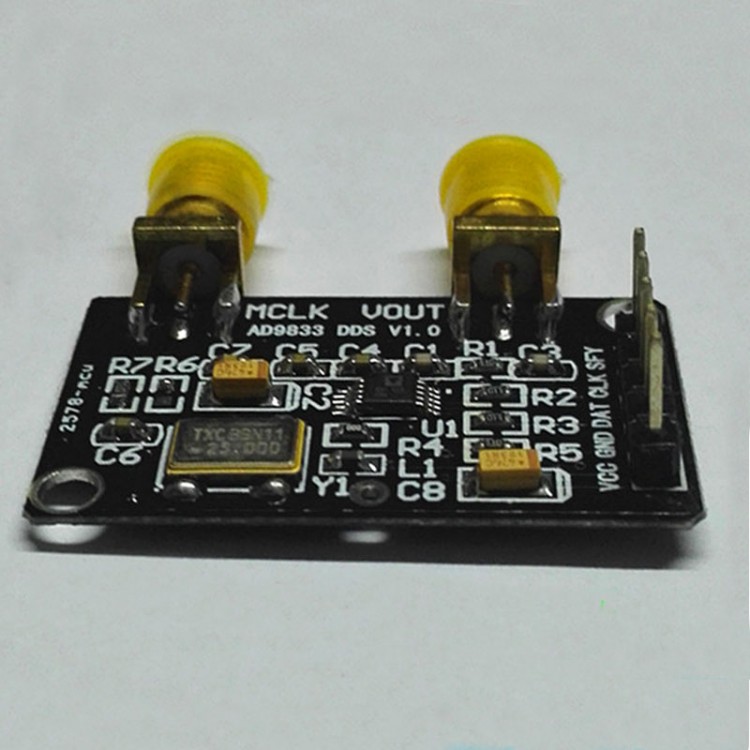

AD9833 Module Core Board DDS Digital Synthesis Output Sine Wave Square Wave Triangular Wave
Applications:
- Frequency stimulation / waveform generation
- Liquid and air flow measurement
- Sensor applications: proximity, motion and defect detection
- Line loss / attenuation
- Testing and medical equipment
- Scan / Clock Generator
- Time domain reflection (TDR) applications
Features:
- Working Voltage: 2.3V-5.5V. Typical 3.3V, 5V.
- Operating Temperature: -40℃ to 105℃.
- Default on-board 25MHZ (25ppm accuracy) imported active crystal oscillator, stepping accuracy is 0.1HZ. Can connect to external clock reference through tee for higher frequency resolution.
- Refer to official circuit layout for DEMO, its circuit works stably and reliably.
- Can output sine wave, triangle wave and square wave, frequency and phase programmable. The amplitude of sine wave and triangle wave is about 0.6VPP, which decreases slightly at high frequencies. Sine and triangle wave output impedance is 200R. Square wave is slightly smaller than supply voltage.
Package Included:
- 1 x AD9833 Core Board
