AD9834 0.05MHz-40MHz Sweep Generator M-40 V2.03 Signal Generator Capacitance Inductance Tester
Description:
The Sweep Generator is specialized in measuring capacitance and inductance. It is used for designing and selecting materials, so it is a machine tool. The capacitance and inductance meter is classified in electrician repair tools.
It is also very practical to make a small inductance meter by yourself, a very important maintenance tool.
Specifications:
- Property: RF frequency domain analysis tool
- Interface: usb
- Power supply: usb
- Standby current: ≤40Ma, to avoid large current events where the current of the whole machine is greater than 200mA for a long time. It is important for a single usb power supply to simplify the focus of NWT4
- Sweep frequency current: ≤60mA
- Sweep frequency bandwidth: 0.05mHz-40mHz
- Sweep frequency step: ≥ 1Hz
- Sweep frequency: ≥500 points/sec
- Sweep frequency dynamic logarithmic ratio:> 70dB (-75dBm to +5dBm)
- Point frequency or sweep frequency output power: -3dBm to 5dBm
- Input detection: ≤10dbm
- Computer side software: NWT4.09.07 version
- Computer operating system: For Win XP, win732, win764, win1032
- Core components: stm32f103 microcontroller. AD9834, typical DDS chip, digital synthesis oscillator, perfect match OPA695 high-speed op amp (the newly purchased batch is changed to SOT23-6 package).
- Working principle: Use the VFO source composed of AD9834 to automatically and quickly sweep the dual-port circuit network point by point to obtain the S21 parameter curve
- Appearance: circuit board size 60 x 98mm/2.4 x 3.9"
Application:
It is a machine tool for radio work. The frequency sweeper is an instrument used to measure the high-frequency state parameters of capacitance and inductance, the Q value of L (C) in the high-frequency state, the parasitic capacitance, and the high-frequency dielectric loss of C. These indicators are high from the perspective of radio frequency design. The importance of frequency index is equivalent to the role of its own capacitance and inductance
Users:
This product is a simplified version of nwt4. Simplified protocol instructions make it convenient for radio enthusiasts to make their own works, and reduce the current used in its original design as a whole. Suitable for radio enthusiasts and young students.
Package Included:

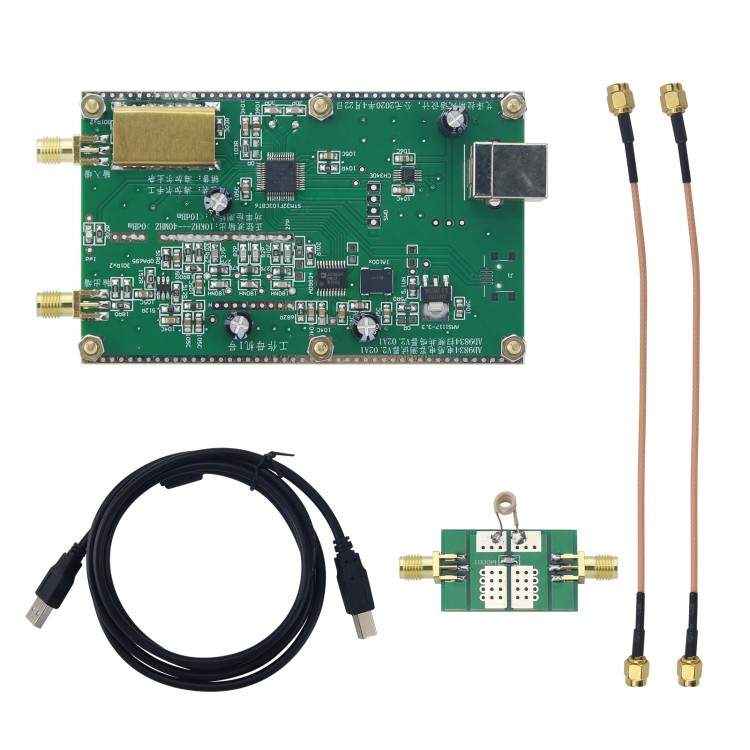

- 1 x Set of Sweep Generator
