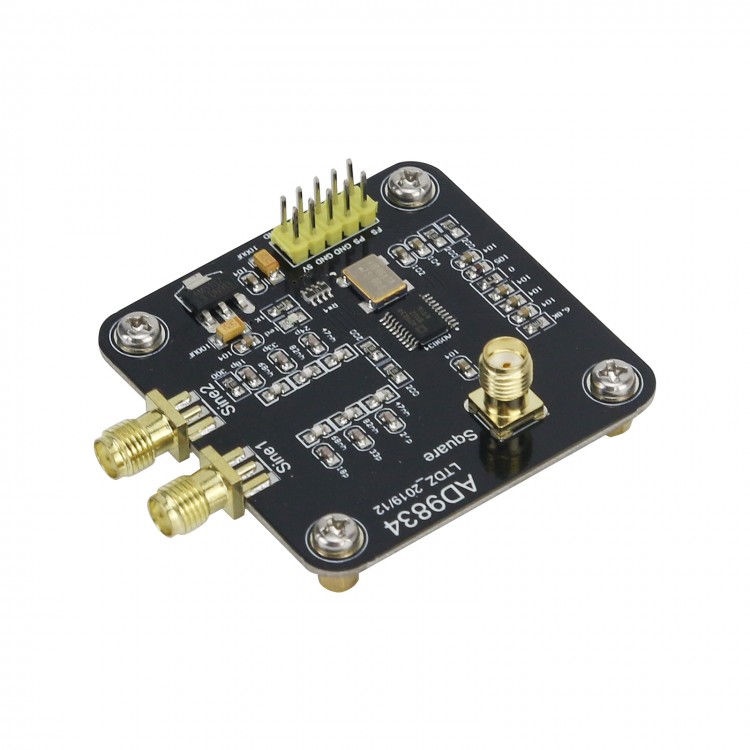

AD9834 Signal Generator Module Circuit Board Sine Triangle Square Wave Output DDS Signal Source

AD9834 Signal Generator Module Circuit Board Sine Triangle Square Wave Output DDS Signal Source

Description:
This signal generator module is a professional product to generate sine/triangle wave. It can be widely used in frequency excitation/waveform generation, low power RF/communication system, liquid and air flow measurement, sensor and medical equipment.

Specifications:
Material: FR4
Supply Voltage: 5V
Power Consumption: 20mW
Narrowband SFDR: >72dB
Output Frequency: up to 37.5 MHz
Waveform Output: sine / triangle waveform
Comparator: on-chip comparator
Interface: 3-wire serial peripheral interface
Extended Temperature Range: -40°C ~ +105°C
Power Saving Options: Yes
Power Consumption: 20MW (3V)
Board Size: about 5.9 * 5cm

Features:
-DDS device with low power(only 20 mW in 3V supply voltage), higher performance.
-Output sine/triangle waveform.
-Equipped with a phase modulation and FM function.
-It can write data through a 3-wire serial interface.
-Independent analog and digital parts; it can be used with different power sources.
-With a control pin (SLEEP) to support power down mode control from outside.

Package Included:
1*Signal Generator Module
