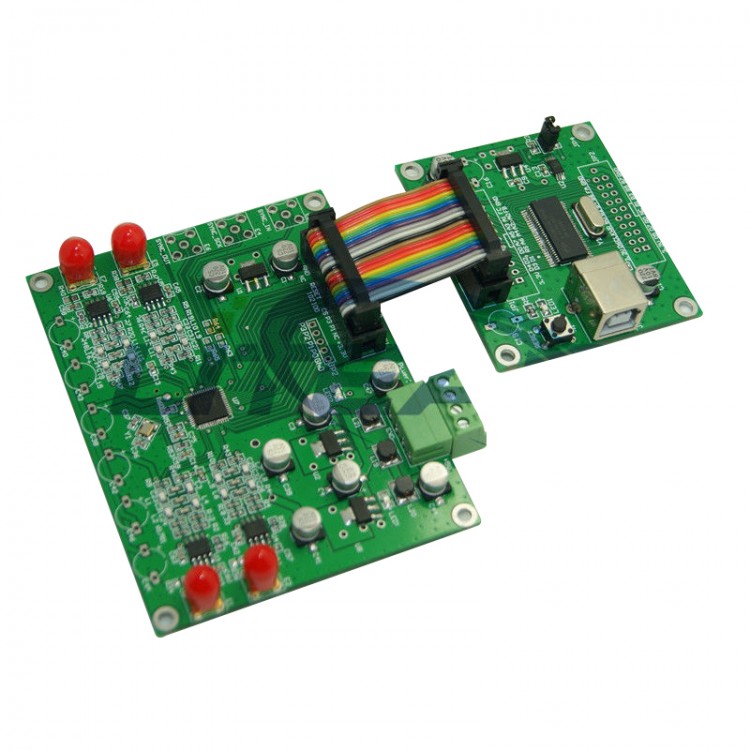

AD9958 DDS Signal Generator 2 Channel 200MHz 500MSPS with USB2.0 Control Board
Description:
AD9958 ,2 Channel 200MHz DDS Signal Generator, 500MSPS .
Features:
- AD9958: 2channel, 500MSPS, the highest 200M sine wave output;
- 2-channel independent of frequency, amplitude and phase adjustable;
- 32-bit accumulator, the frequency resolution is better than 0.12HZ;
- 14-bit phase register, phase resolution 0.022 degrees;
- 10-bit amplitude register, fine adjustable amplitude 1024;
- 2 bands, 4 bands, 8 bands, 16 bands, ASK, PSK, FSK modulation powerful features;
- Linear frequency, amplitude and phase sweep function;
- Independently programmable DAC output current;
- High-speed SPI communication;
- ADI is fully compatible with the original PC software, control panel USB2.0 interface, easy to use; (Note: Driver support XP, WIN7 32 bit addition WIN7 64 bit and WIN8 may not support;)
- Low power consumption, etc. victory AD9854 chip, 2-channel 200M Signal tone output, power consumption of only 580mW;
Application:
- Local oscillator;
- Test equipment;
- The synchronization clock frequency signal source;
- AD9958 learning modules;
Specifications:
- Control via USB (5V power supply),AD9958 module uses +-5V power supply;
(Note: Because the positive and negative terminals of load imbalance, can not use switching power supply + - power supply, this may lead to the negative terminal of the voltage is too high;)
- High-speed operational amplifier coupled to the output, the impedance matching, post 200M filter;
- Output frequency of 0 --- 200M, 0.12HZ resolution;
- The output amplitude 0-2VPP 1M impedance,0 - 1VPP 50 in Europe,
- Amplitude flatness :0-100M 0.4dB; 100M --- 150M 1dB flatness
- The magnitude of the amplitude can be achieved by 1024 PC software fine adjustable;
- The independent phase adjustment, the fine phase resolution of 0.022, etc. IQ signal can be realized.
Package includes:
- 1PC AD9958 Module
- 1PC Control module
- 1PC USB line
- 1PC row line
