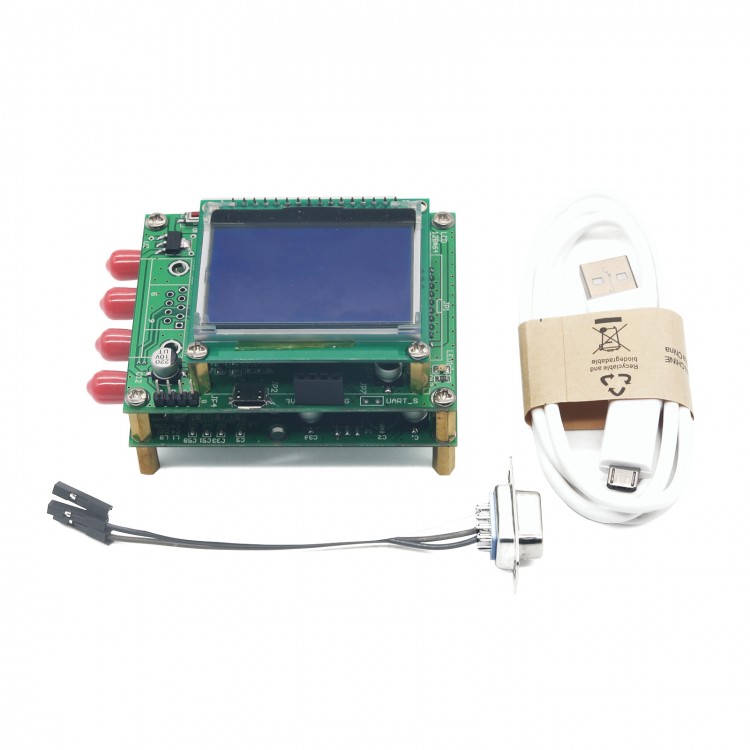

AD9959 200Mhz DDS Signal Generator + TFT LCD Development Board STM32F103

AD9959 200Mhz DDS Signal Generator + TFT LCD Development Board STM32F103

Features:
- AD9958 / 59 module is the effort to build a senior engineer, PCB beautiful appearance, reasonable layout and design, material stress;
- AD9958 / 59 are two-channel / four-channel independent output, output frequency: 1Hz-200Mhz, phase resolution: 1 degree, amplitude resolution: 1/1024, the above is now in control of the accuracy of the controller module The performance itself is higher than the above parameters, but to modify the program to achieve;
- After several re-designed and beautiful to board 200Mhz signal can be output.
- The development board uses a high-speed 32-bit STM32F103 chip control; programming specifications, concise, easy to understand, can quickly master the AD9958 / AD9959 chip control.
- The development board directly with the USB-powered, easy to use;
- Support for serial control or button operation; you can control channel, frequency, amplitude, phase;
- Modular control, AD9958 / 59 module and the control board is independent, convenient to use other controller;
- AD9958 / 59 module, the output section: three-way direct output, one can take a signal transformer output

Module application
- Agile local oscillators
- AD9959 learning module
- Instrumentation
- Synchronized clocking

Module performance parameters:
- The Development board supplied by 5V power, can supplied directly through the USB;
- AD9959  supplied by +-5V power
- Output frequency 0---200M, resolution 1HZ;
- The output range 0 - 1VPP (1M high resistance), the amplitude will decrease with the frequency, and the resolution of the magnitude is 1/1024.
- 2/4 synchronized DDS channels @ 500 MSPS
- Independent frequency/phase/amplitude control between channels
- Matched latencies for frequency/phase/amplitude changes
- Excellent channel-to-channel isolation (>65 dB)
- Linear frequency/phase/amplitude sweeping capability
- Up to 16 levels of frequency/phase/amplitude modulation(pin-selectable)
- 4 integrated 10-bit digital-to-analog converters (DACs)
- Individually programmable DAC full-scale currents
- 0.12 Hz or better frequency tuning resolution
- 14-bit phase offset resolution
- 10-bit output amplitude scaling resolution
- Serial I/O port interface (SPI) with enhanced data throughput
- Software-/hardware-controlled power-down
- Dual supply operation (1.8 V DDS core/3.3 V serial I/O)
- Multiple device synchronization
- Selectable 4X to 20X REFCLK multiplier (PLL)

Package Contents:
- 1 x Module
