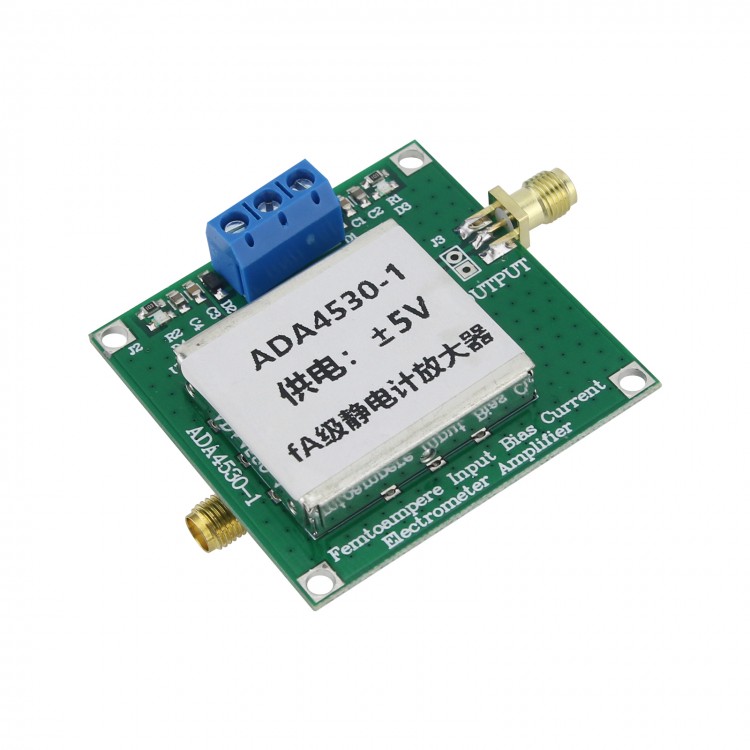

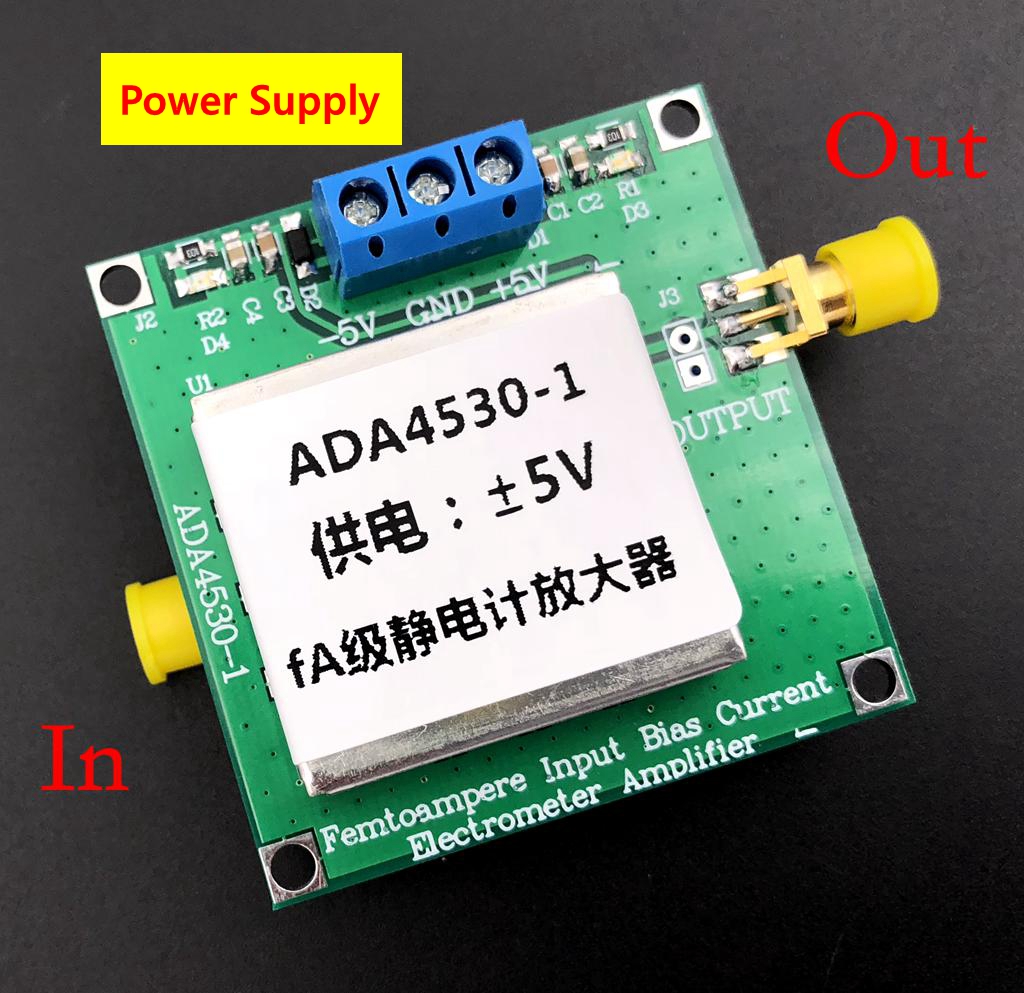

ADA4530-1 fA-Level Electrometer Transimpedance Amplifier for Weak Current Measurement Module Photoelectric IV Conversion
Description:
- TIA transimpedance weak current measurement module; IV conversion preamplifier, fA-pA-nA for silicon light detection;

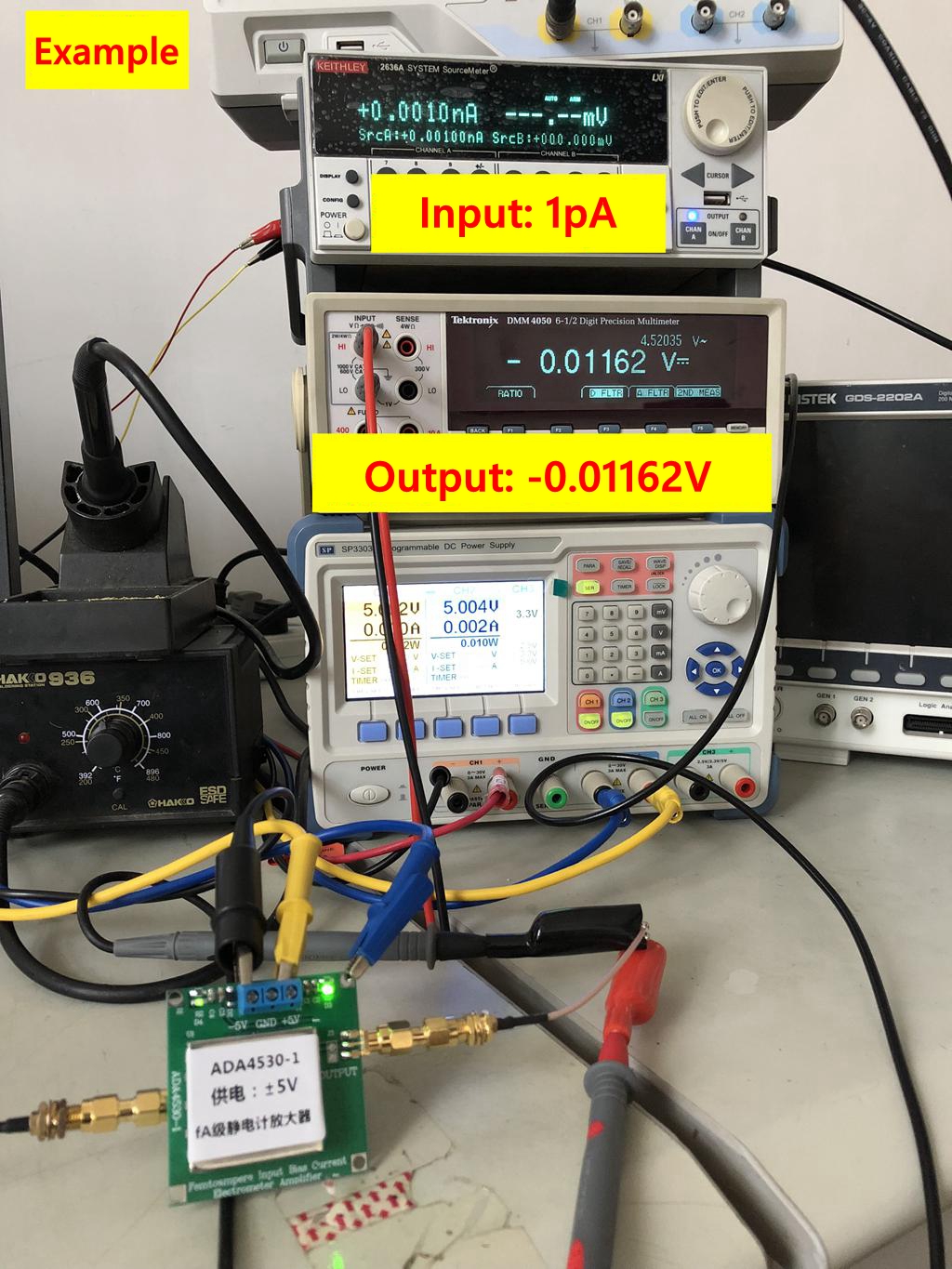

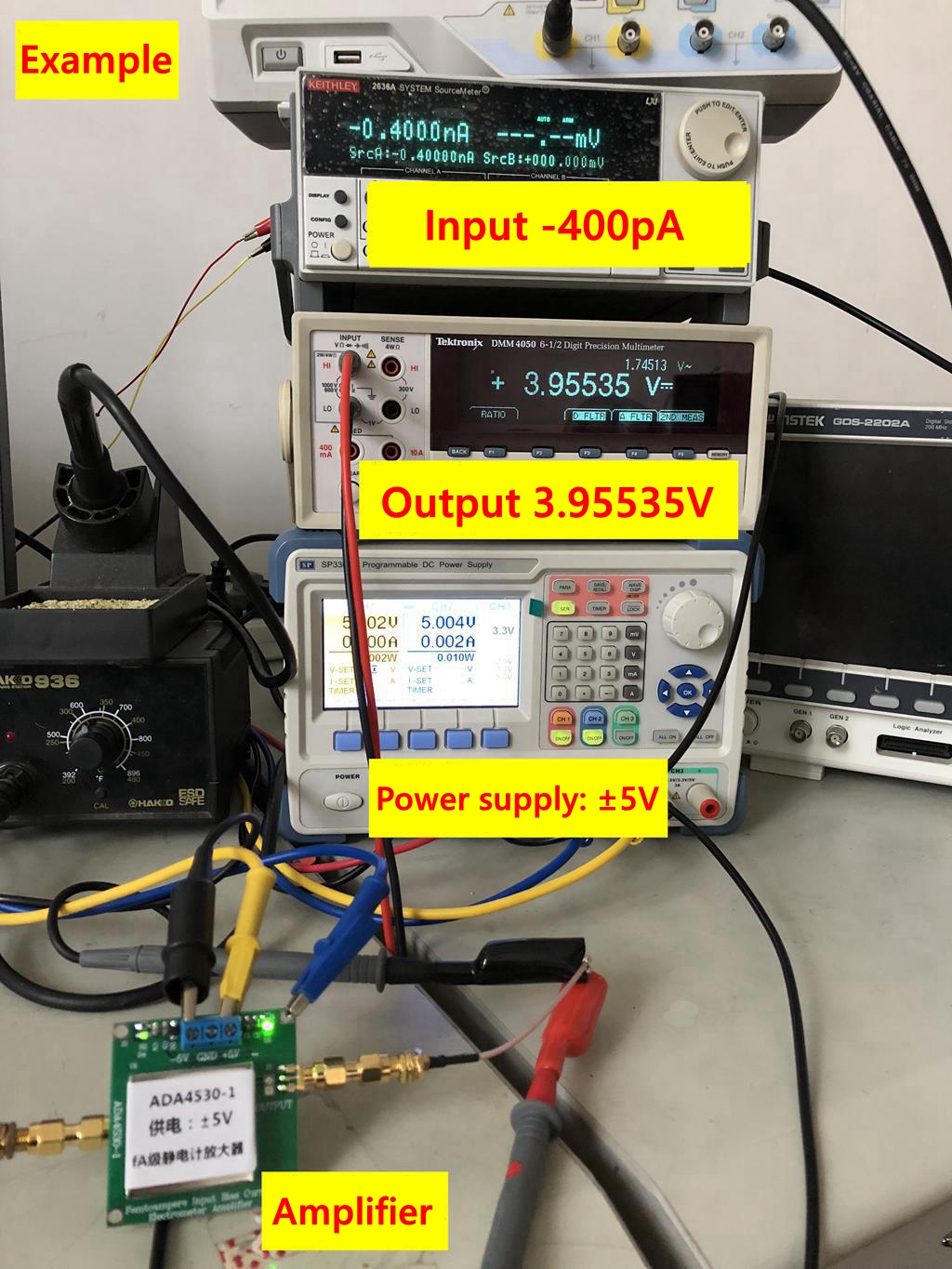

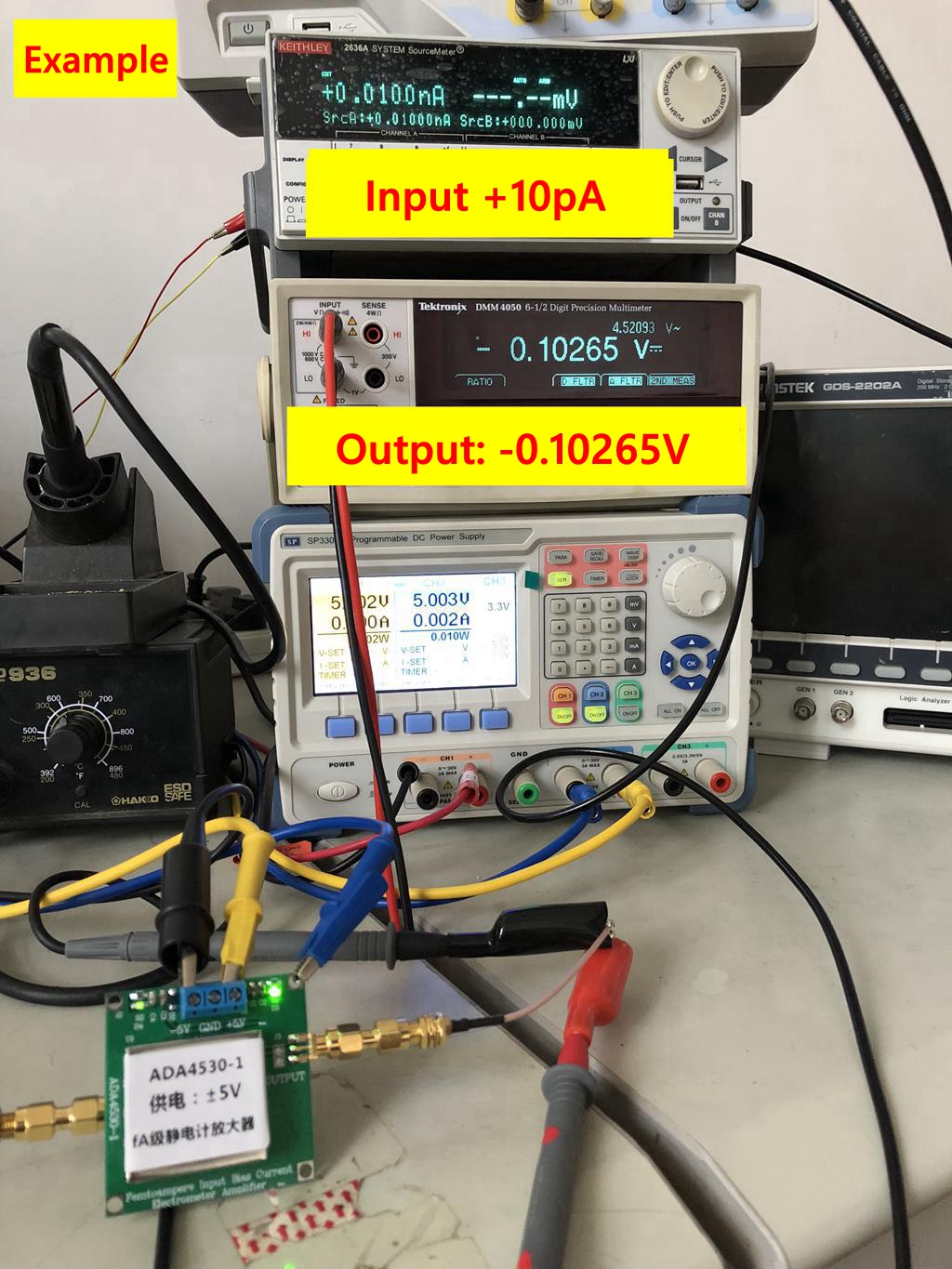

- Ultra high precision current measurement module, measured range: 1pA to 0.500nA (limit parameter); Suitable for rapid development of individual projects; Principle verification; It has been measured by six and a half digit instrument, for Tektronix Multimeter (DMM4050) and Jishili Digital Source Meter (2363A)
- The typical transimpedance IV circuit connection method can realize the current measurement with the highest accuracy in principle at the current technical level.
- The bias current of the main chip is at fA level and a rail to rail operational amplifier, which has extremely high accuracy.
- The calculation formula of output voltage Vout and input current I is: Vout= - I x R; Default R = 10G Ohms
- Video link: http://v.youku.com/v_show/id_XMzQ0Nzg1OTQwNA==.html?spm=a2h3j.8428770.3416059.1
Package Included:
- 1 x Transimpedance Amplifier
