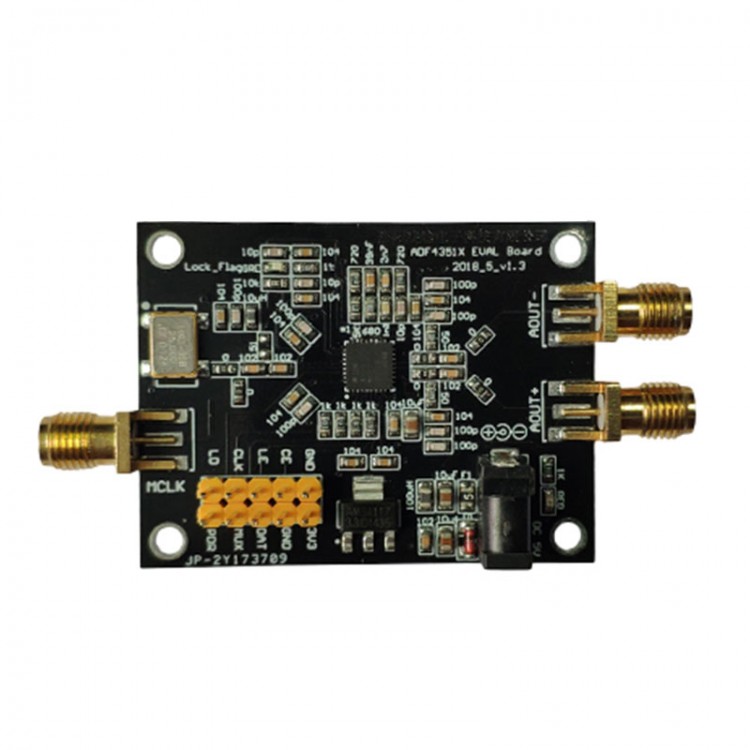

ADF4351 Development Board 35M-4400M RF Signal Generator Module Phase Locked Loop

Description:
As core chip, ADF4351 optimizes its layout according to official principles. It features extremely high power flatness over the entire operating frequency range of the module.

Parameters:
- Output Frequency Range: ADF4351: 35M-4400M (4.4G)
- Output Signal: 2200M-4400M fundamental wave (sine wave) 35M-2200M fundamental wave frequency division (square wave)
- Output Signal Interface: SMA female
- ±50ppm 25M imported active crystal oscillator by default. circuit diagram in PDF, and STM32 test program are provided
- Control Mode: Three-wire SPI lead out control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping. The steps can be up to 1K, and the low frequency steps can be up to 0.1K. It depends on the frequency of the oscillator.

Note:
- It can be powered via 3.3V pin header. Power supply can provide current ≥500mA.
- Typical power supply 5V.

Package Included:
- 1 x 35M-4400M RF Signal Generator Module
