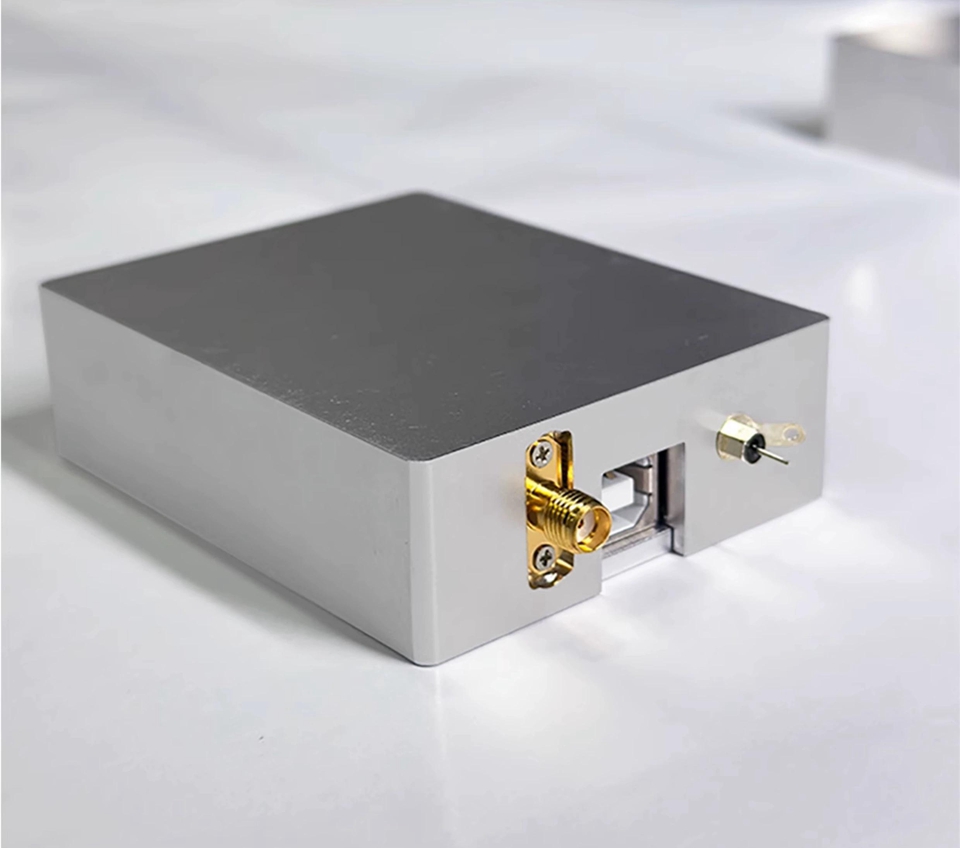

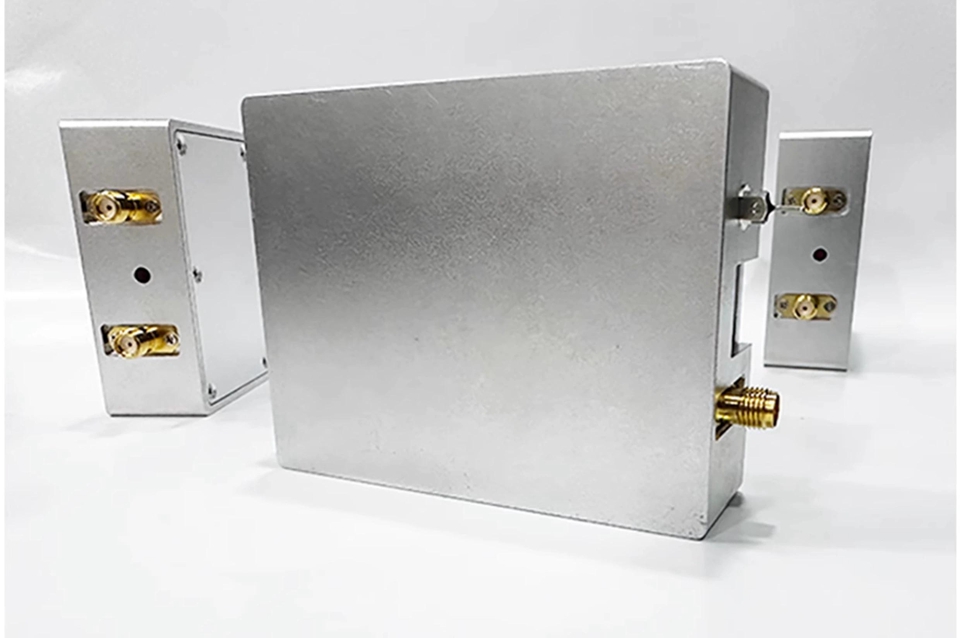

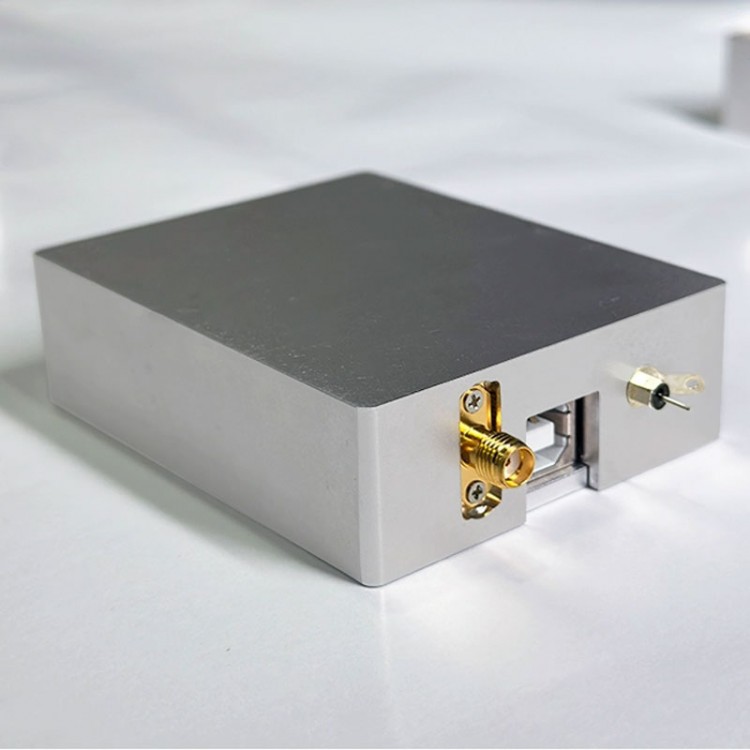

ADF4351 Phase Locked Loop 35M-4400M RF Signal Generator Module Development Board 1W 30dBm + Internal Power Amplifier
Specification:
- Output frequency range: ADF4351:35M - 4400M (4.4G)
- Output signal interface: SMA female connector
- Controlling method: The upper computer software controls frequency scanning and frequency modulation, with steps up to 1K and low-frequency steps up to 0.1K, or outputs can be controlled through external switches.
- Imported TCXO: 25M, +/-50ppm
- Size: 8 x 6.3 x 2.3cm
Feature:
- Internal overheating protection, configurable for timed shutdown.
- Supports power-off storage parameters for immediate use upon startup
- Built-in STM32, support second development
- Support USB configuration of parameters with upper computer
- Application: medical equipment, precision instruments, automation equipment, precision machine tools, semiconductor manufacturing equipment, high-speed transfer equipment, etc.
Package Included:
- 1 x RF Signal Generator Module
