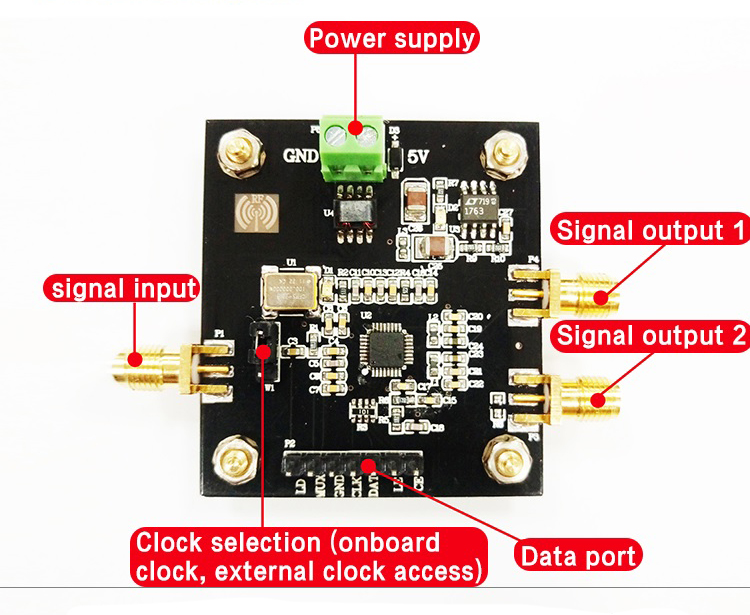

ADF4351 PLL Module Phase Locked Loop 35M-4.4GHz RF Signal Generator Frequency Synthesizer

Description:
This is a cost-effective ADF4351 module integrated VCO phase-locked loop, which is convenient for developers to conduct secondary development. No matter in parameter design and testing, there is great guarantee.

Parameters:
- Item Name: ADF4351 Module
- Size: 50 x 50mm
- Supply Voltage: 5V to 9V

Package Included:
- 1 x ADF4351 PLL Module

Note:
- Please contact us for PDF schematic diagram + driver program after purchasing. Thank you!
- The ADF4351 is a digital phase locked loop module. The frequency output below 2.2G is a frequency division output. The output waveform is similar to a square wave. If a sine wave is required, an external filter is needed. Please purchase separately.

Module Performance Indicators (All test parameters are the same as that of on-board MCU version):
- Signal 100MHz output with power amplitude: -2.03dBm -104dBc @ 10KHz
- Signal 500MHz output with power amplitude: -0.97dBm -103dBc @ 10KHz
- Signal 1GHz output with power amplitude: 1.93dBm -103dBc @ 10KHz
- Signal 2GHz output with power amplitude: 3.20dBm -101dBc @ 10KHz
- Signal 3GHz output with power amplitude: 2.87dBm -97dBc @ 10KHz
- Signal 4GHz output with power amplitude: 1.86dBm -95dBc @ 10KHz
- Signal 4.4GHz output with power amplitude: 1.09dBm -93dBc @ 10KHz
- Signal 4.4GHz output with power amplitude: 1.09dBm -99dBc @ 100KHz
- Signal 4.4GHz output with power amplitude: 1.78dBm -96dBc @ 200KHz
