ADF4351 RF Sweep Signal Source Generator Board 35M to 4.4G + STM32 TFT Touch LCD

ADF4351 RF Sweep Signal Source Generator Board 35M to 4.4G + STM32 TFT Touch LCD

Feature:
- ADF4531 module is a senior engineer to build, fully refer to the official version of the design;PCB and beautiful appearance, reasonable layout and design, materials standards;
- The output frequency range: 35 m - 4.4 G (ADF4351);
- Mode of power supply: 5 v power supply, can use the USB power supply directly;
- Color screen display, touch screen operation, can realize frequency, frequency sweep.
- Refer to the official module design;

Application:
- Wireless infrastructure (w-cdma, td-scdma, WiMAX, GSM, PCS, DCS, DECT)
- Test equipment,
- The wireless local area network (LAN), cable television equipment
- Clock

Chip introduce:
ADF4351 combined with external loop filter and external reference frequency when using, it can realize the decimal N points frequency or integer N frequency and phase lock loop (PLL) frequency synthesizer.
 ADF4351 have an integrated voltage controlled oscillator (VCO), its fundamental wave output frequency range to 2200 MHz to 4400 MHz.In addition, the use of 1/2/4/8/16 points frequency circuit, the user can generate as low as 35 MHz / 137.5 MHz RF output frequency.For the isolation of application, the RF output stage can be mute.Mute function can be controlled by pin, can also be controlled by software.At the same time provide auxiliary RF output, and can be shut off when not in use.

Specifications:
- This version is ADF4351
- The output frequency range: 35 MHz to 4400 MHz
- Fractional N points frequency synthesizer and integer N frequency synthesizer
- VCO with low phase noise
- Programmable 1/2/4/8/16 divider output
- The root mean square (RMS) jitter: less than 0.4 ps RMS (typical)
- Power supply voltage: 3.0 V to 3.6 V
- Logical compatibility: 1.8 V
- Programmable dual-mode preassigned frequency counter: 4/5 or 8/9
- Programmable power output
- The RF output mute function
- Three wire serial interface
- Analog and digital lock detection
- Within the wide bandwidth quickly lock mode
- Reduce the cycle slip

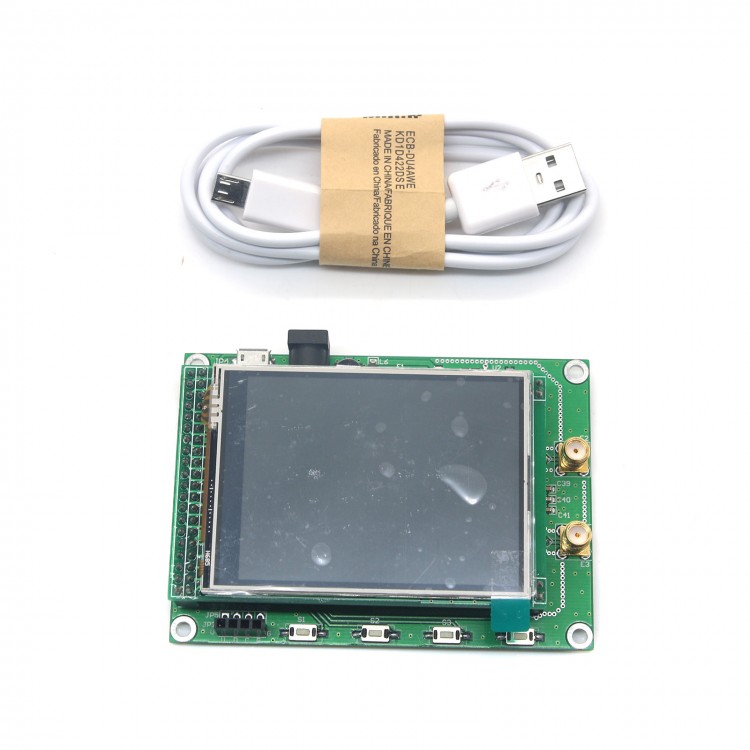

Product include
- ADF4351 35M-4.4G RF sweep signal source generator board X1
- STM32 TFT touch LCD X1
- USB cable X1
- Bag X1
- Schematic diagram (PDF), STM32 project program (GUI library), other data
