Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $72.40 | $70.92 | $68.71 | $65.75 | Contact US |

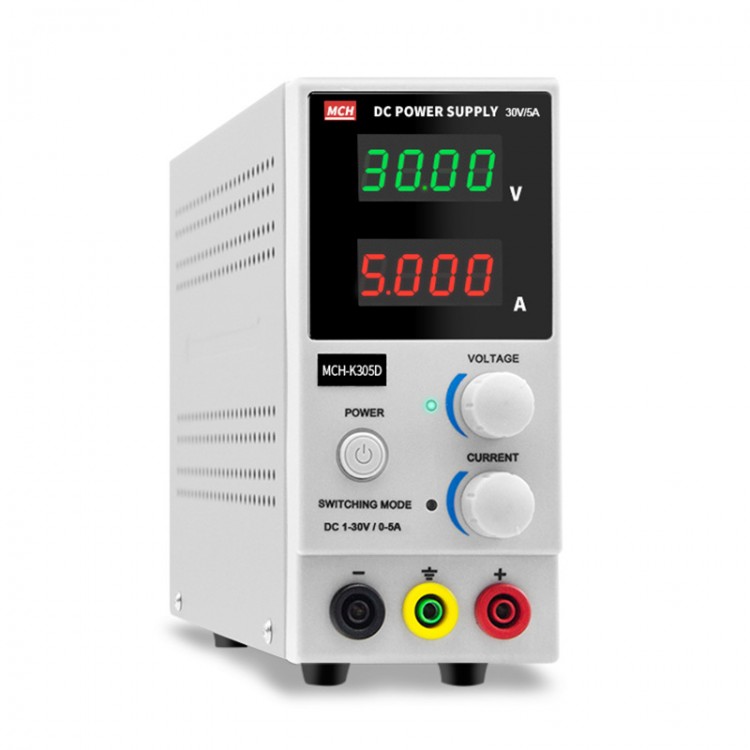

Adjustable DC Power Supply with 4-Digit Display High Accuracy Output 0-30V 0-5A MCH-K305D
Features:

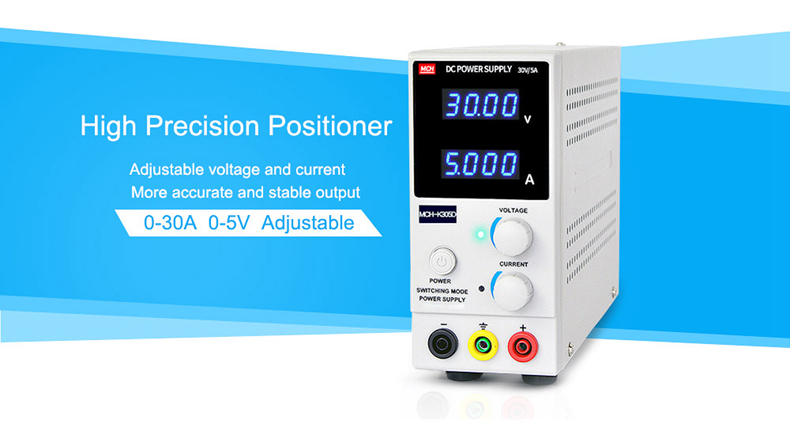

- Multi-turn High-precision Positioner: Fine adjustment of voltage and current, ultra-high sensitivity, adjustable voltage and current, to meet the needs of engineering development, electronic maintenance, experimental teaching.
- Real Material & High Performance: The use of advanced patch technology, the use of imported components, conversion efficiency is higher, can be fully loaded for a long time, intelligent cooling system, longer service life.
- Small Size, Light Weight: Compared with the bulky linear DC power supply, it is easy to carry and more delicate and lighter than similar products.
- Quadruple Protection: Large-capacity power protection, overload protection, over-voltage protection, over-current protection, and current limiting protection.

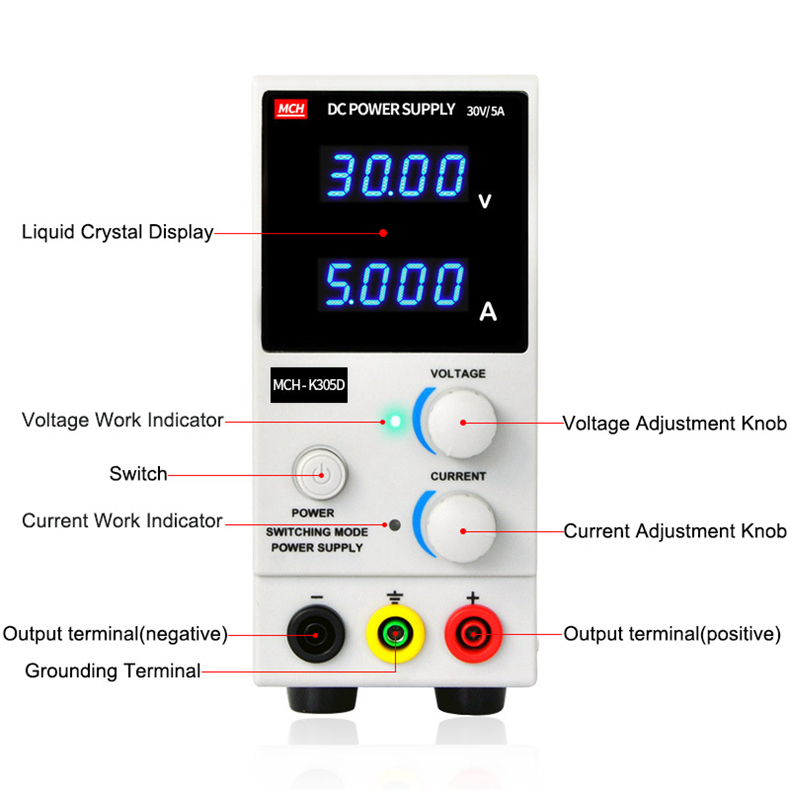

- Four-Digit Display: The current and voltage colors are differentiated to make the working data more precise.

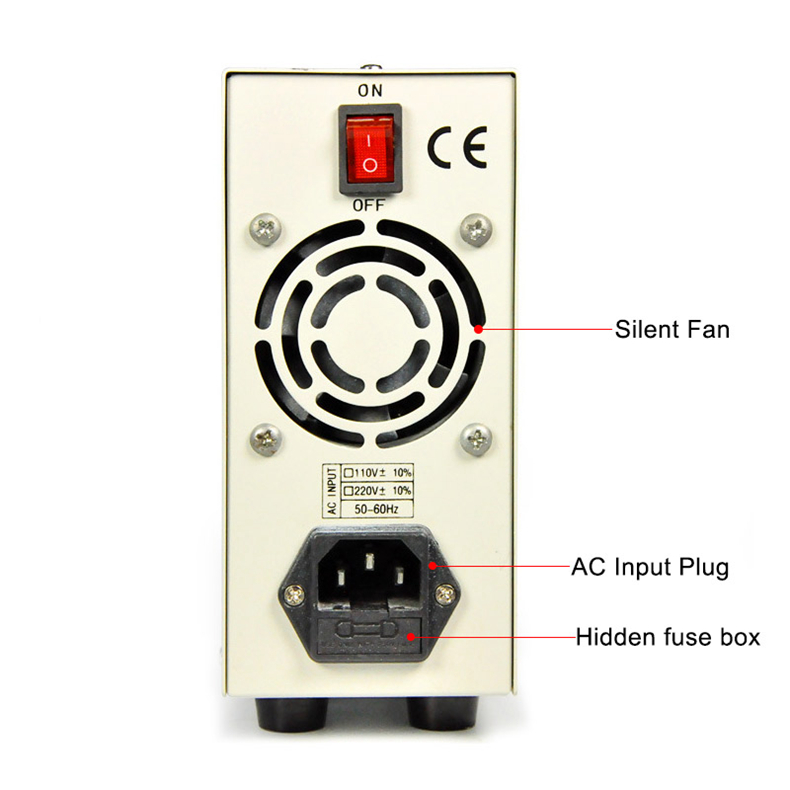

- Cooling Fan: Efficient intelligent cooling to protect the fuselage and extend the life and stability of the machine.
- Non-slip base: Use a non-slip base to avoid damage to the fuselage.
Specifications:

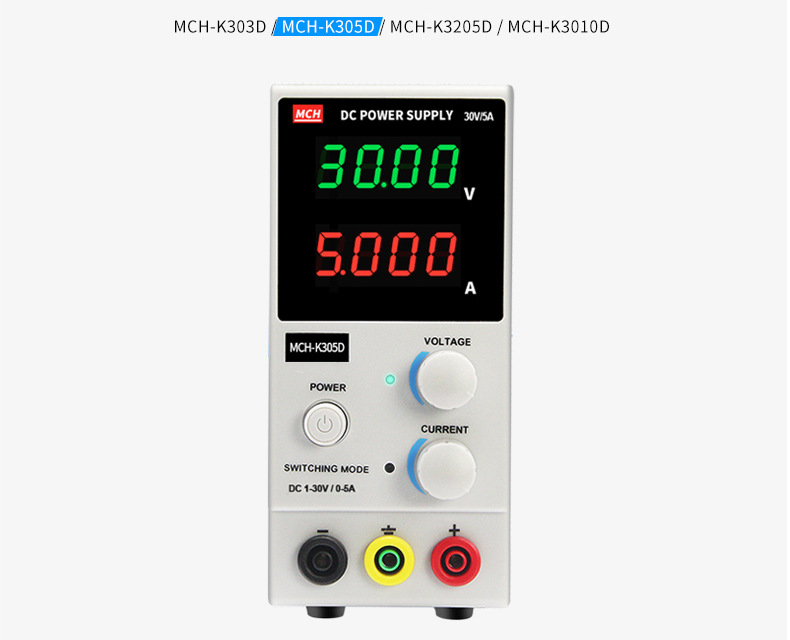

- Model No.: MCH-K305D
- Output Voltage: 0-30V
- Output Current: 0-5A
- Display: 4-digit
- Ripple & Noise(P-P): 50mV
- Input Voltage: 110V/220V, 50Hz-60Hz
- Current Display Accuracy: ±0.5%
- Voltage Display Accuracy: ±0.5%
- Protection: Current limit & short-circuit protections
- Operating Ambient: -10℃ to 60℃, 30% to 90% RH
- Product Size: 22 x 7 x 16 cm (DxWxH)
- Weight: About 2kg
Package Included:
- 1 x Set of DC Power Supply
